Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

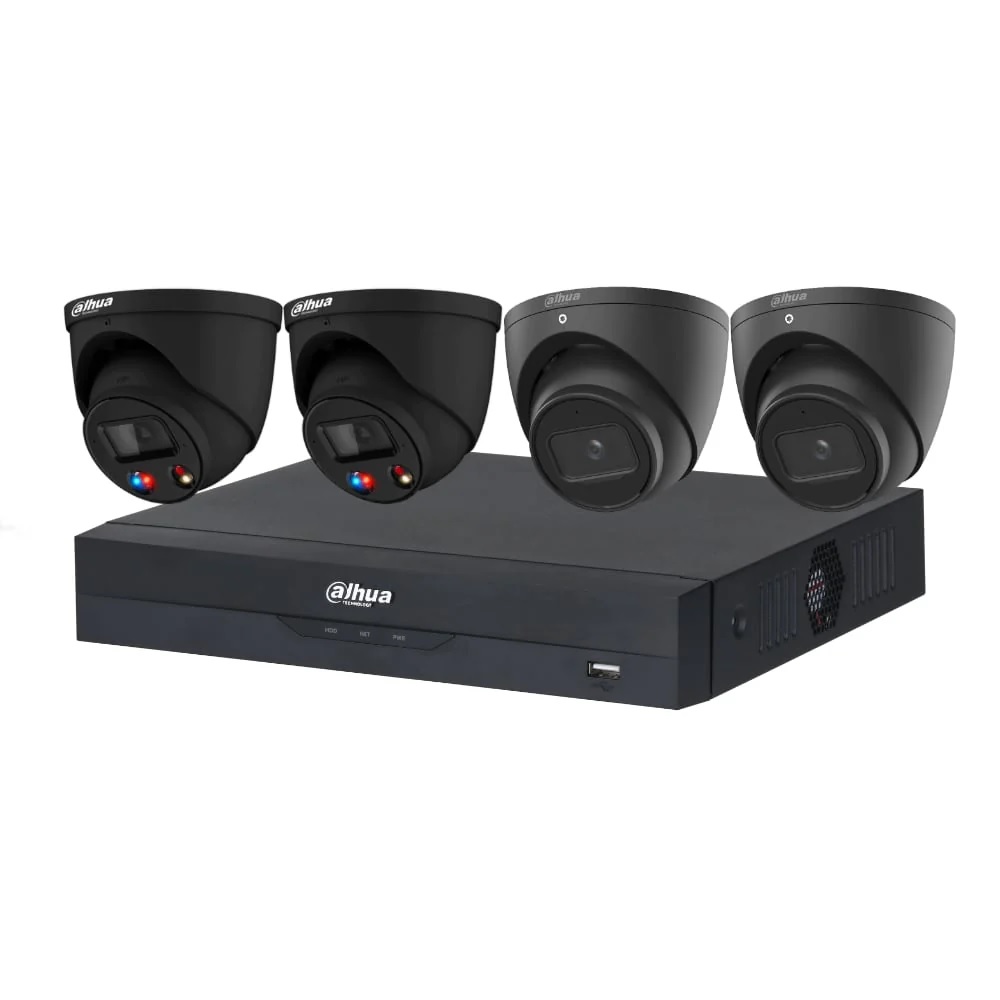

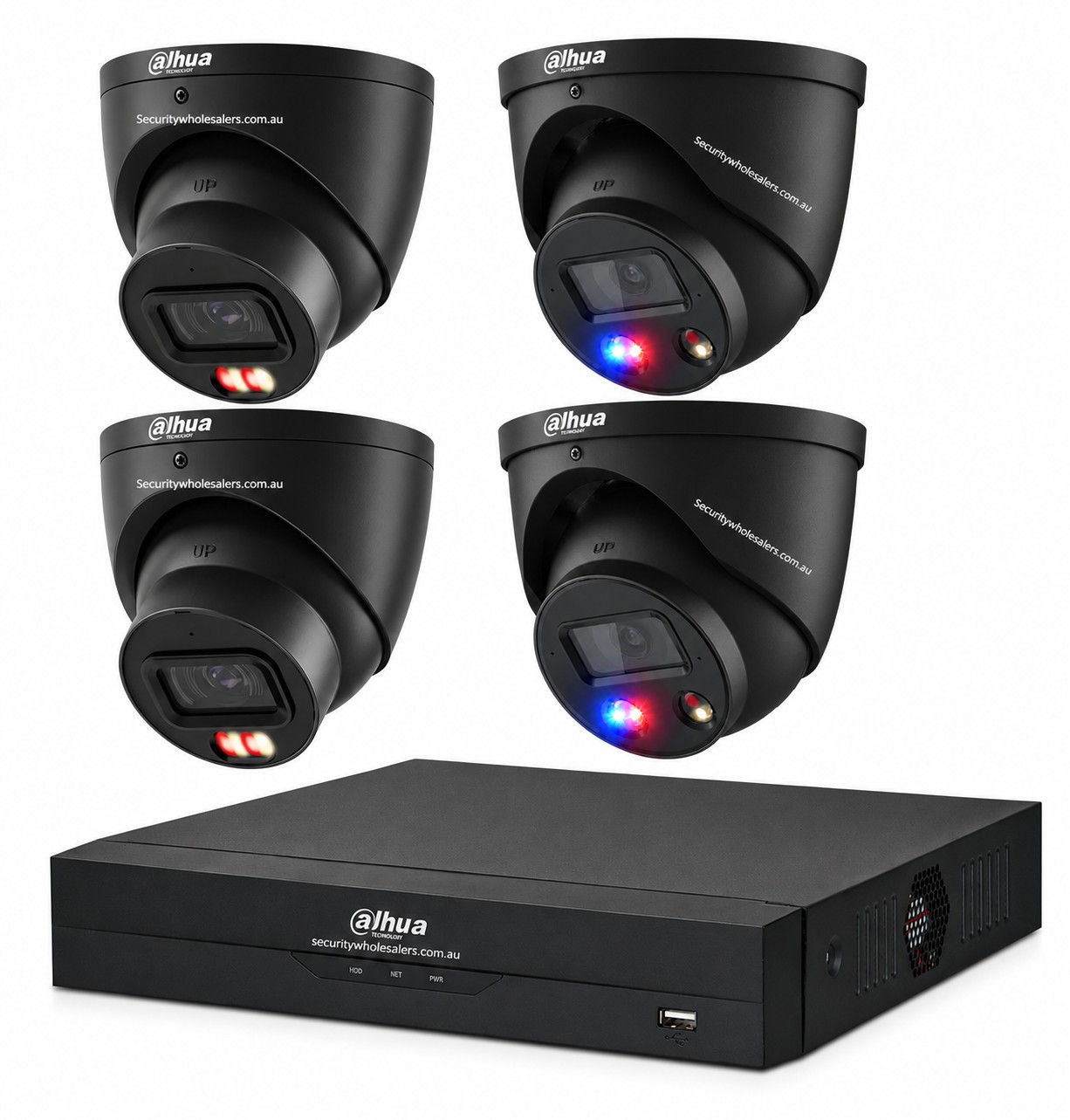

Dahua 8 MP + 8 Channels Kit:
In the Kit:
2 x 8MP Fixed Turret DH-IPC-HDW3866EMP-S-AUS-BLK
- 8MP 1/2.8” CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 8MP (3840 x 2160) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 30 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply facilitates installation.
- IP67 protection.
- SMD 4.0, AI SSA.
2 x 8MP TiOC Fixed Turret DH-IPC-HDW3849H-AS-PV-ANZ-BLK
- 8MP 1/2.8” CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 x 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- One press arming/disarming through alarm input.
1 x 8CH NVR DHI-NVR4108HS-8P-AI/ANZ
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
- Max. decoding capability: 16 ?? 1080p@30 fps. Supports adaptive decoding.
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
- Connected to the third-party network cameras.
- Security baseline 2.3.
This camera has SMD
Add Hard Drive If the system is purchased with a hard drive, it will be pre-installed in the NVR.
Image | Name | Price | Buy |
---|---|---|---|
3TB HDD - Surveillance HDD for DVRs & NVRs | $156.00 | ||
2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs | $130.00 | ||
6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR | $300.00 | ||
4TB HDD - Surveillance HDD for DVRs & NVRs | $156.00 | ||
8TB HDD - Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR | $430.00 |
Extra Accessories:
Image | Name | Price | Buy |
---|---|---|---|
Dahua DH-PFA130-E Dahua Water proof Junction Box | $21.00 | ||
Dahua DH-PFB204W Water-proof Wall Mount Bracket | $17.00 |
Cables:
Image | Name | Price | Buy |
---|---|---|---|

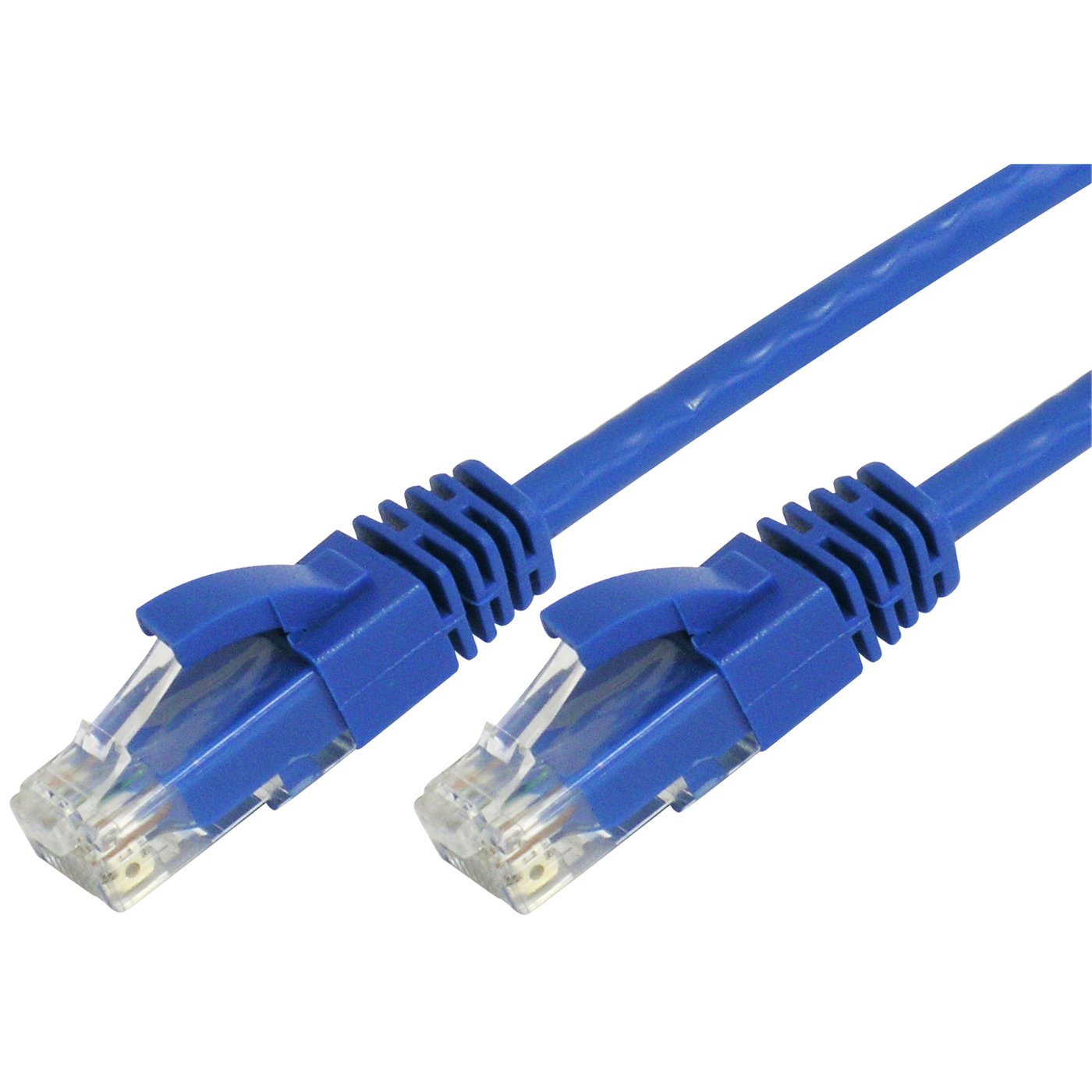

DAHUA CAT6 CABLE | $184.00 inc GST +3 Year Warranty & Support | ||
20M Cat6 Pre-made Blue | $29.80 inc GST +3 Year Warranty & Support | ||
30m Cat6 pre-made cable Blue | $40.00 inc GST +3 Year Warranty & Support | ||
10M Cat6 Pre-made Blue | $14.00 inc GST +3 Year Warranty & Support | ||
5M Cat6 pre-made cable Blue | $8.00 inc GST +3 Year Warranty & Support |
NIGHT TIME SAMPLE VIDEO – DAHUA HDW3866EMP – 2.8mm
AFTERNOON SAMPLE VIDEO – DAHUA HDW3866EMP – 2.8mm
MORNING SAMPLE VIDEO – DAHUA HDW3866EMP – Person Walking – 2.8mm
MORNING SAMPLE VIDEO – DAHUA HDW3866EMP – Car Driving- 2.8mm
How does SMD work? (this cam has SMD)
