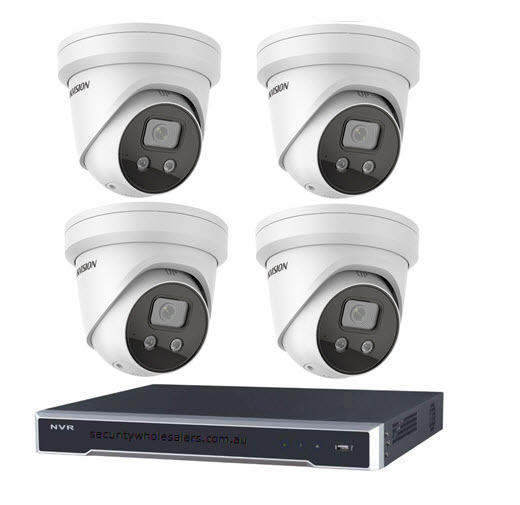

8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Cameras with Acusense Filter + 4CH NVR


4 x  8 MP Hikvision Outdoor Turret Cameras

Code/SKU: DS-2CD2386G2-I

Quick Specs: H.265+, 30m IR, 120dB WDR, IP67

Lens Options: 2.8mm / 4mm      Colours: White / Black (2.8mm only with black)





1 x 4 CH Hikvision PoE NVR

Code/SKU: HIK-7604NI-I1-4P or DS-7604NI-I1-4P (Latest 4CH NVR with Gui 4.0)

Quick Specs: 4ch PoE NVR, 40Mbps, 4 PnP Ports, 4K, VGA / HDMI, 1 HDD Bay + 3TB







$1,762.40 $2,203.00 inc GST +3 Year Warranty & Support

Please Select Lens Size *

If you require different lens or IR range for each camera in this kit (if the camera has options for it), please specify in the comments upon checkout. We will ship the right cameras to you.

Optional Upgrades

This will allow you to have more cams in future. Please be advised that 4 x 8MP cameras on a 4CH NVR will only work well on motion detection – not 24/7 recording. There are limitations with the NVR which would prevent it from recording 24/7. Suggest upgrading to an 8CH NVR if you plan to use it on a 24/7 basis.

Colour

Choose White or Black variant (If you select none, the default colour shipped will be white. Black is only available in 2.8mm and 4mm only)

Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

8MP 4K AcuSense WITHOUT Strobe Light / Audible Warning / Fixed Turret Network Camera (without mic)

Suitable for OUTDOOR

  • High quality imaging with 4K resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Water and dust resistant (IP67)

Lens

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m

Please be advised that 4 x 8MP cameras on a 4CH will only work well on motion detection – not 24/7 recording.
There are limitations with the NVR which would prevent it from recording 24/7. Suggest upgrading to an 8CH NVR if you plan to use it on a 24/7 basis.

Sample 8MP Hikvision Videos

DS-2CD2386G2-ISU/SL 8MP / 4K Night time test

DS-2CD2386G2-ISU/SL 8MP / 4K Night time test with sensor light on

NOTE If you’d like to experience full 8MP, you may have to click the gear icon and change the resolution to 4K, otherwise youtube may stream at a lower quality resolution.







Like this camera? Easily add to cart with your preferred mounts below:

ImageNamePriceBuy
Hikvision DS-1280ZJ-DM21 Junction Box$20.00 inc GST +3 Year Warranty & Support

Hikvision DS-1273ZJ-140 Bracket to suit G Series Turret cameras$35.00 inc GST +3 Year Warranty & Support

Hikvision DS-1271ZJ-140 Pendant Mount Bracket$87.00 inc GST +3 Year Warranty & Support
[/vc_column_text][/vc_column][/vc_row]

Image Sensor: 1/2″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON)
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Triple Streams: Yes
Max. Image Resolution: 3840 × 2160
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Third Stream: 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/HLC
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: 12 VDC, 0.7 A, max: 7.5 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: Φ 138.3 × 125 mm (5.4″ × 4.9″)
Weight: Camera: 725 g (1.6 lb.)
With package: 966 g (2.1 lb.)

3 Year Manufacturer Warranty

All Hikvision IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

(Note disk drives limited to 1 one year)
