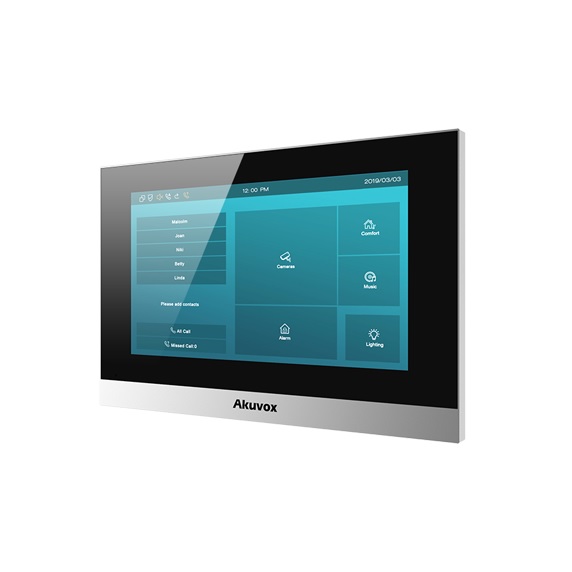

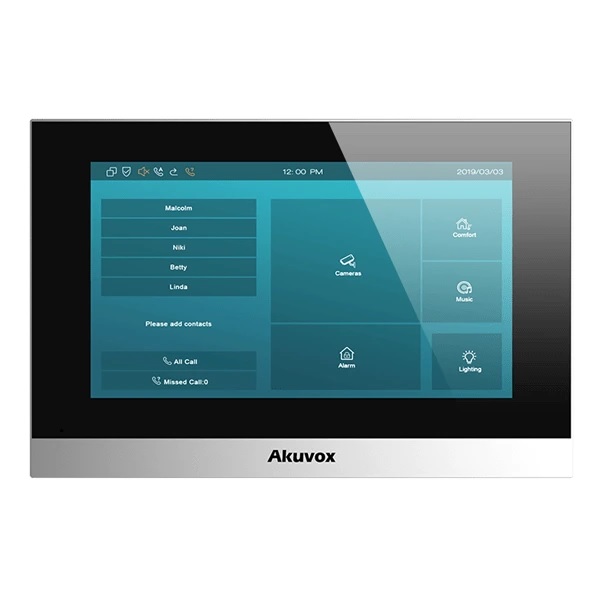

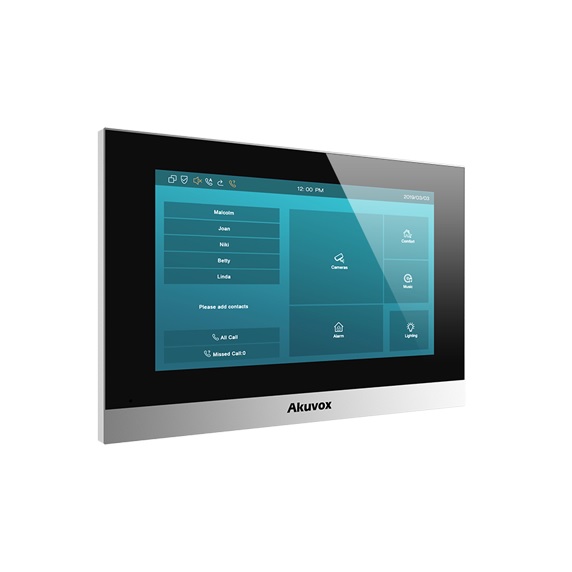

Akuvox C313W-2 2-Wire SIP Indoor Monitor with Wifi

The Akuvox C313W-2 2-Wire SIP Indoor Monitor is a versatile and compact device designed to enhance communication and security within residential and commercial settings. Featuring a 7-inch capacitive touch screen with a resolution of 800×480 pixels, it offers clear visuals and intuitive navigation. The monitor supports SIP v2.0 protocol, enabling seamless two-way communication with door stations and other intercom devices. Its 2-wire connectivity simplifies installation, making it ideal for retrofitting existing intercom systems without the need for extensive rewiring. The C313W-2 is equipped with Wi-Fi capabilities (IEEE802.11 b/g/n at 2.4GHz), allowing for flexible network integration and remote access. It also includes an RS485 port, relay outputs, and multiple I/O interfaces, providing versatility for various applications. The monitor’s slim design ensures it fits comfortably in limited spaces, while its energy-saving mode contributes to overall efficiency. Additionally, the C313W-2 supports HD video streaming in H.264 format, delivering high-quality video feeds for enhanced security monitoring. Its compatibility with Akuvox’s NS-2 network switch and R20A-2 door phone further expands its functionality, offering a comprehensive intercom solution. The monitor is designed for wall-mounted or desktop installation and operates within a temperature range of -10°C to +45°C, making it suitable for various environments. With its combination of advanced features, user-friendly interface, and flexible installation options, the Akuvox C313W-2 2-Wire SIP Indoor Monitor is a reliable choice for modern intercom systems.

Key Features:

  • Ultra-clear, stylish appearance
  • Thin profile and small footprint
  • 7-inch capacitive touch screen with energy saving mode
  • Two-way audio communication with other units in the 2-wire IP network
  • Powered by NS-2 or external source
  • Super long transmission distance via 2-wire cable
  • Support US or European electrical wall box mounting

Akuvox C313W-2 Datasheet

$316.00 inc GST +3 Year Warranty & Support

The Akuvox C313W-2 is a sophisticated 2-wire SIP indoor monitor designed to enhance residential communication and security systems. Featuring a sleek, ultra-clear appearance with a thin profile, it seamlessly integrates into modern home aesthetics. The device boasts a 7-inch capacitive touchscreen that delivers an intuitive user interface, facilitating effortless navigation through its features. Operating on a Linux-based system, the C313W-2 ensures reliable performance for audio and video communication with door phones via the SIP 2.0 protocol. This functionality enables residents to visually and audibly verify visitors before granting access, thereby enhancing household security. Additionally, the monitor supports two-way audio communication with other units within the 2-wire IP network, promoting efficient intra-household or inter-apartment communication.

One of the standout features of the C313W-2 is its adaptability to existing infrastructure, making it an ideal choice for upgrading outdated intercom systems without the need for extensive rewiring. The device can be powered either by the Akuvox NS-2 switch or an external 48V DC source, offering flexibility in installation. Its capability to transmit data over long distances via 2-wire cables ensures compatibility with various building layouts, accommodating transmission distances of up to 300 meters between devices. Furthermore, the monitor is equipped with Wi-Fi and Bluetooth connectivity, expanding its integration capabilities with other smart home devices. The inclusion of an energy-saving mode underscores its efficiency, while support for both US and European electrical wall box mounting enhances its versatility across different regions. These features collectively position the Akuvox C313W-2 as a comprehensive solution for modernizing residential intercom systems, providing enhanced security, convenience, and adaptability.

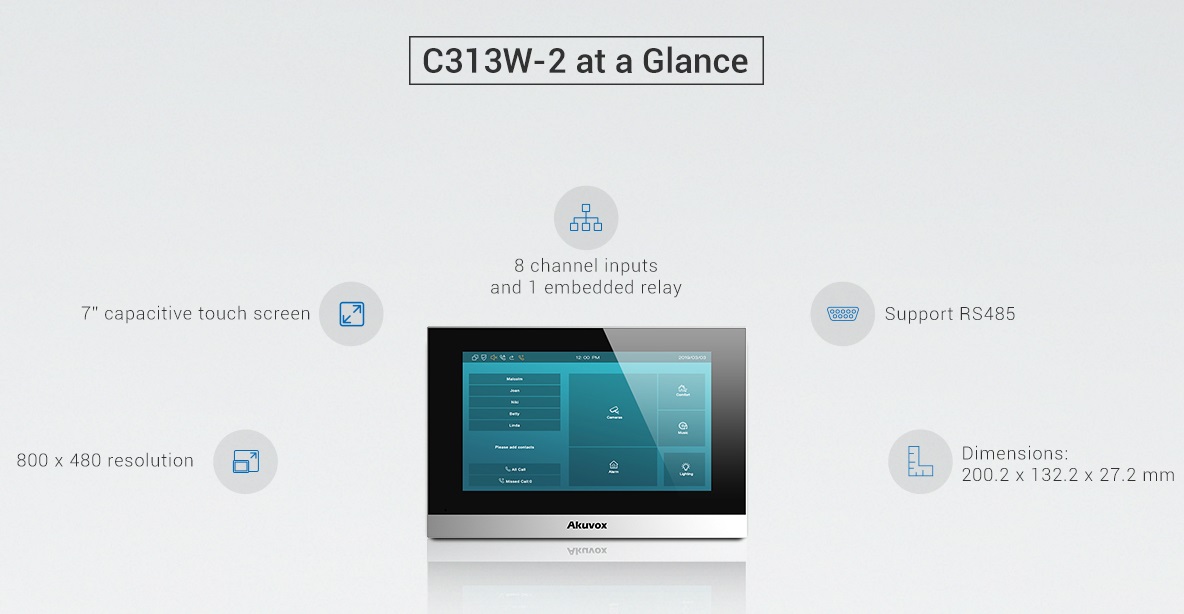

Akuvox C313W-2 2-Wire SIP Indoor Monitor Features
  • 7-Inch Capacitive Touch Screen: Provides a responsive interface with an 800×480 resolution for clear visuals.
  • Two-Way Audio Communication: Enables clear audio interactions with other units in the 2-wire IP network, utilizing Crystal Clear Audio technology.
  • Wi-Fi Connectivity: Supports IEEE802.11 b/g/n standards at 2.4GHz, allowing for wireless network integration.
  • Multiple I/O Ports: Equipped with 8 configurable alarm inputs, 1 bell input, 1 relay output, and an RS485 port for versatile integration.
  • SIP Protocol Support: Compatible with SIP v1 and v2 protocols, facilitating integration with various IP-based communication systems.
  • Energy-Saving Mode: Features an energy-efficient design to reduce power consumption during inactivity.
  • Super Long Transmission Distance: Capable of transmitting signals over long distances via 2-wire cables, making it suitable for retrofitting old villas and apartments.
  • Flexible Mounting Options: Supports both wall-mounted and desktop installations, compatible with US or European electrical wall boxes.
  • Remote Configuration and Maintenance: Allows for remote configuration, firmware upgrades, and system log access via a web management portal.
  • Integration with SmartPlus App: Enables push notifications and calls between devices through the SmartPlus mobile application, enhancing user accessibility.
Akuvox C313W-2 Specifications

Physical & Power

  • Front panel: Plastic
  • RAM / ROM: 64MB / 128MB
  • Display: 7 Inch TFT LCD
  • Screen: 7 Inch capacitive touch screen
  • Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
  • RS485 port: Support
  • Relay out: 1
  • Bell in: 1
  • I/O: 8
  • Microphone: -58dB
  • Speaker: 4Ω / 2W
  • 2-wire ports: 2 pair
  • Ethernet ports: 1xRJ45, 10/100Mbps adaptive
  • 48V DC connector: (if not using NS-2)
  • Installation: Wall-mounted & Desktop
  • Dimension: 200.2×132.2×27.2mm
  • Working Humidity: 10~90%
  • Working Temperature: -10°C ~ +45°C
  • Storage Temperature: -20°C ~ +70°C

Touch Screen Display

  • Display Mode: Normally white, Transmissive
  • LCD Size: 7 inch (Diagonal)
  • Resolution: 800×480
  • Contrast ratio: 500:1
  • Luminance: 220 cd/m²
  • Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
  • Touch Screen: Projected capacitive

Audio

  • SIP versions: SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: Out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation: Supported

Video

  • Streaming formats: H.264

Networking

  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs: Includes door access logs

Application Scenario

  • Old villas retrofit
  • Old apartment retrofit

SKU: C313W-2 Categories: ,
