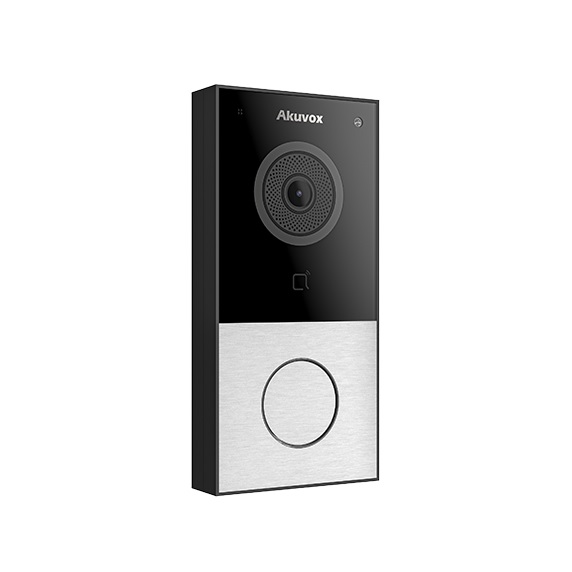

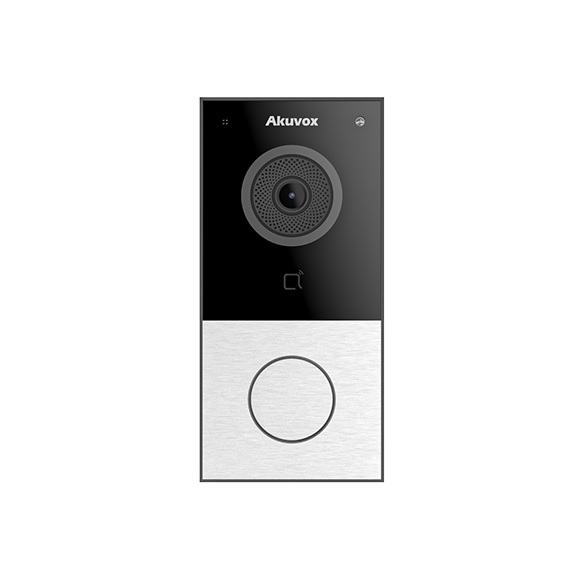

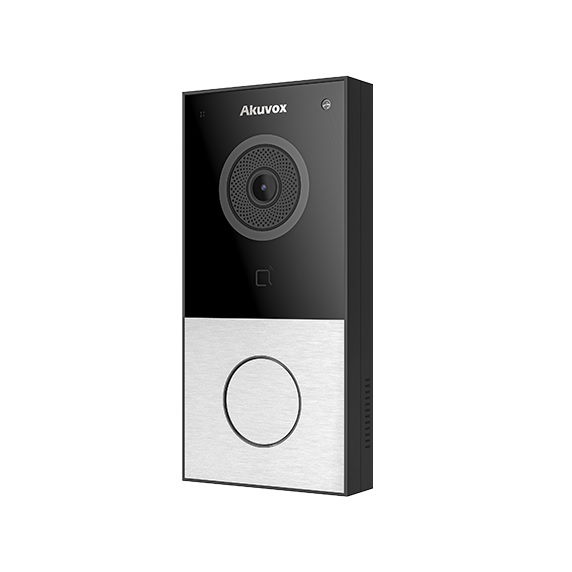

Akuvox E12S SIP Video Door Phone

The Akuvox E12S Surface Mount Video Intercom is a compact and stylish single-button SIP video door phone designed to enhance security and convenience for various front door applications, including houses, apartments, and condos. Despite its slim profile, the E12S is equipped with advanced features such as mobile access and wireless communication, allowing users to monitor and interact with visitors remotely via their smartphones. The device supports real-time two-way communication and live camera viewing, ensuring seamless interaction with visitors. Its high-resolution camera, complemented by automatic lighting, provides clear video feeds, while the integrated RFID card reader and Bluetooth Low Energy (BLE) support offer flexible access control options. The E12S is built to withstand outdoor conditions, boasting an IP65 rating for water and dust resistance, and operates effectively within a wide temperature range, making it a reliable choice for various environments.

In addition to its robust functionality, the Akuvox E12S has been recognized for its exceptional design, receiving prestigious awards such as the Good Design Award (G Mark), Red Dot, and iF Design Award. These accolades reflect the device’s comprehensive design values and principles aimed at enriching lives, industries, and society. The E12S is compatible with various SIP devices and can be integrated into existing security systems, offering flexibility for different installation requirements. Its surface-mount design ensures straightforward installation, and the device can be powered via Power over Ethernet (PoE) or a 12V DC connector, accommodating diverse power supply setups. Overall, the Akuvox E12S Surface Mount Video Intercom combines advanced technology, durability, and award-winning design to provide a versatile and reliable solution for modern access control needs.

The Akuvox E12S is a surface-mounted video intercom designed for secure and efficient access control in residential and commercial settings. Its key features include:

• High-Definition Video Communication: Equipped with a 2-megapixel camera, the E12S delivers clear video feeds for enhanced visitor identification.
• SIP Protocol Support: The device utilizes the Session Initiation Protocol (SIP) for seamless integration with various IP phone systems and SIP-based communication networks.
• Surface-Mount Design: The E12S is designed for surface mounting, simplifying installation on walls or other flat surfaces without the need for extensive modifications.
• Weather Resistance: Built to withstand various environmental conditions, the intercom is suitable for both indoor and outdoor installations.
• PoE (Power over Ethernet): The device supports PoE, allowing for a single Ethernet cable to provide both power and data connectivity, reducing installation complexity.
• Wide-Angle Lens: The camera features a wide-angle lens to capture a broader view of the entrance area, ensuring comprehensive monitoring.
• Two-Way Audio Communication: The E12S facilitates clear two-way audio, enabling effective communication between visitors and residents or security personnel.
• Integration Capabilities: It can be integrated with various access control systems, enhancing security measures by controlling door locks and other entry mechanisms.
• Night Vision: The intercom is equipped with infrared LEDs to provide clear video footage even in low-light conditions, ensuring 24/7 surveillance capabilities.
• Remote Access: Users can monitor and communicate with visitors remotely via connected devices, offering convenience and enhanced security management.

These features make the Akuvox E12S a versatile and reliable choice for secure access control and visitor management in various environments.

Akuvox E12S Specifications

Physical & Power

• Body Material: Plastic
• Camera: 2M pixels, automatic lighting
• Button: 1 call button with backlight
• Wiegand Port: Support
• RF Card Reader: 13.56MHz
• Light Sensor: 1
• Relays Out: 1
• Inputs: 2
• Micro SD Card Slot: 1
• Microphone: -36dB
• Speaker: 8Ω / 1.5W
• Ethernet Port: RJ45, 10/100Mbps adaptive
• BLE: Yes
• Vandal Alarm: Yes
• Power Supply:
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Power: 12V / 1A
• Water-proof & Dust-proof: IP65
• Installation: Wall-mounted
• Size: 146x70x23mm
• Working Humidity: 10~90%
• Working Temperature: -40°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

Audio

• SIP Versions: SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband Audio Codec: G.711a, G.711μ, G.729
• Broadband Audio Codec: G.722
• DTMF:
  • In-band
  • Out-of-band DTMF (RFC2833)
  • SIP Info
• Additional Features:
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator

Video

• Sensor: 1/2.7”, CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video Codec: H.264, H.265
• Video Resolution: Up to 1920x1080p
• Max Image Transfer Rate: 1080p – 25fps
• Viewing Angle: 123° (H) / 69° (V)
• Lighting:
  • White LEDs for picture lighting during dark hours
  • Internal light sensor
• Additional Features:
  • Auto-night mode with LED illumination
  • White balance: auto
  • Minimum illumination: 0.1LUX

Door Entry Feature

• Relays Controlled: Individually by DTMF tones
• Camera: Permanently operational
• Additional Features:
  • White LEDs for night illumination
  • Auto-night mode
  • DTMF relay control

Networking & Protocol

• Supported Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

• Provisioning: Auto-provisioning
• Management: Web management portal
• Backup/Restore: Configuration backup/restore
• Log Features:
  • Entry log export
  • System logs (including door access logs)
• Access Control: Access table export/import
• Firmware: Upgrade support

Application Scenario

• Apartment/flat intercom with door access control
• Remote site entry over the Internet
