Akuvox EC33 Elevator Access Controller
The Akuvox EC33 is an IP-based elevator access controller designed to enhance security in multifamily and office buildings. It manages elevator access through 32 relay outputs, expandable to 64 with an additional expansion board, allowing precise control over floor access. The EC33 seamlessly integrates with all Akuvox intercoms and access control terminals, facilitating a unified building security system. Administrators can remotely configure and manage the device via the Akuvox cloud platform, streamlining system maintenance and updates. The controller supports up to 20,000 cardholders and logs up to 100,000 events, ensuring comprehensive access tracking. It features a fire alarm input for emergency door release or standard elevator commands, enhancing safety protocols. Additionally, the EC33 supports Wiegand 26/34 protocols, enabling connectivity with third-party card readers for card-based elevator entry control. Its standard 10/100M Ethernet communication ensures reliable network performance. The device’s compact dimensions (320 x 270 x 75 mm) and support for PoE (IEEE802.3af) simplify installation and power management. Operating within a temperature range of up to 45°C and humidity levels between 10% and 90%, the EC33 is suitable for various environmental conditions. By linking with Akuvox’s SmartPlus mobile app or indoor monitors, users can grant access to visitors and guide them to designated floors, enhancing visitor management and overall building security.
Key Features:
- High-capacity flash chip supporting up to 20,000 cardholders and 100,000 records
- Each panel supports 32 outputs and can connect to an expansion panel for up to 64 outputs
- One RS485 port for connecting an expansion panel
- Emergency door release input for fire alarm linkage or elevator usage during emergencies
- Supports one Wiegand reader with Wiegand 26/34 protocol
- Compatible with Akuvox intercom devices via HTTP mode
- Standard 10/100M TCP/IP communication
$1,023.00 inc GST +3 Year Warranty & Support
The Akuvox EC33 is an IP-based elevator access controller designed to enhance building security and streamline access management. It features 32 relay outputs for controlling elevator buttons, with the option to expand to 64 outputs via an additional expansion board. This flexibility makes it suitable for multifamily residences and office buildings requiring comprehensive access control. The EC33 integrates seamlessly with Akuvox intercoms and access control terminals, enabling unified management of building entry and elevator access. Administrators can remotely configure and manage the system through the Akuvox cloud platform, facilitating efficient deployment, upgrades, and maintenance. The device supports up to 20,000 cardholders and can log up to 100,000 events, ensuring robust data handling for large user bases.
In terms of security features, the EC33 includes a fire alarm input for emergency elevator release or routine commands, enhancing occupant safety during critical situations. It supports TCP/IP communication and is equipped with an RS485 port for connecting expansion controllers, ensuring reliable and scalable network integration. The controller also accommodates third-party card readers via its Wiegand interface, offering flexibility in credential management. Power options include a 100–240VAC input or Power over Ethernet (PoE), providing adaptability to various installation environments. With its comprehensive feature set and integration capabilities, the Akuvox EC33 serves as a robust solution for modernizing elevator access control systems, enhancing both security and convenience in building management.

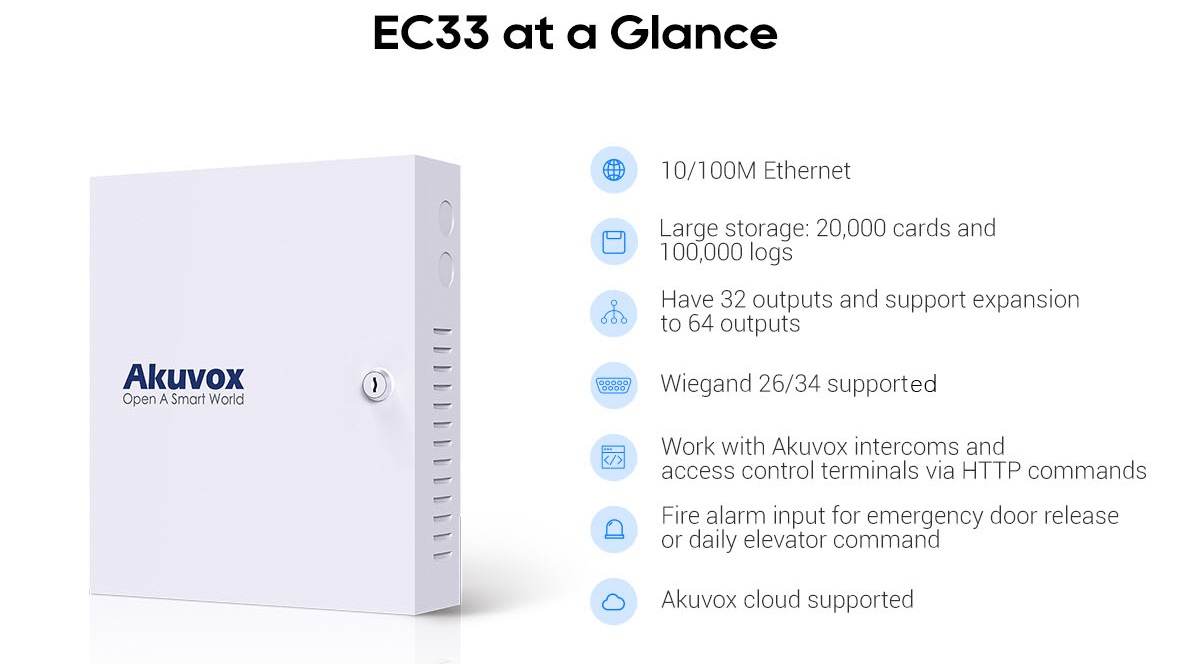

Akuvox EC33 Elevator Access Controller Features
- IP-Based Communication: Utilizes standard 10/100M Ethernet for reliable TCP/IP communication.
- Large Storage Capacity: Supports up to 20,000 cardholders and can log up to 100,000 events, ensuring comprehensive access records.
- Expandable Outputs: Comes with 32 relay outputs, expandable to 64 with an additional expansion controller, allowing control over multiple floors.
- RS485 Port: Includes an RS485 port for connecting to an expansion controller, facilitating system scalability.
- Fire Alarm Integration: Features a fire alarm input to support emergency door release or normal lift commands during emergencies.
- Wiegand Interface: Supports Wiegand 26/34 protocol, enabling integration with third-party card readers for flexible access control solutions.
- Daily Elevator Command: Allows for the scheduling of elevator commands, enhancing operational efficiency.
- Akuvox Cloud Support: Compatible with Akuvox Cloud, enabling remote management, configuration, and maintenance of the system.
- PoE Support: Supports Power over Ethernet (PoE), simplifying installation by reducing the need for separate power supplies.
- Seamless Integration: Works with other Akuvox devices using HTTP commands, ensuring a cohesive and efficient access control system.
These features make the Akuvox EC33 a versatile and robust solution for managing elevator access in multifamily residences and office buildings.
Akuvox EC33 Specifications
Physical & Power
- Communication: TCP/IP
- RS485: Support
- Relays out: 32
- Wiegand: Wiegand 26/34
- RJ45 port: 1
- Fire alarm input: 1
- Power supply: 100～240VAC Input or PoE
- PoE: IEEE802.3af PoE
- Rated power: ≤10W
- Working temperature: <45℃
- Working humidity: 10%~90%
- Dimension: 320 x 270 x 75 (mm)
