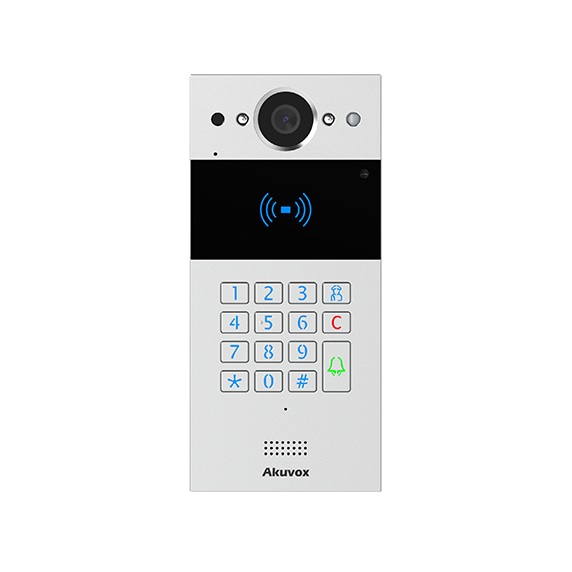

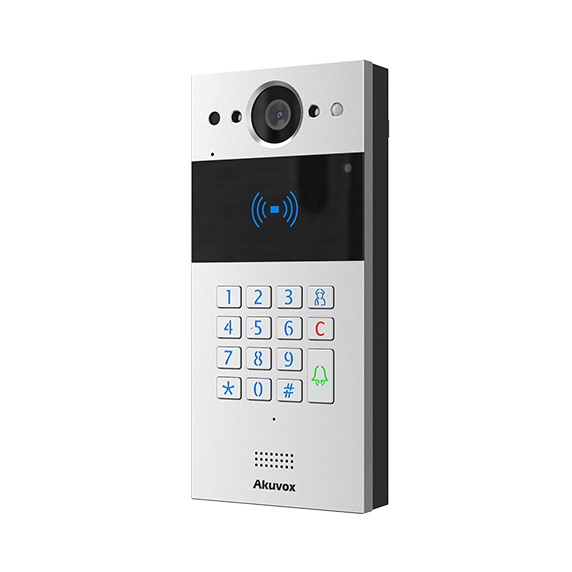

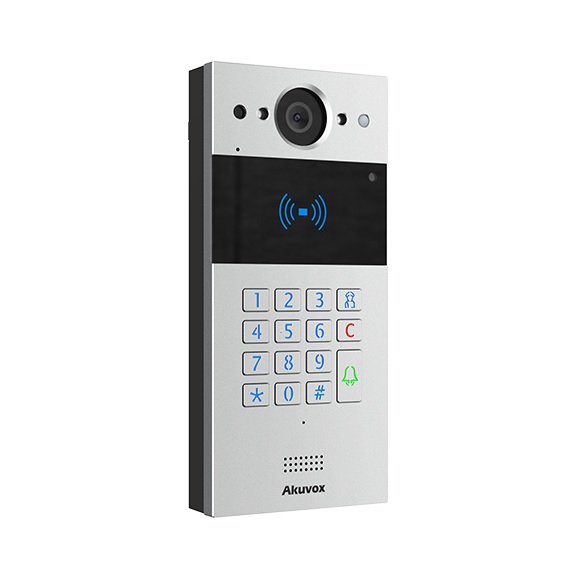

Akuvox R20K Palm-Size On Wall IP Video Door Phone
The Akuvox R20K is a compact SIP video doorphone designed for outdoor use, featuring a durable aluminum alloy front panel and an IP65 rating for water and dust resistance. Its 2-megapixel camera, equipped with automatic lighting and high-intensity IR LEDs, ensures clear video quality even in low-light conditions. The device supports multiple audio codecs, including G.711a, G.711μ, G.729, and G.722, providing compatibility with various systems. Its numeric keypad facilitates secure access control, making it suitable for apartment and office buildings. The R20K offers flexible installation options, with both flush-mounted and wall-mounted configurations, and operates reliably in temperatures ranging from -30°C to +65°C. Additionally, it features a built-in RF card reader compatible with 13.56MHz and 125kHz frequencies, enhancing its access control capabilities. The device supports Power-over-Ethernet (PoE) for simplified installation and includes two relay outputs and two inputs for integration with other security systems. Its wide viewing angle of 110° horizontal and 58° vertical ensures comprehensive coverage of the entrance area. The R20K is compatible with third-party video components, such as NVRs, and supports protocols like IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, and ARP, ensuring seamless integration into existing network infrastructures. Its compact design does not compromise on functionality, making the Akuvox R20K a versatile and reliable choice for secure, high-quality video intercom solutions in various building environments.
Key Features:
- Enables audio and visual monitoring of doors/gates, increasing security for residential or commercial premises.
- Utilizes the latest H.264, H.265 video and G.722 audio codecs for high-quality video and audio clarity.
- Supports both audio and video communication with IP phones, mobile clients, or softphones.
- Offers Power-over-Ethernet (PoE, IEEE802.3af) or 12VDC power options (supply not included).
- Improves productivity by eliminating the need for personnel to be physically stationed at the door or gate.
- Speeds up response times for visitors, delivery staff, and service personnel requiring access.
- Provides premium audio and video quality.
- Enables real-time entrance monitoring.
- Allows remote door opening.
- Offers multiple access methods.
- Supports SIP, ONVIF, Wiegand, PoE, and IP65 standards.
$581.00 inc GST +3 Year Warranty & Support
The Akuvox R20K is a compact SIP video doorphone designed for outdoor use, making it an ideal choice for apartment and office buildings. Its space-saving design features a numeric keypad, allowing for secure access control and seamless integration into various security systems. The device is equipped with a 2-megapixel camera that provides clear video communication, enhancing visitor identification and overall security. Its durable construction ensures reliable performance in diverse environmental conditions, making it a robust solution for outdoor installations. With its advanced design and functionality, the R20K meets modern security and communication needs efficiently.
In addition to its robust hardware, the R20K supports multiple audio codecs, including G.711a, G.711μ, G.729, and G.722, ensuring high-quality audio communication. It also features DTMF support for in-band, out-of-band (RFC2833), and SIP Info, enhancing its compatibility with various systems. The device’s networking capabilities include support for IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, and ARP protocols, ensuring seamless integration into existing network infrastructures. The R20K’s deployment and maintenance are streamlined through features like auto-provisioning, a web management portal, web-based packet dump, configuration backup and restore, entry log export, access table export and import, firmware upgrades, and system logs, including door access logs. These features make the device versatile and user-friendly, catering to modern security demands.
Akuvox R20K Palm-Size Doorphone Certified Features
- Design and Durability: Constructed with an aluminum alloy front panel, the R20K offers robust protection against environmental elements. It boasts an IP65 rating, ensuring resistance to dust and water ingress, making it suitable for various weather conditions.
- Display and Camera: Equipped with a 2-megapixel camera featuring automatic lighting adjustments, the R20K ensures clear video capture in diverse lighting conditions.
- User Interface: The device includes a numeric keypad with additional buttons, facilitating easy dialing and access control functionalities.
- Connectivity and Integration: Supporting Power over Ethernet (PoE), the R20K simplifies installation by reducing the need for separate power cables. It also features Wiegand and RS485 interfaces, allowing seamless integration with existing access control systems.
- Environmental Specifications: The R20K operates effectively within a temperature range of -30°C to +65°C and can withstand storage temperatures from -40°C to +70°C. It functions optimally in humidity levels between 10% and 90%.
This doorphone is designed to deliver a balance of functionality, durability, and ease of use, making it ideal for various entry-point security applications.
Akuvox R20K Specifications
Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz & 125kHz
- Relays out: 2
- Inputs: 2
- Microphone: -40dB
- Speaker: 42Ω / 3W
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Water-proof & Dust-proof: IP65
- Installation: Flush-mounted or Wall-mounted
- Flush-mounted DIM: 226x108x52mm
- Wall-mounted DIM: 185x85x29mm
- Working Humidity: 10 ~ 90%
- Working Temperature: -30°C ~ +65°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p
- Video codec: H.265&H.264
- Video resolution: up to 1080p
- Max. image transfer rate: 720p – 30fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible with 3rd-Party video components, e.g., NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Office doorphone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
