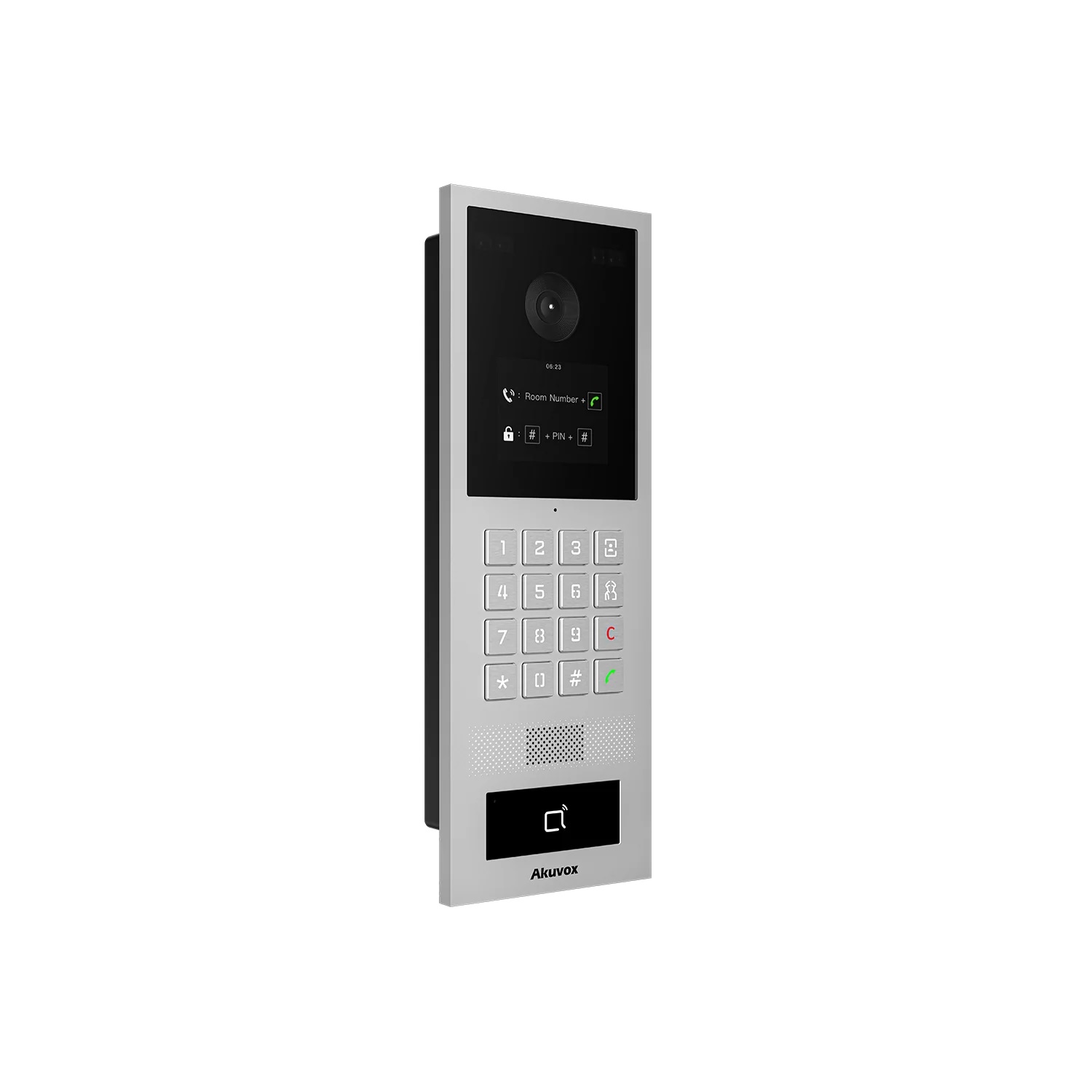

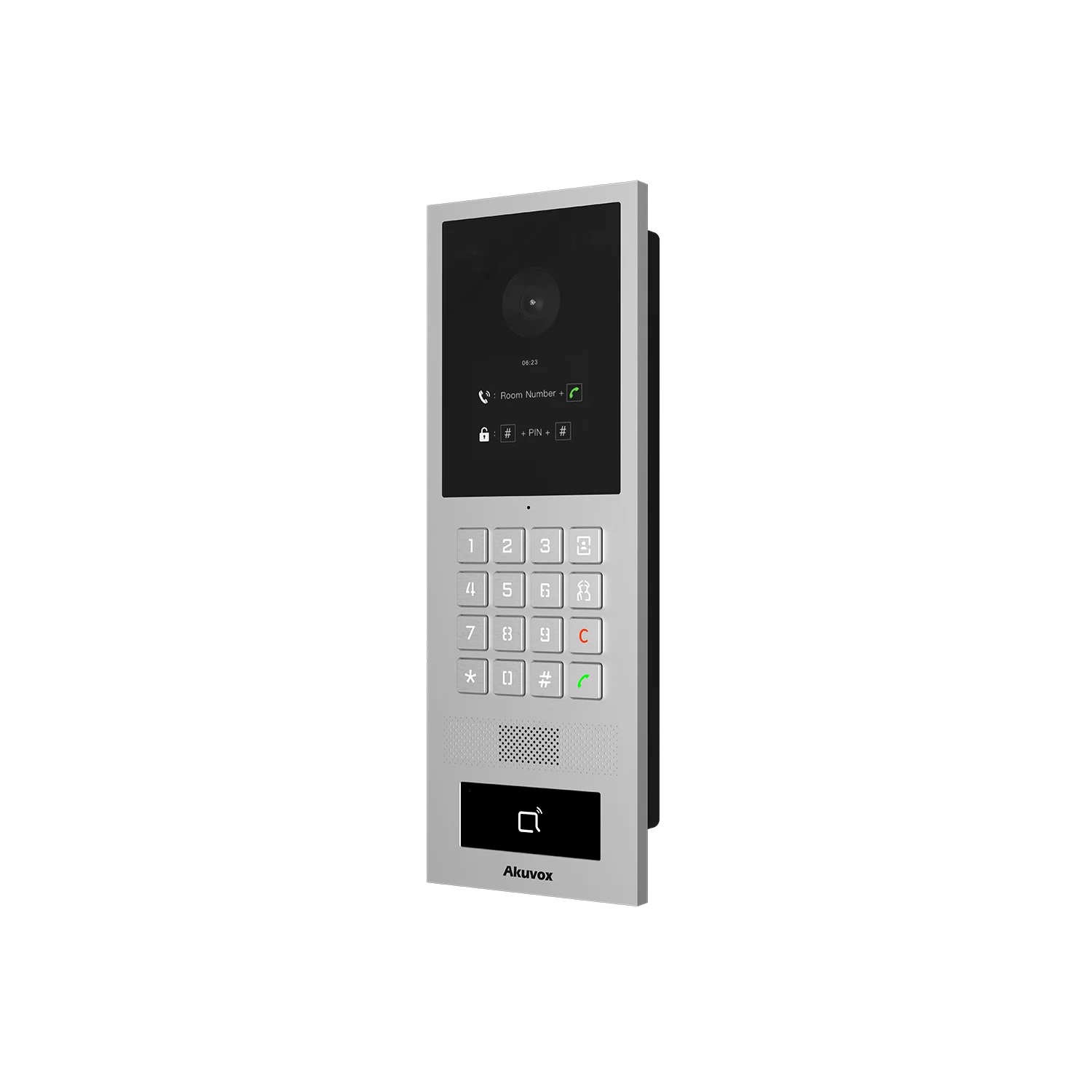

Akuvox S532 SIP 2.8″ Keypad Linux Video Door Phone

The Akuvox S532 is a sophisticated SIP video door phone that seamlessly integrates analog and IP technologies, making it an ideal choice for upgrading traditional intercom systems. Its sleek design features a durable aluminum front panel with a 2.8-inch color LCD display, providing a modern aesthetic suitable for various architectural styles. The device is equipped with a 2-megapixel camera offering wide viewing angles of 130° horizontally and 90° vertically, ensuring comprehensive coverage of the entrance area. Additionally, the S532 supports multiple access control methods, including PIN codes, RFID cards (13.56MHz and 125kHz), NFC, and Bluetooth, catering to diverse user preferences and enhancing security.

Designed to withstand harsh environmental conditions, the S532 boasts an IP66 weatherproof rating and IK08 impact resistance, ensuring reliable performance in both residential and commercial settings. Its smart motion detection feature provides precise alerts, enhancing security by monitoring activity at the entrance. The device supports SIP protocol for dependable two-way voice and one-way video communication, and complies with the ONVIF standard for seamless integration with network surveillance systems. Installation is flexible, with options for flush or surface mounting to suit different site requirements. Operating on a Linux-based system, the S532 ensures stability and reliability for users seeking a robust and versatile door communication solution.

Akuvox S532 Video Door Phone Features

• Durable Construction: The S532 boasts an IP66 rating for water and dust resistance and an IK08 rating for vandal resistance, ensuring reliable performance in harsh conditions.
• High-Resolution Camera: Equipped with a 2-megapixel camera offering wide viewing angles of 130° horizontally and 90° vertically, it provides clear video surveillance of entry points.
• Multiple Access Methods: Supports various access control methods, including PIN codes via the numeric keypad, RFID cards (13.56MHz & 125kHz), NFC, and Bluetooth (BLE), catering to diverse user preferences.
• Smart Motion Detection: Features advanced motion detection with precision alerting, enhancing security by monitoring activity near the entrance.
• Seamless Integration: Compatible with both IP and analog intercom systems, facilitating easy upgrades of existing infrastructure without extensive rewiring.
• SIP Protocol Support: Utilizes the SIP protocol to provide reliable two-way voice and one-way video communication, ensuring clear interactions between visitors and residents.
• ONVIF Compliance: Adheres to the ONVIF standard, allowing for easy integration with network surveillance systems for comprehensive security solutions.
• User-Friendly Display: Features a 2.8-inch color LCD display that presents information clearly, enhancing user interaction and accessibility.
• Flexible Installation Options: Offers both flush-mounted and wall-mounted installation methods, providing adaptability to various building structures and aesthetic preferences.
• Wide Operating Temperature Range: Designed to operate effectively in temperatures ranging from -40°C to +60°C, making it suitable for diverse environmental conditions.

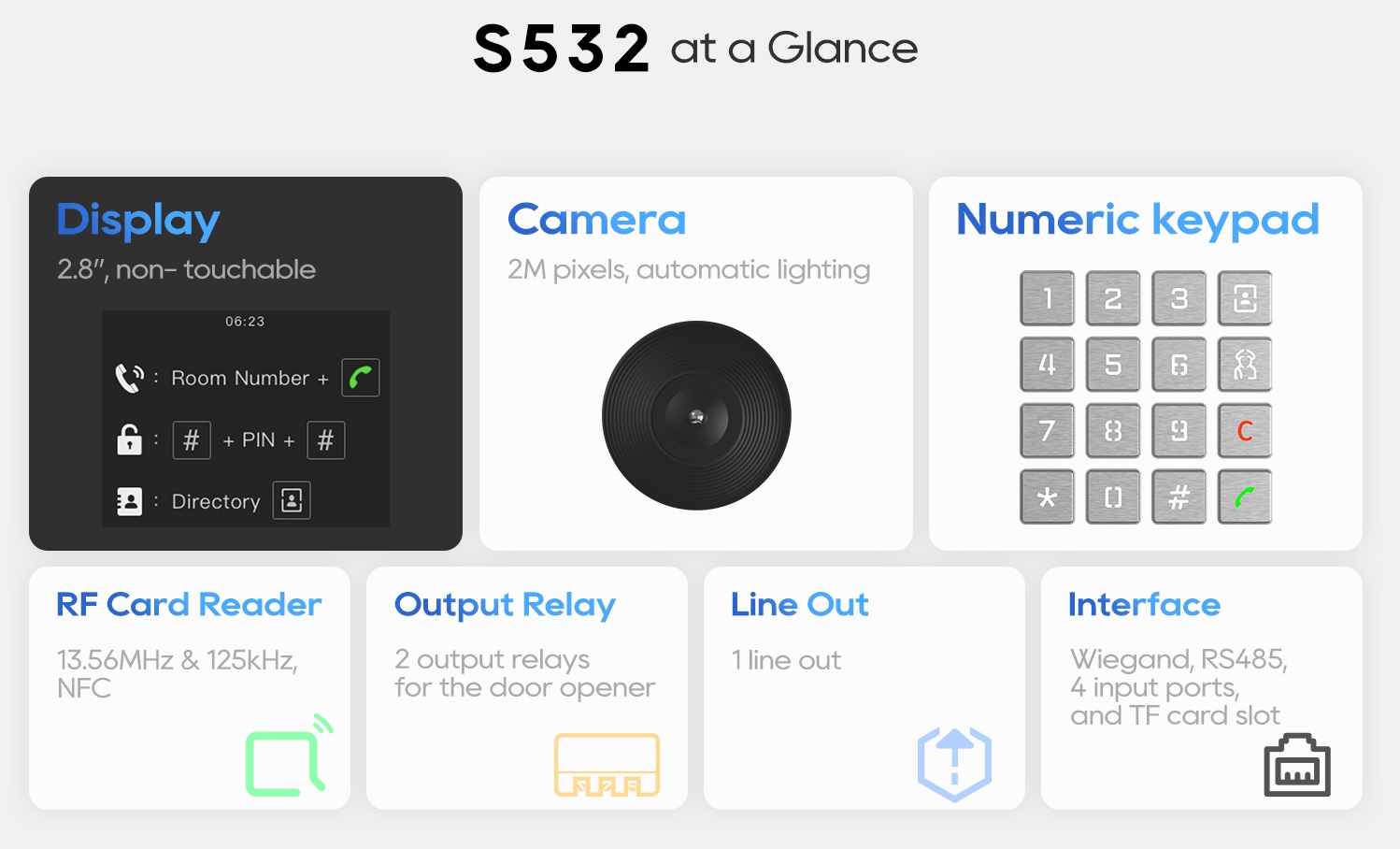

Akuvox S532 Specifications

Physical & Power

• Front Panel: Aluminum
• Camera: 2M pixels, automatic lighting
• Display: 2.8 Inch
• Numeric Keypad: With extra buttons
• Light Sensor: Support
• Motion Sensor: Support
• Wiegand Port: Support
• RS485 Port: Support
• Line Out: Support
• BLE: Support
• RF Card Reader: 13.56MHz & 125kHz, NFC
• Relays Out: 2
• Inputs: 4
• Microphone: 1
• Speaker: 1
• TF Card Slot: 1
• Reset: Support
• Tamper Alarm: Support
• Ethernet Port: RJ45, 10/100Mbps adaptive
• 802.3at Power-over-Ethernet
• IP Rating: IP66
• IK Rating: IK08
• Installation: Flush-mounted & Wall-mounted
• Size: 310x106x37.8mm
• Working Humidity: 10~90%
• Working Temperature: -40°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

Audio

• SIP Versions: SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband Audio Codec: G.711a, G.711μ
• Broadband Audio Codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video

• Sensor: 1/2.8”, CMOS
• Pixels: CIF, VGA, 4CIF, 720p, 1080p
• Video Codec: H.264
• Video Resolution: Up to 1920x1080p
• Max. Image Transfer Rate: 1080p – 30fps
• Viewing Angle: 130°(H) / 90°(V)
• High Intensity IR LEDs: For picture lighting during dark hours with internal light sensor
• Compatibility: 3rd-party video components, e.g., NVRs

Door Entry Feature

• Relays: Controlled individually by DTMF tones
• Camera: Permanently operational
• Auto-Night Mode: With LED illumination
• White Balance: Auto
• Minimum Illumination: 0.1LUX

Networking & Protocol

• Supported Protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

• Auto-Provisioning
• Web Management Portal
• Web-Based Packet Dump
• Configuration Backup/Restore
• Entry Log Export
• Access Table Export/Import
• Firmware Upgrade
• System Logs: Include door access logs

Application Scenario

• Use Case: Office door phone with on-site or hosted IP-PBX
• Remote Access: Remote site entry over the Internet
