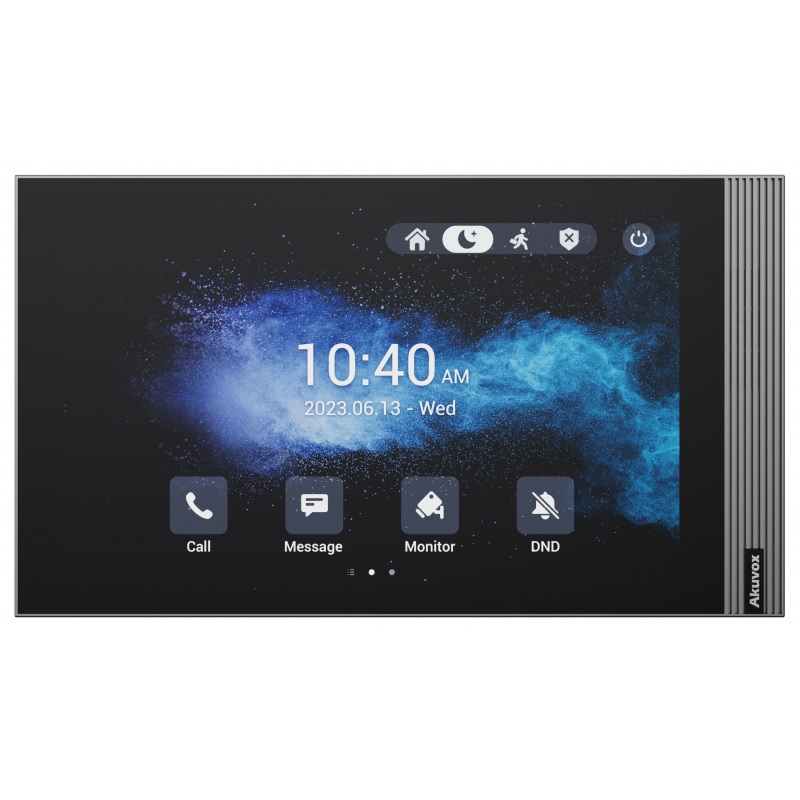

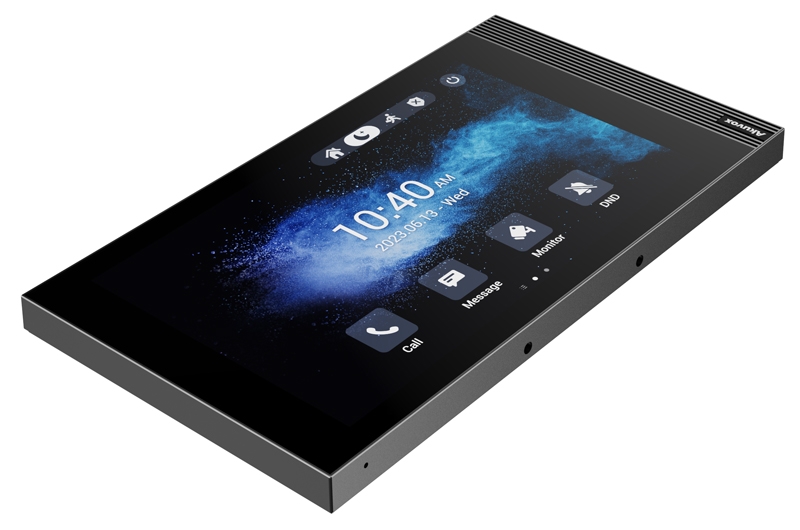

Akuvox S562 7″ Indoor Touchscreen Answering Panel

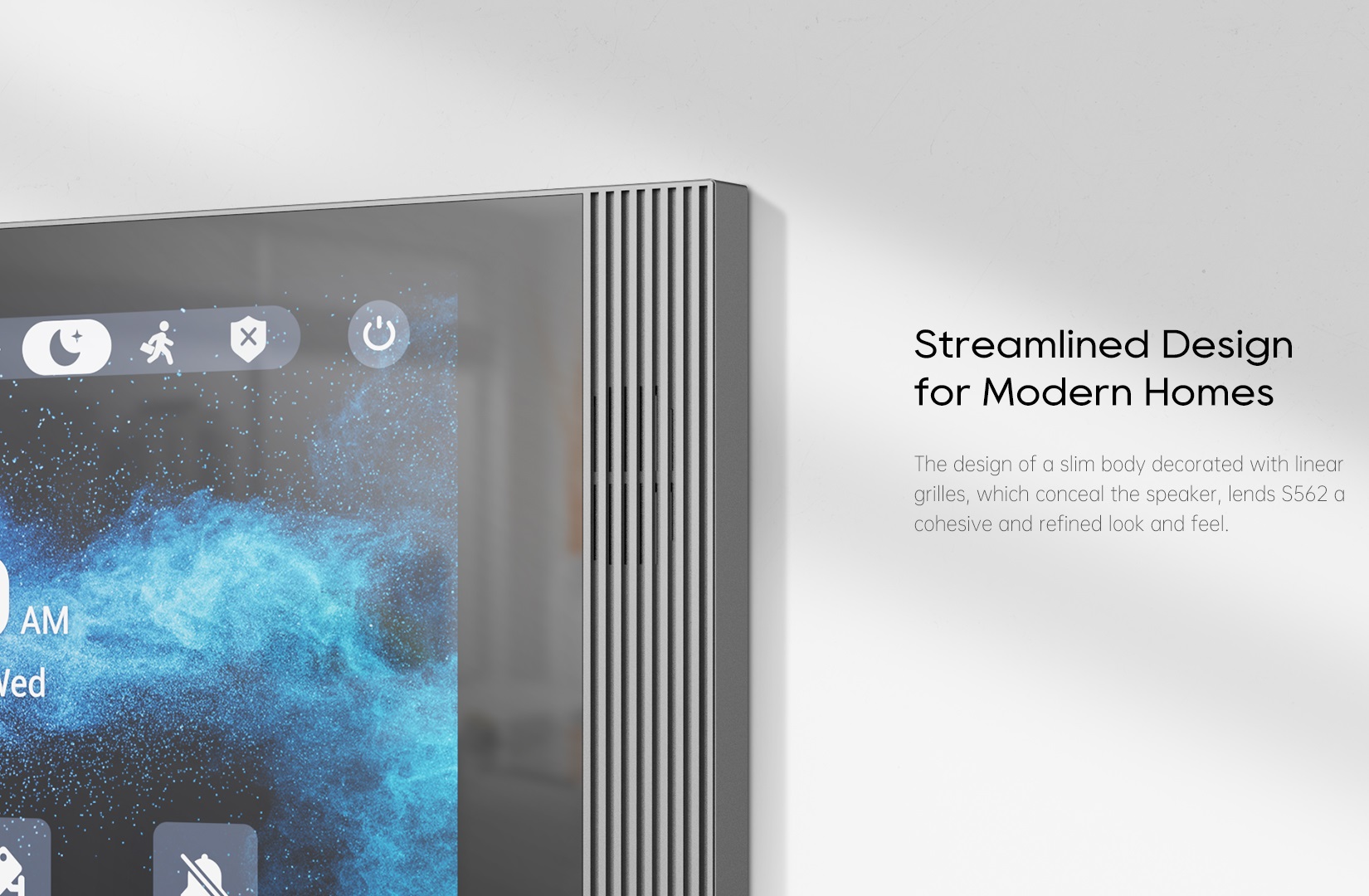

The Akuvox S562 is a sleek indoor touch monitor designed to enhance home security and communication. Featuring a 7-inch capacitive touch screen with a 1024 x 600 resolution, it offers clear visuals and an intuitive interface. Operating on a Linux system, the S562 supports integration with surveillance cameras, enabling users to monitor live footage from door phone cameras and third-party security cameras. It includes eight channel inputs, an embedded relay, and RS485 support, providing versatile connectivity options. The device can be powered via Power over Ethernet (PoE) or an external source, ensuring flexible installation. Its slim design, complemented by linear grilles concealing the speaker, blends seamlessly into modern home interiors. The S562 comes with an on-wall mounting bracket and supports both US and European electrical wall box mounting, facilitating easy setup.

Key Features:

  • Runs on Linux operating system
  • 7-inch capacitive touchscreen
  • 1024 x 600 pixel resolution
  • Features 8 channel inputs and 1 built-in relay
  • RS485 communication support
  • Two-way communication using SIP v2.0 protocol
  • Power options: PoE or external power source
  • Integrates with surveillance camera systems
  • Includes wall-mounting bracket
  • Compatible with US and European electrical wall boxes
  • Dimensions: 216.4 x 118.8 x 21.7 mm

Akuvox S562 Datasheet

$219.00 inc GST +3 Year Warranty & Support

The Akuvox S562 is a 7-inch indoor touchscreen answering panel designed to enhance communication and security within modern residential and commercial environments. Operating on a Linux-based system, it features a 7-inch capacitive touchscreen with a resolution of 1024 x 600 pixels, providing a user-friendly interface for seamless interaction. The device supports two-way audio communication with other units in the network, facilitating efficient interaction between residents and visitors. Compliant with the SIP 2.0 protocol, the S562 integrates effortlessly with various SIP-capable PBX systems, ensuring compatibility and flexibility in diverse setups. Its sleek and unobtrusive design allows it to blend seamlessly into any modern interior, making it suitable for applications in apartment complexes, shared housing, home automation systems, large villas, and shared office environments.

In terms of installation and connectivity, the Akuvox S562 offers versatile options. It can be powered either through Power over Ethernet (PoE) or an external power source, providing flexibility based on the existing infrastructure. The device supports mounting on both US and European electrical wall boxes, accommodating various regional standards. Additionally, the S562 includes one relay output and one bell input, enhancing its integration capabilities with other security and automation systems. These features, combined with its high-quality audio and video communication capabilities, make the Akuvox S562 a comprehensive solution for enhancing security and convenience in modern living and working spaces.

The Akuvox S562 is a sleek indoor monitor designed for modern residential settings, offering a range of features for enhanced communication and security:

  • Display: 7-inch capacitive touch screen with a resolution of 1024×600 pixels.
  • Audio and Video: Supports two-way audio communication based on SIP v2.0 protocol and video streaming in H.264 format.
  • Integration: Compatible with third-party surveillance cameras, allowing users to monitor live footage from door phones and security cameras.
  • Connectivity: Equipped with 8 channel inputs, 1 embedded relay, RS485 support, and two Ethernet ports (10/100Mbps).
  • Power Supply: Can be powered via Power over Ethernet (PoE) or an external 12V DC source.
  • Installation: Suitable for wall-mounted or desktop setups; supports US or European electrical wall box mounting.
  • Operating System: Runs on a Linux-based operating system.

These features make the Akuvox S562 a versatile choice for enhancing home automation and security systems.

Akuvox S562 Specifications

Physical & Power

  • Front panel: Plastic
  • RAM/ROM: 128MB / 128MB
  • Display: 7 Inch TFT LCD 1024×600 resolution
  • Screen: 7 Inch capacitive touch screen
  • RS485 port: Support
  • Relay out: 1
  • Bell in: 1
  • I/O: 8
  • Microphone: -42dB
  • Speaker: 4Ω / 2W
  • Ethernet ports: 2xRJ45, 10/100 Mbps adaptive
  • Power-over-Ethernet: 802.3af
  • DC connector: 12V (if not using PoE)
  • Installation: Wall-mounted & Desktop
  • Dimension: 216.4 x 118.8 x 21.7 mm
  • Working Humidity: 10~90%
  • Working Temperature: -10°C ~ +45°C
  • Storage Temperature: -20°C ~ +70°C

Touch Screen Display

  • Display Mode: Normally white, Transmissive
  • LCD Size: 7 inch (Diagonal)
  • Resolution: 1024×600
  • Contrast ratio: 600:1
  • Luminance: 250 cd/㎡
  • Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
  • Touch Screen: Projected capacitive

Audio

  • SIP Support: SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711u, G.729
  • Broadband audio codec: G.722
  • DTMF: Out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation: Supported

Video

  • Streaming formats: H.264

Networking

  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup/restore
  • Firmware upgrade
  • System logs: Include door access logs

Application Scenario

  • Villas
  • Apartment complexes
  • Home automation systems
  • Modern interiors

SKU: S562 Categories: ,
