Akuvox SR01 Compact Security Relay Single Door I/O Module
The Akuvox SR01 is a compact security relay designed to enhance door access control when integrated with Akuvox intercom devices such as the A02, R20, R28, R29, X915, X912, and E16. Installed on the secure side of the door, it adds an extra layer of protection by requiring an automatic verification code from the intercom to unlock the door, thereby preventing unauthorized access attempts, such as those using a 12V battery to manipulate electric locks. Its ultra-compact form allows it to fit into most standard installation boxes, making it a discreet yet effective addition to any security system.
Key Features:
- Environment: Indoor
- 1 button, for pairing
- Plastic casing
- Dimensions: 31x56x24mm

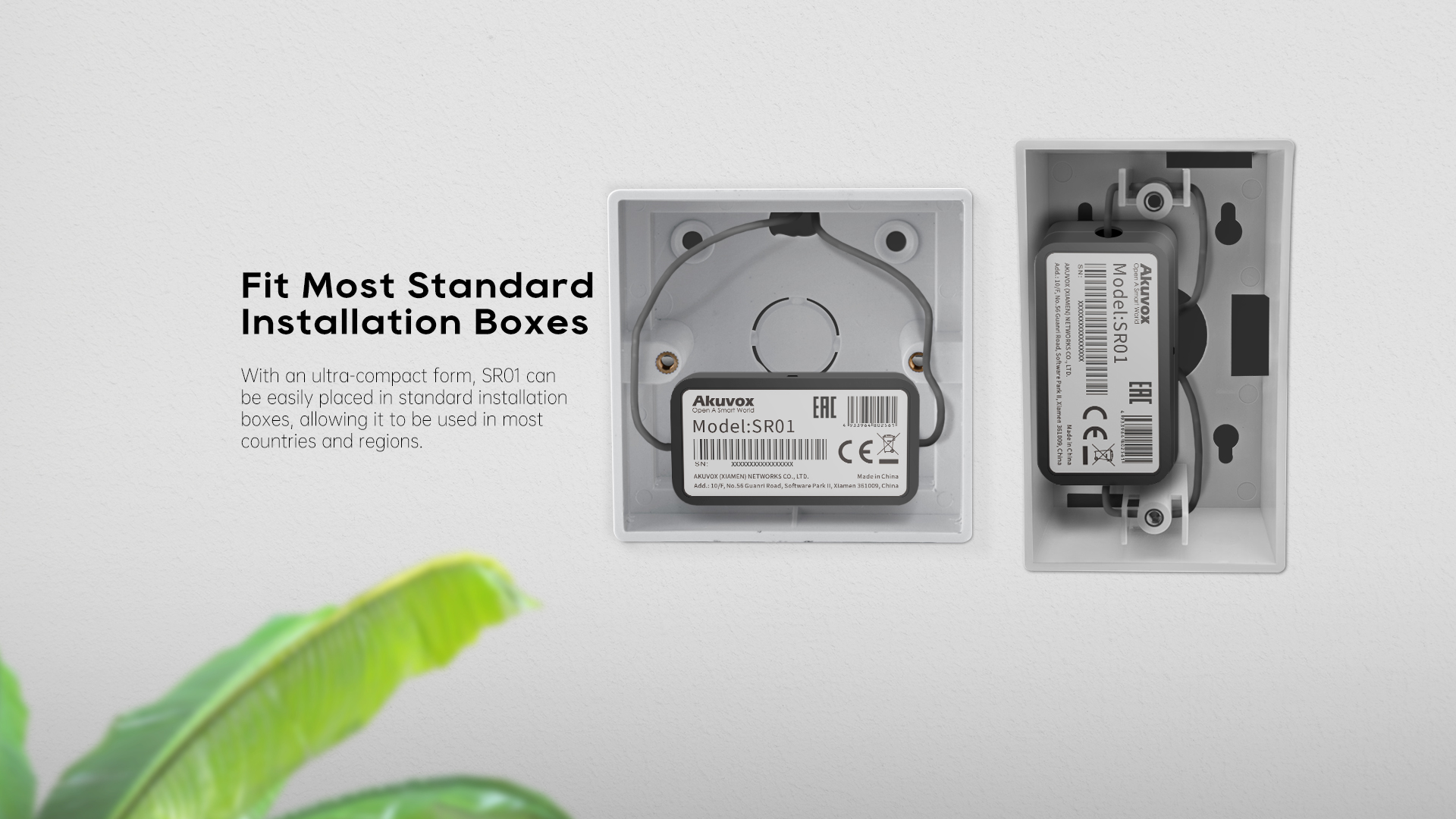

- Fits in standard installation boxes
- Relay Out: 1
- RS485: 1
- Input: 1
- Indicator: 2
- Power In: 1, 12V/100mA (Min.)
- Working Humidity: 10~90%
- Working Temperature: -20°C ~ +60°C
$163.00 inc GST +3 Year Warranty & Support

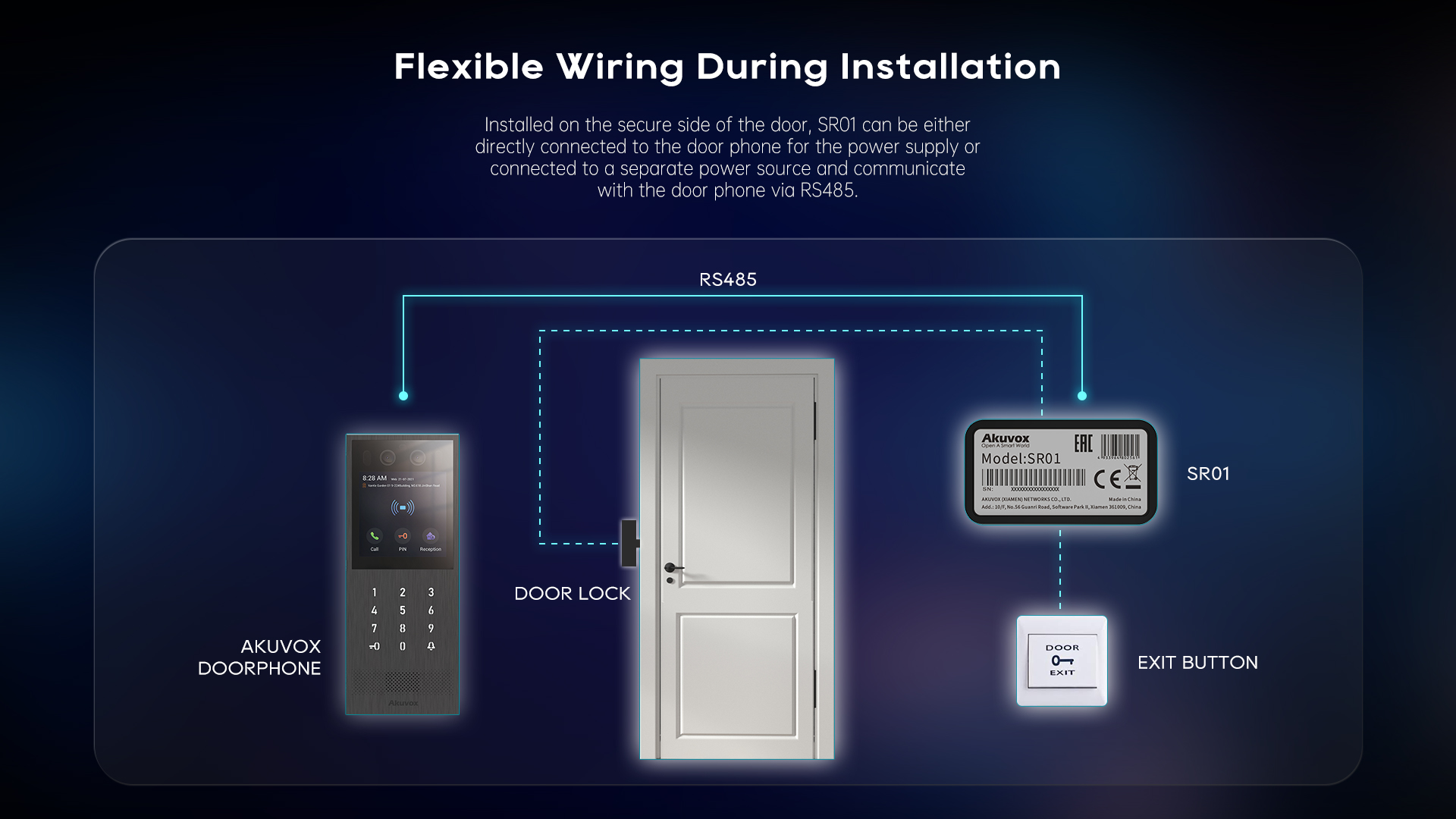

The Akuvox SR01 provides secure door control through encrypted communication when paired with other Akuvox devices. Its ultra-compact design fits easily into most standard installation boxes and is installed on the secure side of the door. In case of tampering or vandalism of the door station, the SR01 disconnects the door strike, ensuring the door remains securely locked.
Akuvox SR01 Specifications
Specification
- Environment: Indoor
- Casing: Plastic
- Dimensions: 31x56x24mm
- Mounting: Fits in standard installation boxes
- Working Humidity: 10~90%
- Working Temperature: -20°C~+60°C
- Relay Out: 1
- RS485: 1
- Input: 1
- Button: 1, for pairing
- Indicator: 2
- Power In: 1, 12V/100mA (Min.)
