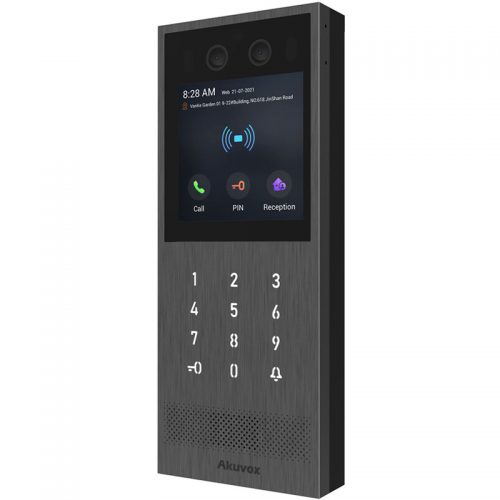

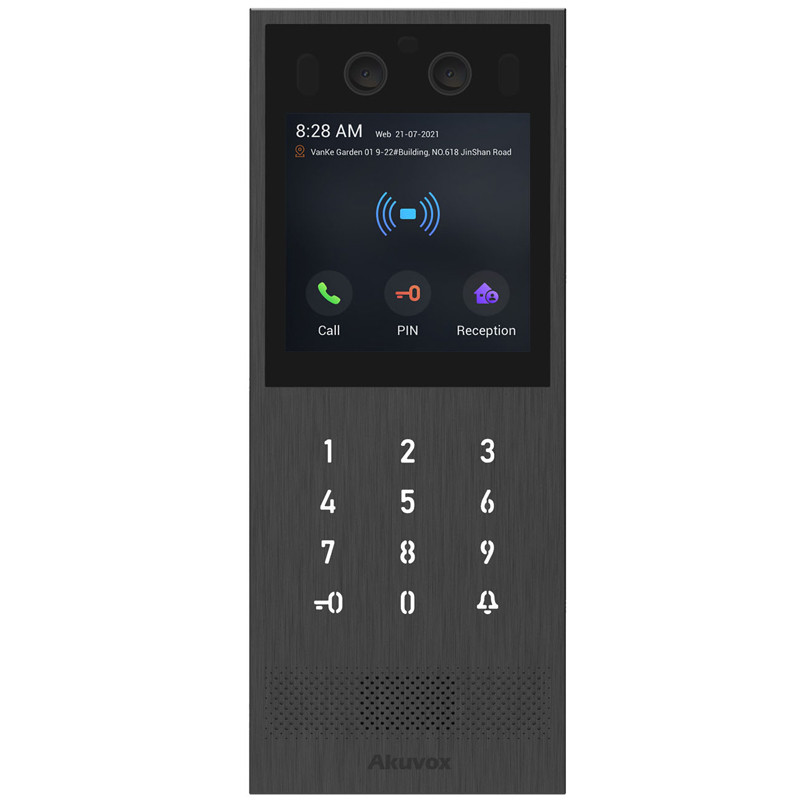

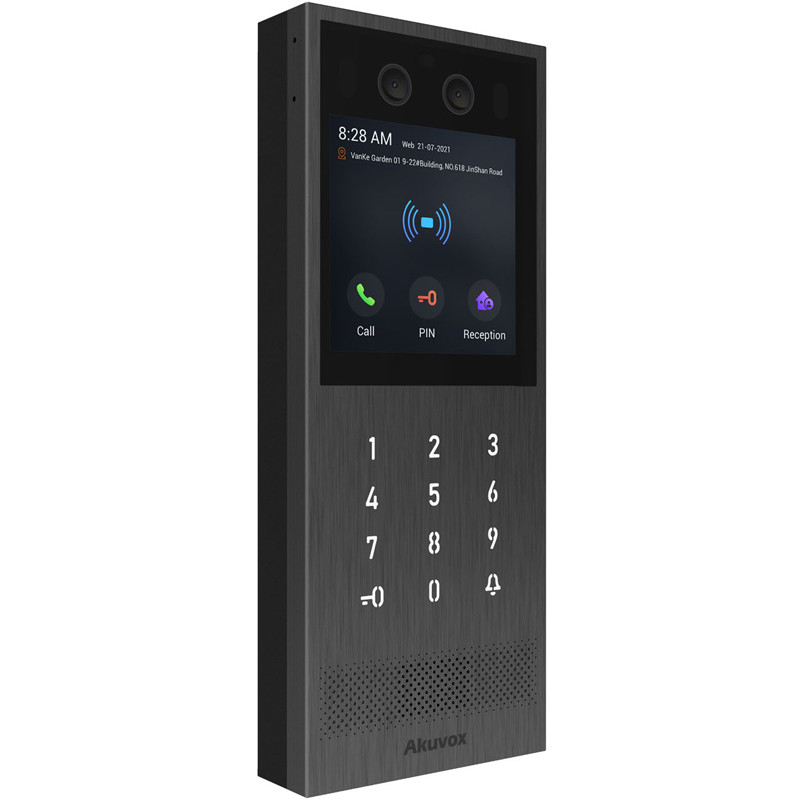

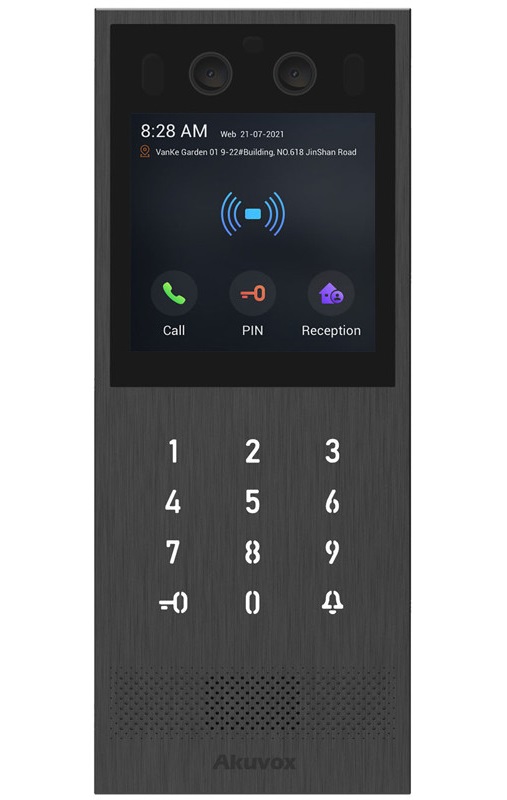

Akuvox X912S Vandal-resistant Door Phone for High-end Buildings

The Akuvox X912S is a vandal-resistant door phone designed for high-end residential and commercial buildings, offering top-of-the-line features in a compact form factor ideal for installations with limited space. Its robust construction ensures durability and security, making it suitable for various environments. The device supports multiple access methods, including face recognition, IC/ID cards, PIN codes, Bluetooth, and QR codes, providing flexible and secure entry options for users. Equipped with a built-in 2-megapixel camera, the X912S delivers high-quality video, while its echo-canceling microphone and speaker facilitate clear two-way audio communication over IP networks. Compliance with SIP and ONVIF standards ensures seamless integration with various IP-based communication and surveillance systems.

Designed to withstand harsh outdoor conditions, the X912S boasts an IP65 rating for water and dust resistance, ensuring reliable performance in diverse environments. Its vandal-resistant body enhances security by deterring tampering and unauthorized access. The device can be powered via PoE+ or a 12V DC connector, offering installation flexibility. Wall-mounted installation simplifies setup, and its compact dimensions (234×94.5×34 mm) make it suitable for buildings with limited installation space. Operating within a temperature range of -20°C to +60°C and humidity levels between 10% and 90%, the X912S is built to perform reliably in various climates. These features make the Akuvox X912S an excellent choice for enhancing security and access control in high-end building projects.

The Akuvox X912S is a vandal-resistant door phone designed for high-end residential and commercial buildings, especially those with limited installation space. It offers a range of advanced features to enhance security and user convenience.

Akuvox X912S Vandal-resistant Door Phone Features

Vandal-Resistant Design

• Constructed with a stainless steel front panel, the X912S is built to withstand tampering and harsh environmental conditions, boasting an IP65 rating for dust and water resistance and an IK10 rating for impact resistance.

High-Quality Video and Audio

• Equipped with a 2-megapixel camera, the device provides clear video communication.
• Features two omnidirectional MEMS microphones and a front speaker design, ensuring high-quality audio with echo cancellation for clear two-way communication.

Multiple Access Methods

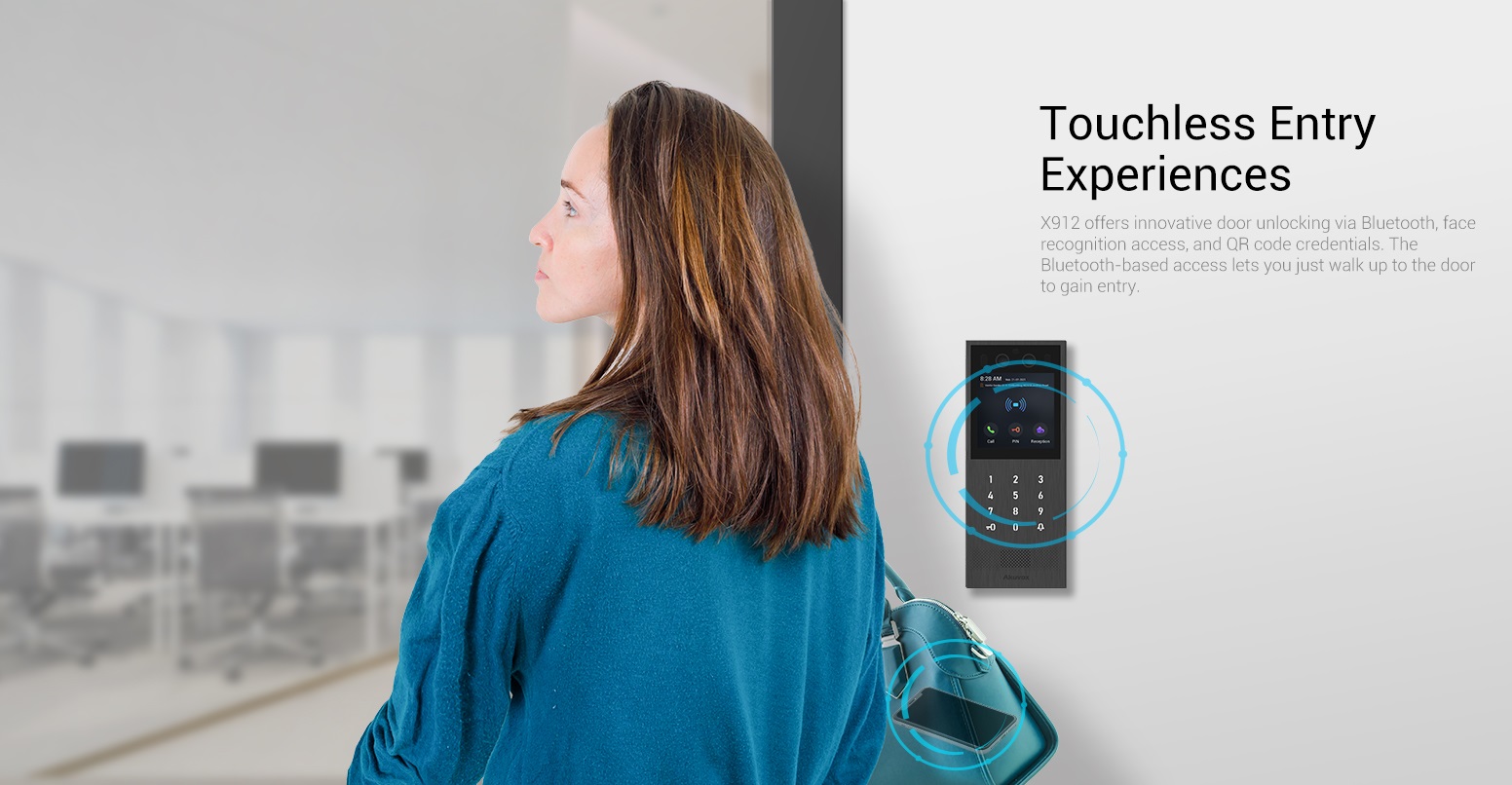

• Supports various access options, including Face ID, RFID cards (13.56MHz & 125kHz), PIN codes, Bluetooth (BLE), and QR codes, offering flexibility in access control.

Touchscreen Interface

• Features a 4-inch color TFT LCD touchscreen, providing an intuitive and user-friendly interface for visitors and residents.

Power over Ethernet (PoE+)

• Supports PoE+ (IEEE802.3at), simplifying installation by allowing the device to receive power and data through a single Ethernet cable.

Integration and Compatibility

• Complies with SIP standards for seamless integration with SIP-capable PBX systems.
• Adheres to ONVIF standards, enabling easy integration with third-party network video surveillance systems.

Additional Features

• Includes a gesture detection sensor for enhanced user interaction.
• Provides Wiegand and RS485 ports for integration with various access control systems.
• Offers two relay outputs and three inputs for versatile connectivity options.
• Equipped with NFC support for additional access control methods.

These features make the Akuvox X912S a robust and versatile solution for secure access control in high-end building environments.

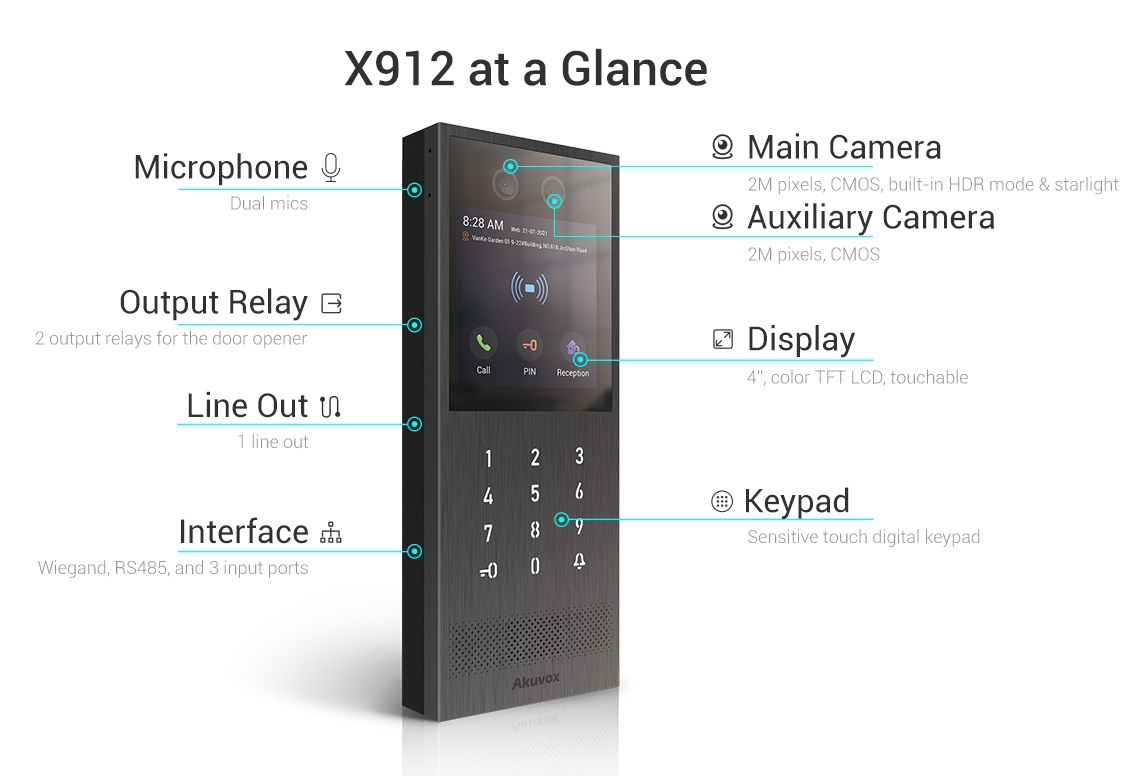

Akuvox X912S Specifications

Physical & Power

• Front panel: Stainless steel
• Display: 4 Inch, color TFT LCD, touchable
• Camera: 2M pixels
• Numeric keypad
• Gesture detection sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz & 125kHz, NFC
• Relays out: 2
• Inputs: 3
• BLE: Support
• Line out: 1
• Microphone: -42dB
• Speaker: 8Ω / 2W
• Power out: 12V/1A (Max.)
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3at Power-over-Ethernet
• 12V DC connector: (if not using PoE+)
• IP & IK rate: IP65 & IK10

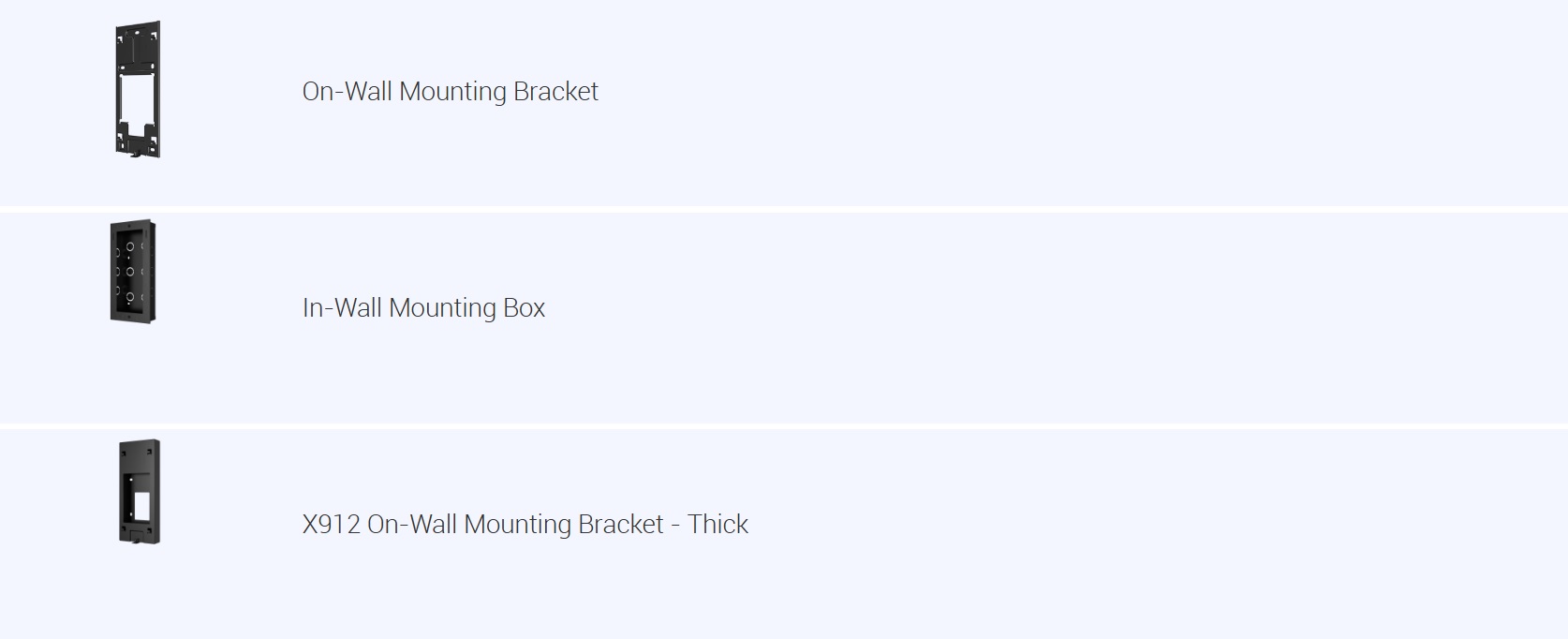

• Installation: Wall-mounted
• Dimension: 234×94.5x34mm
• Working Humidity: 10~90%
• Working Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

Audio

• SIP versions: v1 (RFC2543), v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video

• Sensor: 1/2.8”, CMOS for main camera
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264
• Video technology: HDR
• Video resolution: Up to 1920x1080p
• Max. image transfer rate: 1080p – 30fps
• Viewing angle: 125°(H) / 65°(V)
• Compatible to 3rd-party video components, e.g., NVRs

Networking and Protocol

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

• Relays controlled individually by DTMF tones
• Multi-way unlock: Face, IC/ID Card, PIN, and BLE
• Camera permanently operational
• White balance: Auto
• Minimum illumination: 0.1LUX

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup/restore
• Entry log export
• Access table export/import
• Firmware upgrade
• System logs (include door access logs)

Application Scenario

Provides resident/visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities, and industrial buildings.
