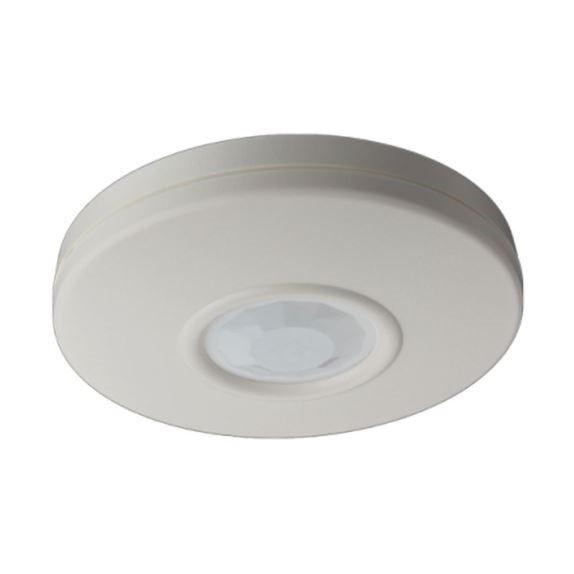

Bosch 360 Degree Ceiling Low Profile Panoramic PIR Detector DS936
- Enhanced signal processing
- 360° x 7.5 m (24 ft.) pattern
- Surface/semi-flush mountable
- Internal pointability, sealed detector chamber
$163.25 inc GST +3 Year Warranty & Support
The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also
uses a pointable Fresnel lens to provide up to 7.5 m (24 ft) of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box.
Mounting
The detector should be mounted at a height range 2 m to 3.6 m (7 ft to 12 ft) either surface mounted or semi-flush on ceiling.
Enclosure design
Material High impact ABS plastic enclosure
Dimensions 3.05 cm x 11.7 cm (1.2 in. x 4.6 in.)
Environmental considerations
Temperature (operating) -29°C to +49°C (-20°F to +120°F)
For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity
No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
Outputs
Alarm Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg.
Tamper Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum.
Power requirements
Current 20 mA at 12 VDC
Voltage 10 VDC to 15 VDC
