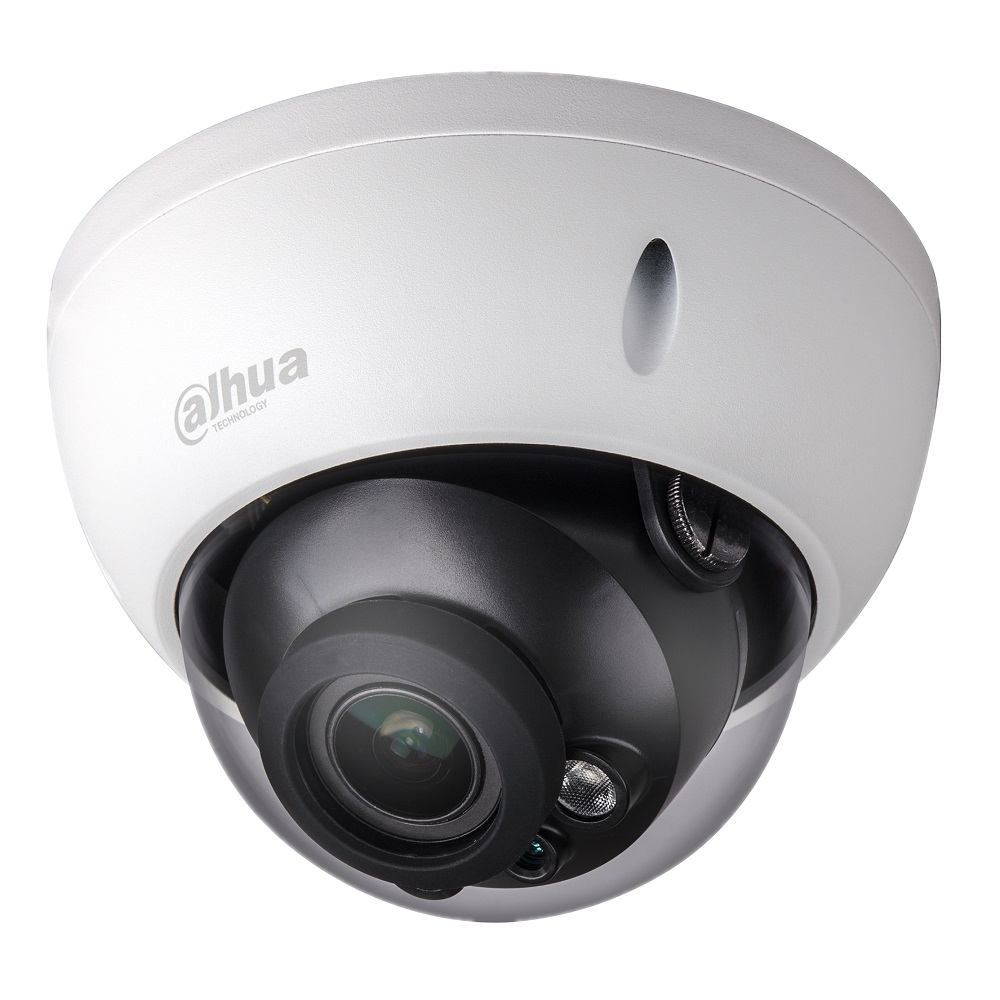

Dahua DH-IPC-HDBW2831RP-ZS-27135-S2 8MP 4K IP WDR IR Dome Motorised [Optical Zoom] 3.7-13.5mm, Lite + Starlight

Availability:

Out of stock


8MP 4K Varifocal 3.7 – 13.5mm cameras | IR 40m | Starlight Sensor | 3840 × 2160 resolution

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Wide Dynamic Range (WDR) – Superb colour reproduction – handles well in varying light conditions

Built-in Infrared LED, up to 40 metres distance.

“Weather-Proof” Ingress Protection Rating (IP67)

“Vandal-Proof” Impact Protection Rating (IK10)

$243.77 $325.00 inc GST +3 Year Warranty & Support

Out of stock

The IR Megapixel Vari-focal camera delivers with a 2.7mm – 13.5mm varifocal lens.The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Technical Camera Features:

  • Built-in IR LED, max. IR distance: 40 m
    · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
    · Handles well in varying light conditions: includes rotation mode, Wide Dynamic Range (WDR), 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
    · Intelligent detection: Tripwire, intrusion – important for perimeter protection.
    · Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
    · Supports max. 256 G Micro SD card, built-in Mic
    · 12V DC/PoE power supply
  • Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
  • “Vandal-Proof” Impact Protection Rating (IK10)

Dahua 8MP (4K) Starlight H.265+ IP Vandal Dome Motorized Lens 3.7~11mm, Day/Night ICR, True WDR(120dB), IR 30m, IVS, Micro SD, IP67, IK10, POE

(Optional: Junction box PFA137, Wall Mt Brck: PFB203W)

Spec sheet PDF – https://www.dahuasecurity.com/asset/upload/uploads/soft/20191031/DH-IPC-HDBW2831R-ZS-S2.pdf

User Manual – https://www.dahuasecurity.com/asset/upload/uploads/soft/20191031/Dahua-Vari-focal-Dome-Network-Camera_QSG_V1.0.0.pdf

Sample Dahua 8MP Resolution

Day time – cars driving by

Night

Night

Early morning

Sample 8MP Videos from a similar Dahua camera

3 Year Warranty!

3 Year Warranty

All Dahua IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

(Note disk drives limited to 1 one year)

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories.

Consumer Law, Return, Refund and Exchange Policy:
(a) ACL: Certain legislation including the Australian Consumer Law (ACL) in the Consumer and Competition Act 2010 (Cth), and similar consumer protection laws and regulations may confer you with rights, warranties, guarantees and remedies relating to the provision of goods or services to you by us via the Site which cannot be excluded, restricted or modified. Our liability is governed solely by the ACL and these Terms.

(b) Goods: If you are a consumer as defined in the ACL, the following notice applies to you: “Our goods come with warranties and guarantees that cannot be excluded under the Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure

(c) Our warranties: To the extent permitted by law, we exclude all express and implied warranties, and all material and work is provided to you without warranties of any kind, either express or implied. We expressly disclaim all warranties including but not limited to implied warranties of merchantability and fitness for a particular purpose.

(d) Manufacturer warranties: Certain products, including particular models of IP security cameras and DVR/NVR equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is in addition to but may overlap with any rights and remedies you may have under applicable law, including any Consumer Guarantees. If you are not considered a “consumer” within the meaning of the ACL, the manufacturer’s warranty may be your sole remedy. You should check the manufacturer’s warranty, as many manufacturers’ warranties do not apply in a business or commercial setting. Please contact the manufacturer if you would like to make a claim under the manufacturer’s warranty.

(e) Repair, replacement or a refund: If you wish to seek repair, replacement or a refund for a product, please contact us and we will explain the requirements to you. This may include you providing evidence of the faulty product to us.

(f) Refund: You are not entitled to a refund for change of mind. If you are entitled to a refund, we will only give you the refund once evidence of faulty product is received by us, or we have received the product at our warehouse and inspected it and assessed whether it is eligible for a refund under these Terms. Any refund we make will be by the same payment method used to purchase the product.

(g) Installed: Subject to this clause, we will not accept for return any product that has been used, connected, installed, attempted to be connected or installed, or if your product is custom-made or is a special buy product.

(h) Packaging: You must adequately package any product you are returning for our collection to ensure that it is not damaged during return delivery to our warehouse. You are also responsible for arranging the return delivery and the costs involved.

(i) Duty of care: You have a duty of care for the product while it is in your possession. If you damage products, then subsequently return the products, you may be liable to pay to repair the product to its original condition. In these circumstances, where a repair is not economically viable, no refund will be made.

More Terms & Conditions here – https://www.securitywholesalers.com.au/terms-and-conditions/

Specifications

Spec sheet PDF – https://www.dahuasecurity.com/asset/upload/uploads/soft/20191031/DH-IPC-HDBW2831R-ZS-S2.pdf

User Manual – https://www.dahuasecurity.com/asset/upload/uploads/soft/20191031/Dahua-Vari-focal-Dome-Network-Camera_QSG_V1.0.0.pdf

Camera
Image Sensor 1/1.8” 8Megapixel progressive CMOS
Effective Pixels 3840(H) x2160(V)
RAM/ROM 512MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.004Lux/F1.9( Color, 1/3s, 30IRE)

0.09Lux/F1.9 Color, 1/30s, 30IRE)

0Lux/F1.9(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 3.7mm~11mm
Max. Aperture F1.9
Angle of View H:112°~46°, V:60°~26°
Focus Control Fixed
Close Focus Distance 0.2m(0.66ft)
PTZ
Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048×1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate Main Stream: 4K (1~25/30fps)
Sub Stream: D1(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32Kbps~8192Kbps

H.265: 16Kbps~8192Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; NFS; SSH
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS

Local PC for instant recording

Micro SD Card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL: UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <10.9W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 122mm×88.9mm (4.80”x3.50”)
Net Weight 0.49Kg (1.09lb)
Gross Weight 0.66Kg(1.46lb)



Video Samples

Day time – cars driving by

Night

Night

Early morning

Sample 8MP Videos from a similar Dahua camera
