-32%
, , , , ,

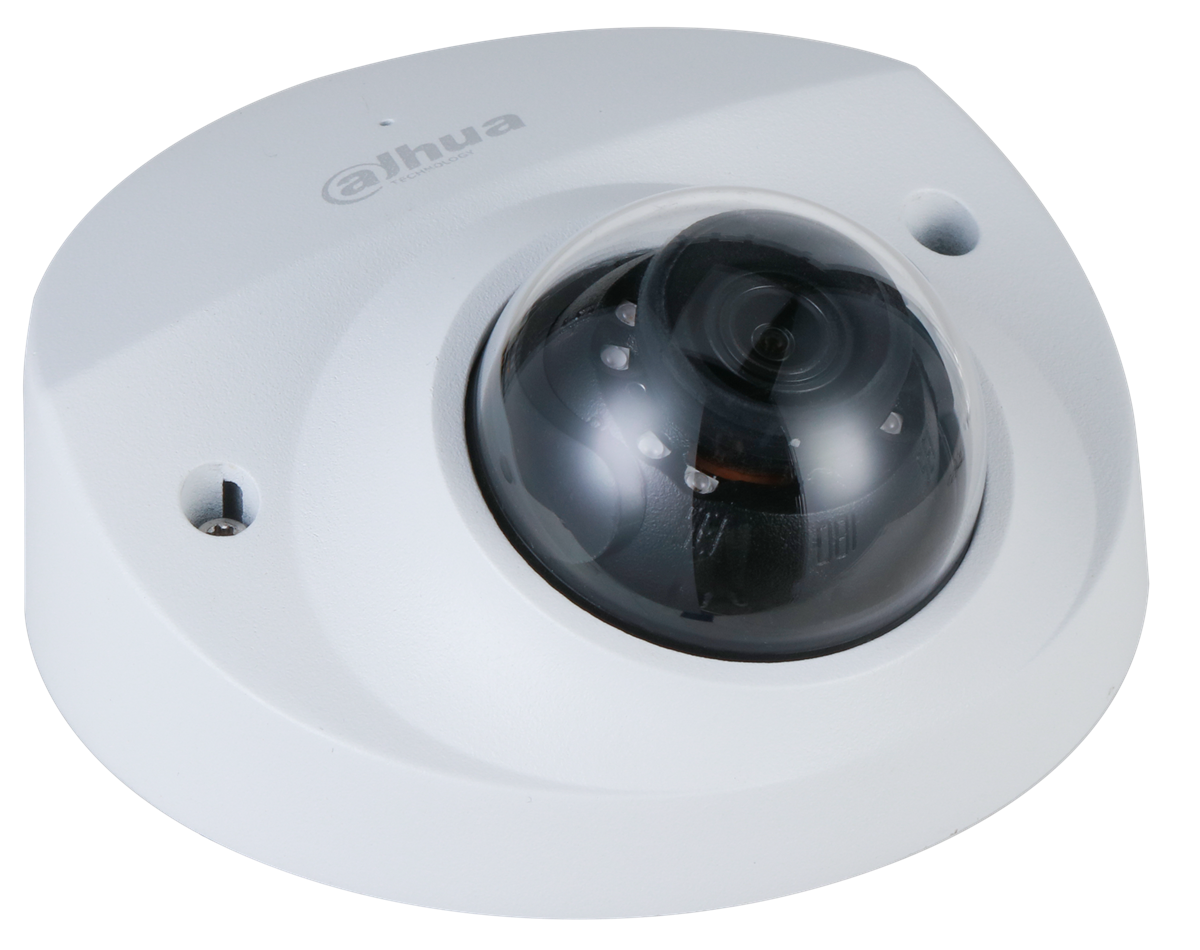

Dahua DH-IPC-HDBW3541FP-AS-M-0280B 5MP Lite AI Fixed Starlight Dome, Perimeter, SMD, SD Card, WDR, IR50m, IP67, POE

Availability:

Out of stock

IPC-HDBW3541F-AS-M

5MP Lite AI IR Fixed focal Dome Network Camera

5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 5MP (2592 × 1944)@20 fps
> H.265 codec, high compression rate, low bit rate
> Built-in IR LED, max. IR distance: 50 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/POE power support
> IP67, IK10 protection
> SMD



THIS CAM HAS BEEN DISCONTINUED AND REPLACED BY:

Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera

$186.00 $272.00 inc GST +3 Year Warranty & Support

Out of stock

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users.



Camera
Image Sensor 1/2.7”5Megapixel progressive CMOS
Effective Pixels 2592 (H) ×1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux@F1.6
IR Distance 50 m (164.0 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 8 (IR LEDs)
Pan/Tilt/Rotation Range Horizontal: -30° to 30°; vertical: 0° to 80°;

rotation: 0° to 360°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°
Iris Type Fixed aperture
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 56.0 m

(183.7 ft)

 22.4 m

(73.5 ft)

 11.2 m

(36.8 ft)

 5.6 m

(18.4 ft)
3.6mm 80.0 m

(262.5 ft)

 32.0 m

(105.0 ft)

 16.0 m

(52.5 ft)

 8.0 m

(26.3 ft)
6mm 120.0 m (393.7 ft) 48.0 m

(157.5 ft)

 24.0 m

(78.7 ft)

 12.0 m (39.4ft)
Professional, Intelligent
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream (2592 × 1944@1–20 fps)

(2688 × 1520@1–25/30 fps)

sub stream (704 × 576@1–25/30 fps)

third stream (1280 × 720@1–25/30 fps)
Stream Capability 3 streams
Resolution 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726; AAC
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation Yes
User/Host 20 (Total bandwidth: 64 M)
Edge Storage FTP; SFTP;Micro SD Card (support max. 256 G);Cloud; NAS
Browser IE: IE8, IE9, IE11

Chrome

Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <5.7W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/ less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67; IK10
Structure
Casing Metal + Plastic
Dimensions 55 mm × Φ108.9 mm (2.2″ × Φ4.3″)
Net Weight 380 g (0.8 lb)
Gross Weight 520 g (1.1 lb)
SKU: DH-IPC-HDBW3541FP-AS-M-0280B Categories: , , , , , Tag:
