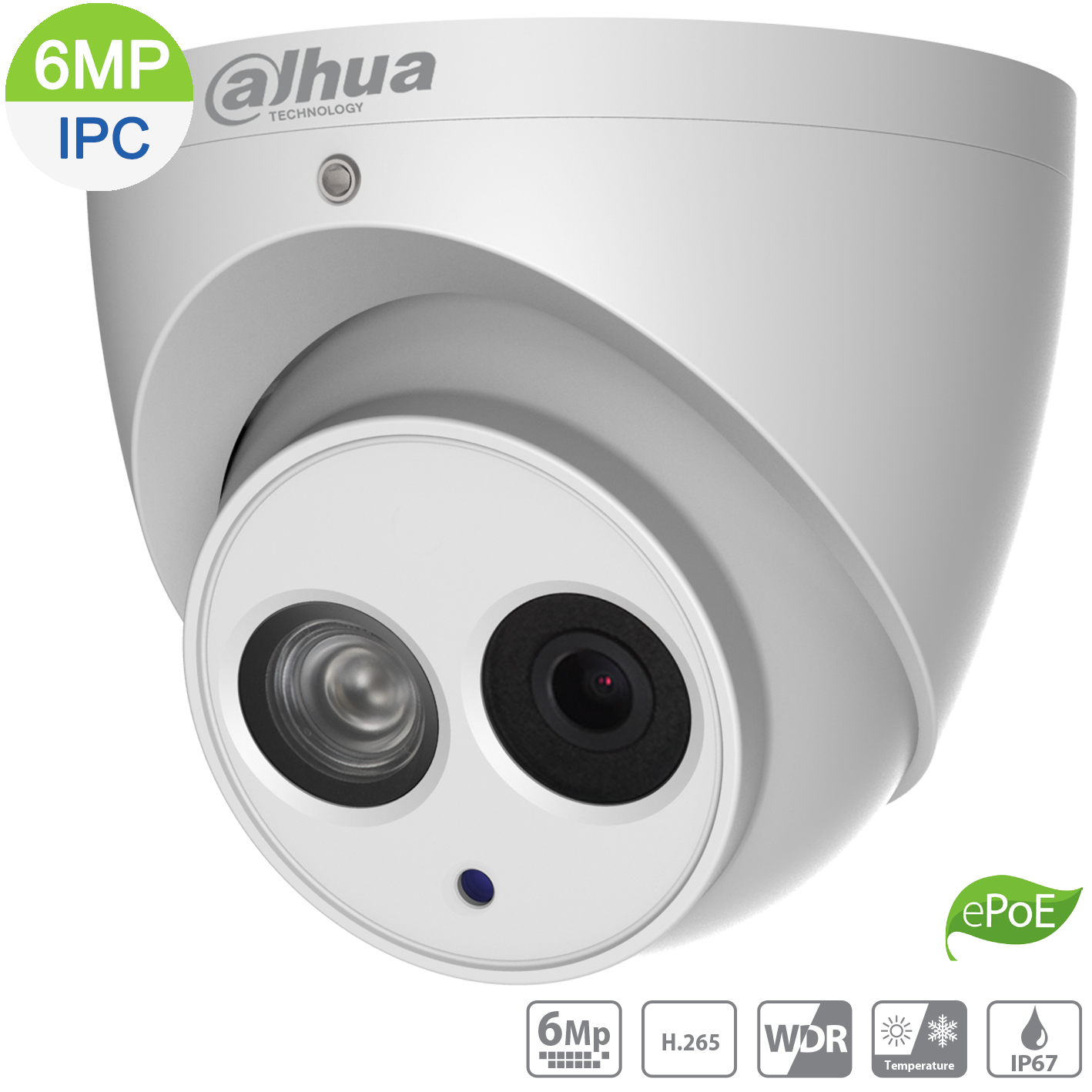

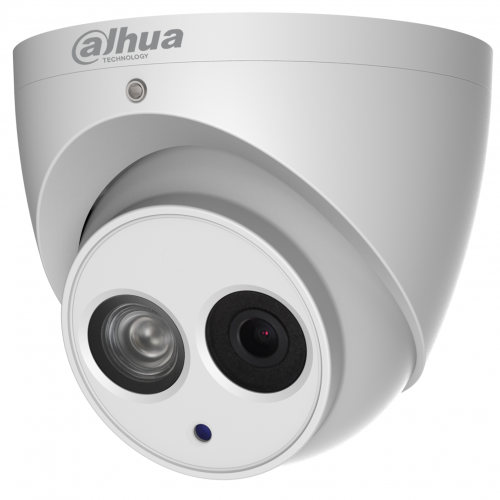

Dahua DH-IPC-HDW4631EMP-0280B 6MP Eyeball Network Camera 50m IR 2.8mm

Availability:

Out of stock


Dahua 6MP STARVIS H.265+ IP Turret Fixed 2.8mm, Built-in Mic, Day/Night ICR, IVS, True WDR(120dB), IR 50m,IP67, DC12V, <6W, POE (Optional: Junction box PFA130, Wall Mount: PFB204W)

Spec sheet – DH-ipc-hdw4631emp-0280b







NOTE – This camera has been SUPERCEDED by the one below:

Dahua DH-IPC-HDW3641TMP-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm with SMD

Looking for a similar camera with Smart Motion Detection? Click here

$194.00 $231.00 inc GST +3 Year Warranty & Support

Out of stock

Dahua 6MP STARVIS H.265+ IP Turret Fixed 2.8mm, Built-in Mic, Day/Night ICR, IVS, True WDR(120dB), IR 50m,IP67, DC12V, <6W, POE (Optional: Junction box PFA130, Wall Mount: PFB204W)

Features

· 1/2.9” 6Megapixel progressive scan STARVISTM CMOS
· H.265&H.264 triple-stream encoding
· 20fps@6MP(3072×2048), 25/30fps@4MP(2688×1520)
· Smart detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8mm fixed lens
· Built-in Mic
· Max. IR LEDs Length 50m

ImageNamePriceBuy
Dahua DH-PFA130-E Dahua Water proof Junction Box$21.00 $24.00 inc GST +3 Year Warranty & Support

Dahua DH-PFB204W Water-proof Wall Mount Bracket$20.00 $30.00 inc GST +3 Year Warranty & Support

Note – this model doesn’t have:
A= alarm in/ alarm out
S= SD card slot
E= ePOE (long range POE up to 800M)

If you’d like these additional features, please look at the ASE model

Note – not the same camera but similar camera



Specifications

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H) x 2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.04Lux/F1.6( Color,1/3s,30IRE)

0.4Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm optional)
Max. Aperture F1.6(F1.6)
Angle of View H: 98° (69°), V: 67° (48°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.9m (1.7m)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 69m(226ft) 28m(92ft) 14m(46ft) 7m(23ft)
3.6 mm 89m(292ft) 36m(118ft) 18m(59ft) 9m(30ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution (3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <6W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ106mm×93.7mm (4.17”×3.69”)
Net Weight 0.47Kg (1.04lb)
Gross Weight 0.65Kg (1.43lb)
