-11%
, , , , ,

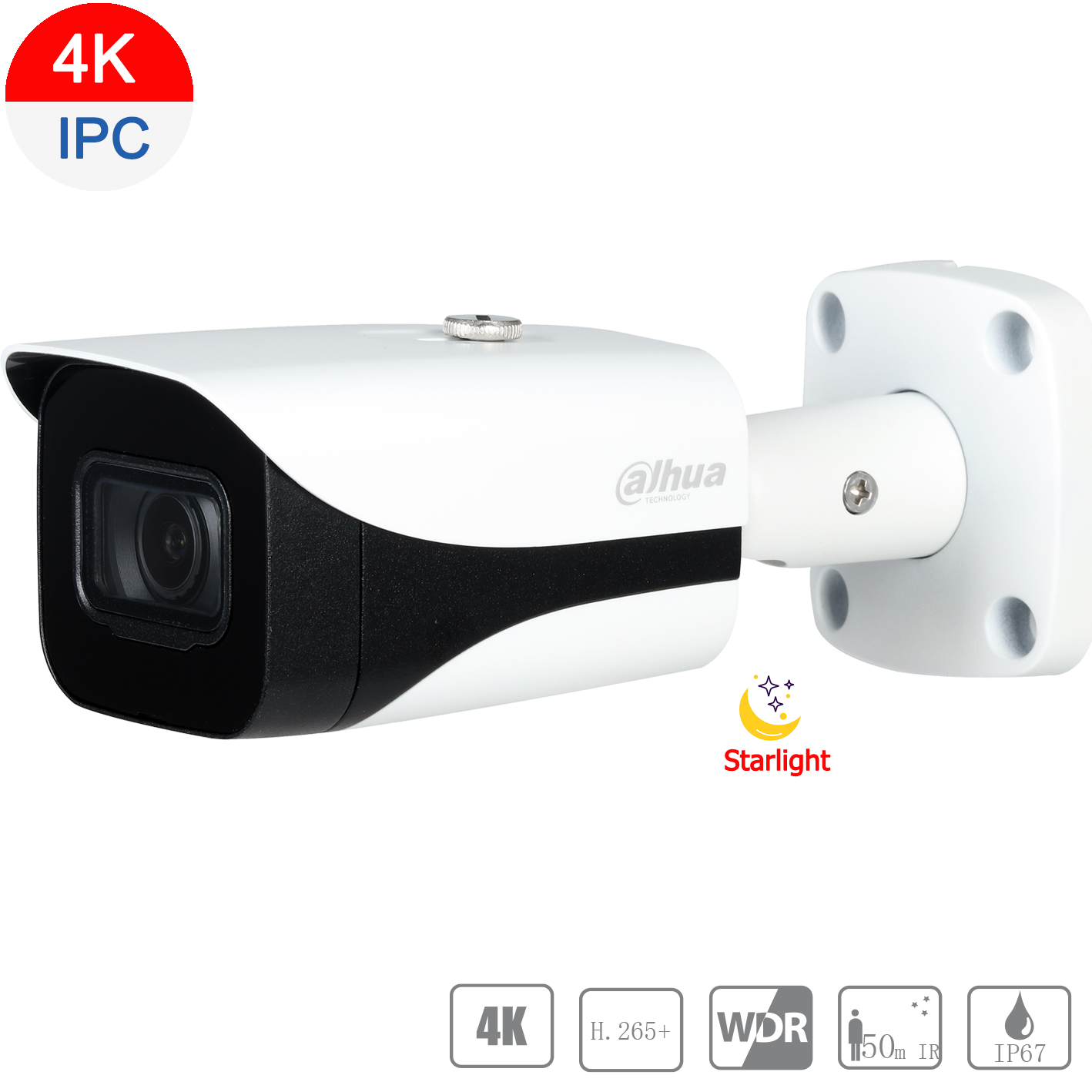

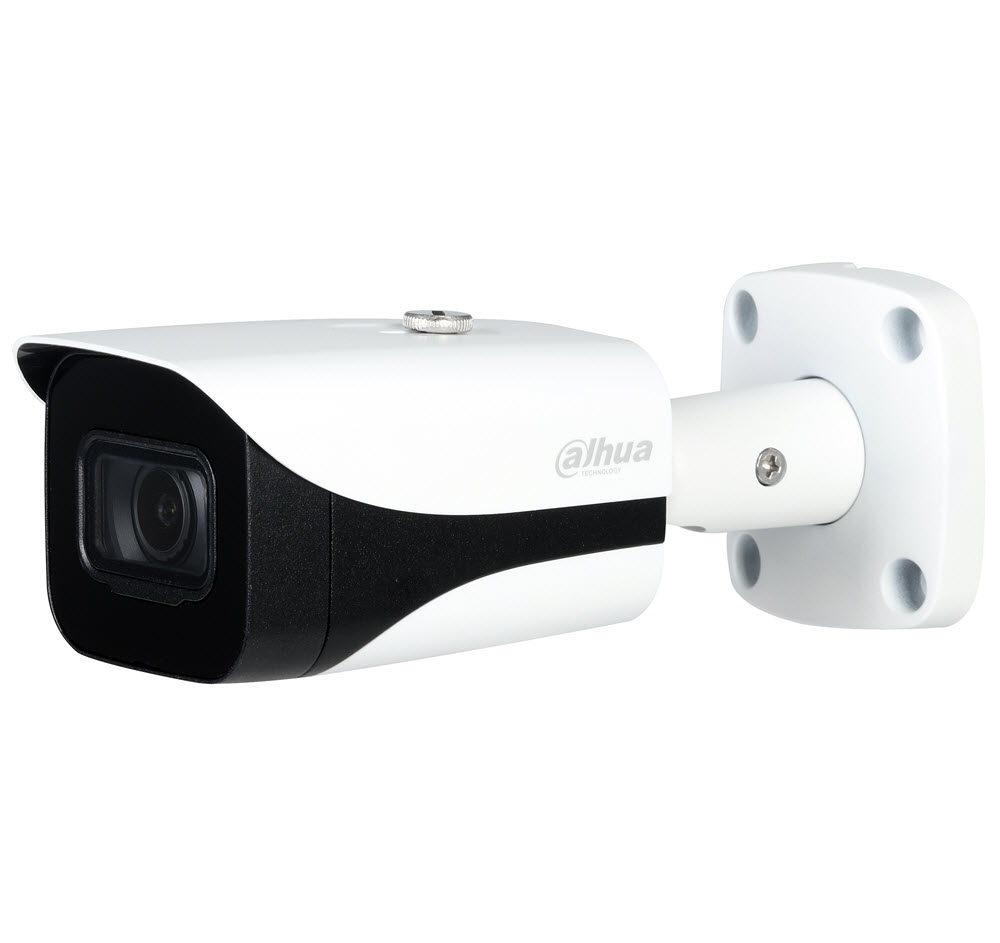

Dahua DH-IPC-HFW1831EP 8MP WDR IR Mini Bullet Network Camera with 2.8mm

Availability:

Out of stock


The IR Megapixel Fixed camera delivers 8MP resolution with a 2.8/4.0/6.0mm fixed lens.The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

CLICK HERE FOR SIMILAR CAMERA IN STOCK

dh-ipc-hfw1831e_operation_manual-_20171102
dh-ipc-hfw1831e_datasheet_20190102
dh-ipc-hfw1831e_quickstartguide-_20171106

$295.00 $330.00 inc GST +3 Year Warranty & Support

Out of stock

The IR Megapixel Fixed camera delivers 8MP resolution with a 2.8/4.0/6.0mm fixed lens.The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Features

> 1/1.8” 8Megapixel progressive scan CMOS
> H. 265&H.264 dual-stream encoding
> 25/30fps@8MP(3840×2160)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (4mm, 6mm optional)
> Max. IR LEDs Length 50m
>IP67, PoE
(Optional: Junction box PFA121, Pole Mount: PFA152-E)

Sample 8MP Videos from a similar Dahua camera

Specifications

Camera
Image Sensor 1/1.8” 8Megapixel progressive scan CMOS
Effective Pixels 3840(H) x 2160(V)
RAM/ROM 512MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.003Lux/F1.6( Color,1/3s,30IRE)

0.08Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (4mm, 6mm optional)
Max. Aperture F1.6
Angle of View H:111°/87°/55°, V:59°/47°/30°
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 1.5m (16.4ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 84m(276ft) 34m(112ft) 17m(56ft) 8m(26ft)
4.0 mm 104m(341ft) 42m(138ft) 21m(69ft) 10m(33ft)
6.0 mm 164m(538ft) 66m(217ft) 33m(108ft) 16m(53ft)
PTZ
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~90˚; Rotation:0˚~355˚
Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048×1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate Main Stream: 4K (1~25/30fps)
Sub Stream: D1(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264:24K ~ 8192Kbps

H.265:32K~ 8192Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability ONVIF Profile S&G, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (IEEE802.3af)(Class 0)
Power Consumption <7.8W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 179.9mm×69.3mm×62mm (7.08”×2.73”×2.44”)
Net Weight 0.48kg (1.06lb)
Gross Weight 0.51 kg (1.12lb)

3 Year Warranty

All Dahua IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

(Note disk drives limited to 1 one year)

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories.
