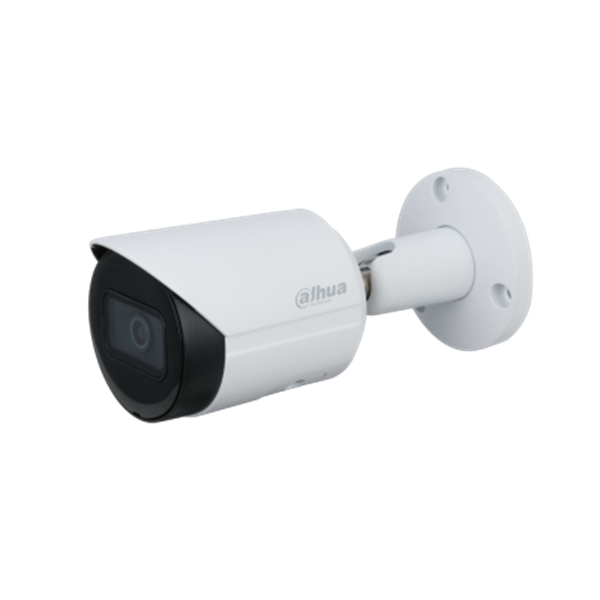

Dahua DH-IPC-HFW2831SP-S-0280B-S2 8MP WDR IR Mini Bullet Network Camera with 2.8mm

Availability:

Out of stock


8MP 4K Bullet cameras | Fixed 2.8mm | Starlight Sensor | 3840 × 2160 resolution

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Wide Dynamic Range (WDR) – Superb colour reproduction – handles well in varying light conditions

Built-in Infrared LED, up to 30 metres distance.

“Weather-Proof” Ingress Protection Rating (IP67)

“Vandal-Proof” Impact Protection Rating (IK10)



Datasheet
User Manual

Dahua DH-IPC-HFW3866EP-AS-AUS 8MP (4K) Bullet Fixed Starlight Wizsense Camera

$196.43 $237.00 inc GST +3 Year Warranty & Support

Out of stock

  • 8MP, 1/2.7″ CMOS imagesensor, low illuminance, high image definition
  • Outputs max. 8MP (3840 2160)@15 fps, and supports 26881520 @25/30 fps
  • Built-in IR LED, max. IR distance: 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Handles well in varying light conditions: includes rotation mode, Wide Dynamic Range (WDR), 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion – important for perimeter protection.
  • Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
  • “Vandal-Proof” Impact Protection Rating (IK10)



Sample Dahua 8MP Resolution

Day time – cars driving by

Night

Night

Early morning

Sample 8MP Videos from a similar Dahua camera

3 Years Warranty!

3 Year Warranty

All Dahua IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

(Note disk drives limited to 1 one year)

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories.

Consumer Law, Return, Refund and Exchange Policy:
(a) ACL: Certain legislation including the Australian Consumer Law (ACL) in the Consumer and Competition Act 2010 (Cth), and similar consumer protection laws and regulations may confer you with rights, warranties, guarantees and remedies relating to the provision of goods or services to you by us via the Site which cannot be excluded, restricted or modified. Our liability is governed solely by the ACL and these Terms.

(b) Goods: If you are a consumer as defined in the ACL, the following notice applies to you: “Our goods come with warranties and guarantees that cannot be excluded under the Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure

(c) Our warranties: To the extent permitted by law, we exclude all express and implied warranties, and all material and work is provided to you without warranties of any kind, either express or implied. We expressly disclaim all warranties including but not limited to implied warranties of merchantability and fitness for a particular purpose.

(d) Manufacturer warranties: Certain products, including particular models of IP security cameras and DVR/NVR equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is in addition to but may overlap with any rights and remedies you may have under applicable law, including any Consumer Guarantees. If you are not considered a “consumer” within the meaning of the ACL, the manufacturer’s warranty may be your sole remedy. You should check the manufacturer’s warranty, as many manufacturers’ warranties do not apply in a business or commercial setting. Please contact the manufacturer if you would like to make a claim under the manufacturer’s warranty.

(e) Repair, replacement or a refund: If you wish to seek repair, replacement or a refund for a product, please contact us and we will explain the requirements to you. This may include you providing evidence of the faulty product to us.

(f) Refund: You are not entitled to a refund for change of mind. If you are entitled to a refund, we will only give you the refund once evidence of faulty product is received by us, or we have received the product at our warehouse and inspected it and assessed whether it is eligible for a refund under these Terms. Any refund we make will be by the same payment method used to purchase the product.

(g) Installed: Subject to this clause, we will not accept for return any product that has been used, connected, installed, attempted to be connected or installed, or if your product is custom-made or is a special buy product.

(h) Packaging: You must adequately package any product you are returning for our collection to ensure that it is not damaged during return delivery to our warehouse. You are also responsible for arranging the return delivery and the costs involved.

(i) Duty of care: You have a duty of care for the product while it is in your possession. If you damage products, then subsequently return the products, you may be liable to pay to repair the product to its original condition. In these circumstances, where a repair is not economically viable, no refund will be made.

More Terms & Conditions here – https://www.securitywholesalers.com.au/terms-and-conditions/

Specification

Camera
Image Sensor 1/2.7” 8Megapixel progressive CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100, 000 s
Min. Illumination 0.009 Lux@F2.0
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm 3.6 mm
Max. Aperture F2.0

F2.0

Field of View 2.8 mm: Horizontal 105° × Vertical 56° × Diagonal 125°

3.6 mm: Horizontal 87° × Vertical 47° × Diagonal 104°

Iris Type Fixed
Close Focus Distance 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)
Smart event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability 2 streams
Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Storage FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IE

Chrome

Firefox

Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 5.5W
Environment
Operating Conditions –40°C to +60°C (–40°F to +140°F)/less than ? 95% RH
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 166.2 mm × ?70 mm (6.54″ × ?2.76″)
Net Weight 0.48 kg (1.1 lb)
Gross Weight 0.57 kg (1.3 lb)

Sample Videos

Day time – cars driving by

Night

Night

Early morning

Sample 8MP Videos from a similar Dahua camera
