-6%
, , , , , , , , , , ,

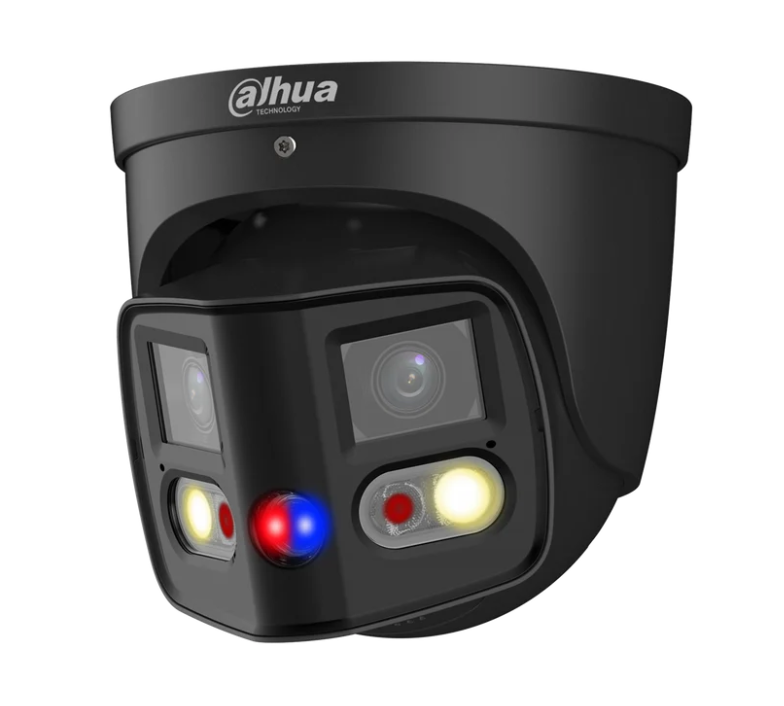

Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ-BLK TIOC Duo Splicing Turret Fixed camera BLACK

8 Megapixel cameras | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

High clarity Starlight Technology: Built-in warm light and IR LED: IR illumination distance is 25m and warm light distance is 20 m.–  Outputs max. 8 MP (4096 × 1860)@20 fps.

Smart Motion Detection (SMD Plus) – 4.0 detects humans and vehicles with high accuracy, reducing false alarms.

Intelligent Detection & Perimeter Protection – Intelligent monitoring includes Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

Sound and light alarm with built in mic and speakers – flashes red and blue lights.

Now with smart Dual Illuminators. The TIOC camera can monitor at night with infrared and when motion is detected activate its auxiliary illuminator light for full Colour recording. – This camera has BOTH ILLIMINATOR AND INFRA RED!







IPC-PDW3849-A180-AS-PV_S0_datasheet_20230725

$535.00 $571.00 inc GST +3 Year Warranty & Support

> Outputs 180 wide angle splicing image.
> Outputs max. 8 MP (4096 x 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights)
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input

Camera

Image Sensor

Dual 1/2.7″ CMOS

Max. Resolution

4096 (H) × 1860 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)

0.0005 lux@F1.4 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 25 m (82.02 ft) (IR LED)

Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–77°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Field of View

Horizontal: 180°; Vertical: 86°

Max. Aperture

F1.4

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

50.6 m (166.01 ft)

20.2 m

(66.27 ft)

10.1 m

(33.14 ft)

5.1 m

(16.73 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

EPTZ

Enlarge and track the targets of intelligent alarms

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+;

Smart H.264+

AI Coding

AI H.265;

AI H.264

Video Frame Rate

Main stream: 4096 × 1860@(1–20 fps )

Sub stream: 1200 × 530@(1–20 fps)

Third stream: 1920 × 860@(1–20 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 6 kbps –16384 kbps

H.265: 6 kbps –16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Privacy Masking

4 areas

Defog

Yes

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 8 and later
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3 V–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 3.95 W (12 VDC); 4.95 W (PoE)

Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

Φ122 mm × 135.2 mm (Φ4.80″ × 5.32″ )

Net Weight

990 g (2.18 lb)

Gross Weight

1150 g (2.54 lb)
SKU: DH-IPC-PDW3849-A180-AS-PV-ANZ-BLK Categories: , , , , , , , , , , , Tag:

Specifications

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 91.0 m (298.56 ft) 36.4 m

( 119.42 ft)

 18.2 m

(59.71 ft)

 9.1 m

(29.86 ft)
3.6 mm 107.6 m (353.02 ft) 43.0 m

( 141.08 ft)

 21.5 m

(70.54 ft)

 10.8 m

(35.43 ft)
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight 745 g (163.1 lb)
Gross Weight 915 g (200.6 lb)
