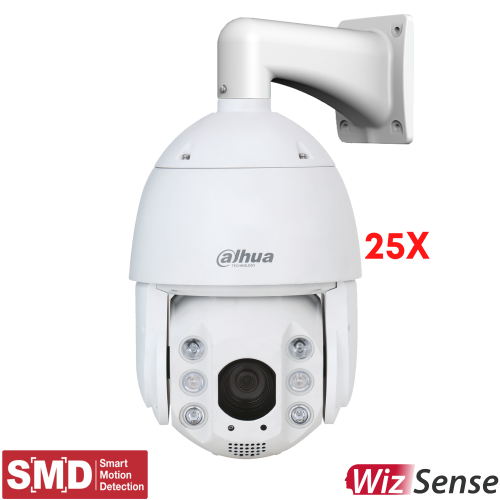

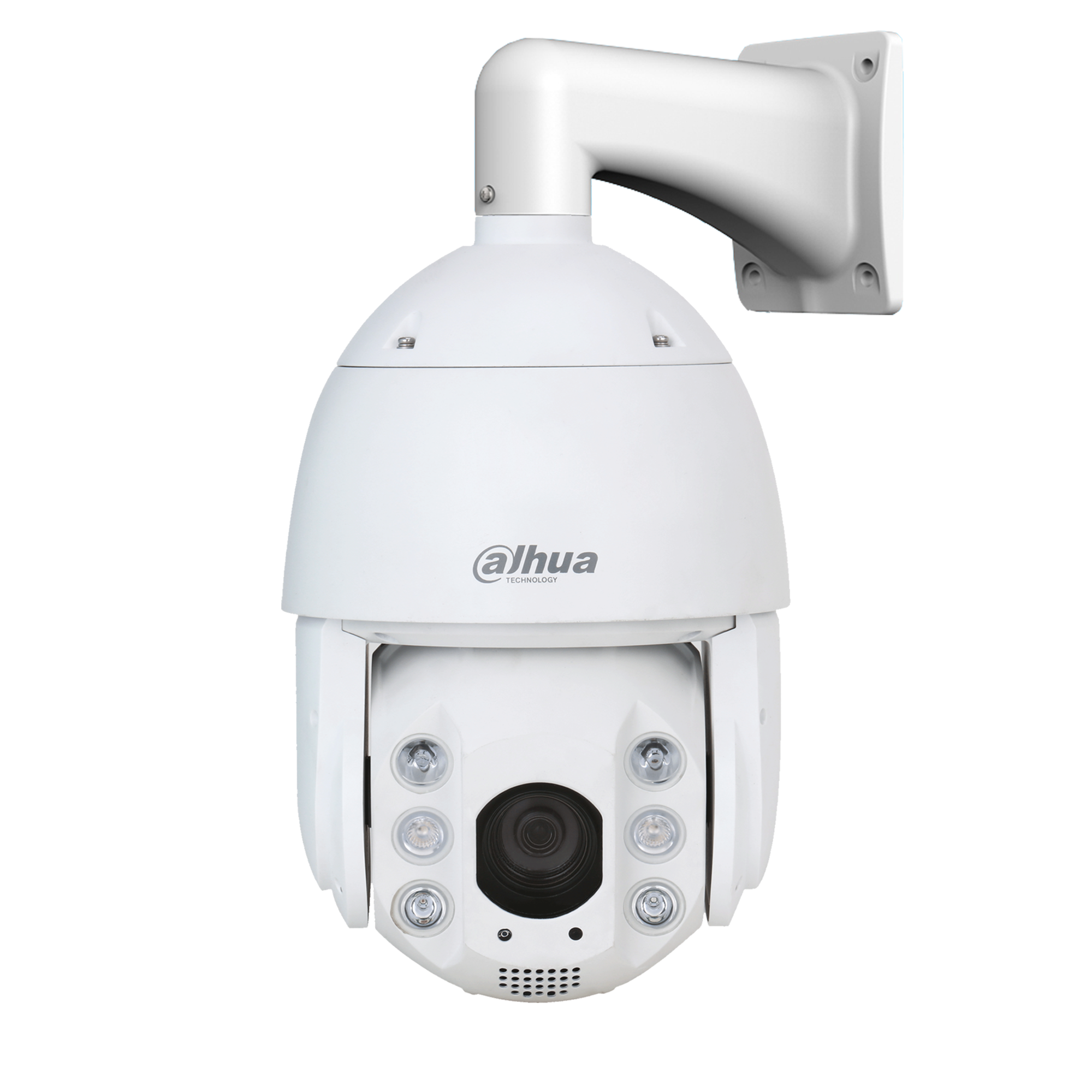

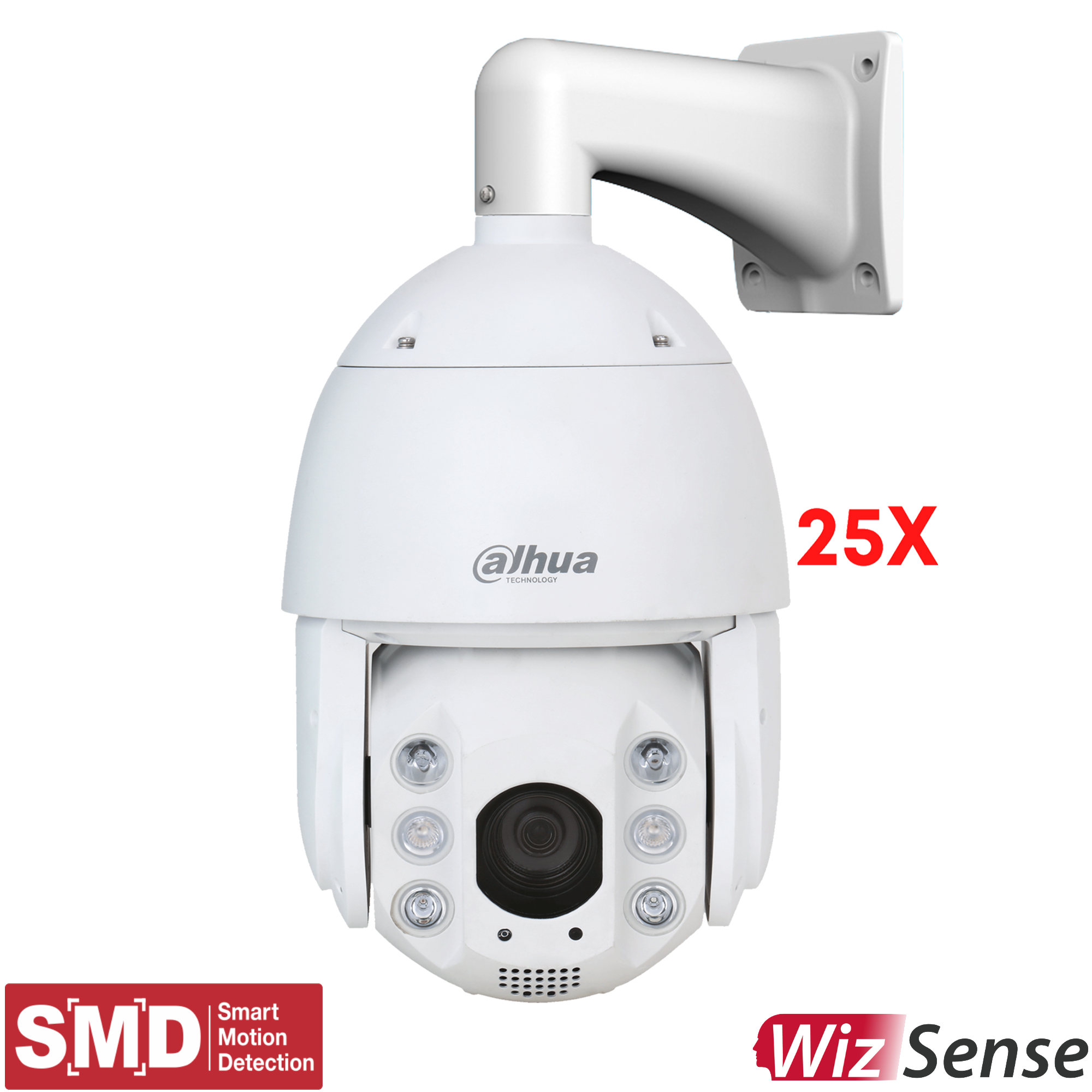

Dahua DH-SD6C3425XB-HNR-A-PV1 4MP TIOC 2.0 IP 25X PTZ Camera IR 150m

4MP 25x Starlight IR WizSense Network PTZ Camera

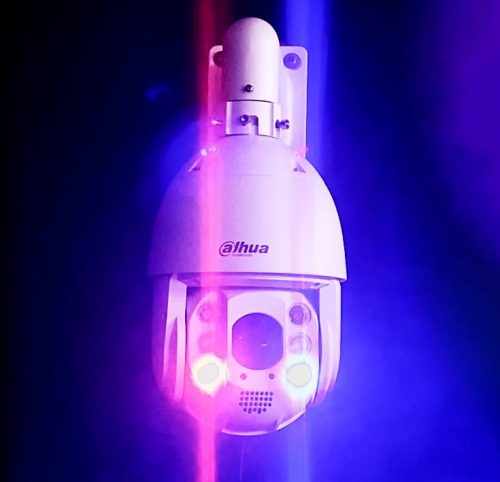

The camera supports the red and blue light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in the alarm voice, and supports customized voice importing.

1/2.8″ 4Megapixel STARVIS™ CMOS
> Powerful 25x optical zoom
> Starlight technology
> IR distance up to 150 m
> Perimeter protection
> Face detection
> Metadata
> Full-color illuminator; red and blue warning light
> IP66
> Smart dual illuminators (recommended to use within 50 m)

SD6C3425XB-HNR-A-PV1_datasheet

$1,080.00 $1,226.00 inc GST +3 Year Warranty & Support

Camera
Image Sensor 1/2.8″ CMOS
Pixel 4 MP
Max. Resolution 2560 (H) Ɨ 1440 (V)
Electronic Shutter Speed 1/1 sā€“1/30,000 s
ROM 4 GB
RAM 1 GB
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
Illumination Distance 150 m (492.13 ft) (IR)
50 m (164.04 ft) (white light)
Illuminator Number 2 (IR light)
2 (dual light fusion)
Lens
Focal Length 4.8 mmā€“120 mm
Max. Aperture F1.6ā€“F3.5
Field of View H: 55.8Ā°ā€“2.9Ā°; V: 31.6Ā°ā€“1.6Ā° ; D: 63.7Ā°ā€“3.3Ā°
Optical Zoom 25Ɨ
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.8 mā€“5.0 m (2.62 ftā€“16.40 ft)
Iris Control Auto; manual
DORI Distance Detect Observe Recognize Identify
1,655 m (5,429.79 ft) 653 m (2,142.39 ft) 331 m (1,085.96 ft) 165 m (541.34 ft)
PTZ
Pan/Tilt Range Pan: 0Ā° to 360Ā° endless
Tilt: ā€“20Ā° to +90Ā°, auto flip 180Ā°
Manual Control Speed Pan: 0.1Ā°/sā€“160Ā°/s

Tilt: 0.1Ā°/sā€“60Ā°/s
Preset Speed Pan: 240Ā°/s; Tilt: 150Ā°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset; Tour; Pattern; Scanning
PTZ Protocol DH-SD
Pelco-P/D (auto recognition)
Intelligence
Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
IVS (Perimeter Protection) Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection Yes
SMD Yes
Auto Tracking Yes
Active Deterrence
Light Warning Red and blue warning light

Flash duration: 5 sā€“30 s

Flash frequency: High, medium, low
Sound Warning Sound warning alarm: Customizable
Video
Video Compression Smart H.265+; H.265; Smart H.264+; H.264B; H.264H; MJPEG
Streaming Capability 3 streams
Resolution 4M (2560 Ɨ 1440); 3M (2048 Ɨ 1536); 1080p (1920 Ɨ 1080); 1.3M (1280 Ɨ 960); 720p (1280 Ɨ 720); D1 (704 Ɨ 576); CIF (352 Ɨ 288)
Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p (1ā€“50/60 fps)

Sub stream 1: D1/CIF (1ā€“25/30 fps)

Sub stream 2: 1080p/1.3M/720p (1ā€“25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate Default resolution of the main stream:
H264: 2816 kbpsā€“8192 kbps
H265: 1024 kbpsā€“7936 kbps
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; manual; tracking; indoor; outdoor; outdoor auto; sodium lamp; sodium lamp auto
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization EIS
Defog Electric
Digital Zoom 16Ɨ
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view; supports multiple colors and mosaic blocks
S/N Ratio ā‰„ 55 dB
Audio
Audio Compression G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2-Layer2; G723; PCM
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP;

DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP;

SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP;

PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS
User/Host 20 (total bandwidth: 64 M)
Interoperability ONVIF (Profile S&G&T)
Storage FTP; Micro SD card (256 GB); NAS
Browser IE 7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari
Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS; player; configtool; NVR; Smart Player
Mobile Client iOS; Android; iPhone; iPad; Windows Phone
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio Input 1 (LINE IN; bare wire)
Audio Output 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))
Alarm Input 2-ch, digital input (0ā€“5 VDC)
Alarm Output 1-ch
Alarm Linkage Capture; preset; tour; pattern; recording; alarm digital input; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply 24 VDC, 2.5 A (Ā± 25%) (included)
PoE+ (802.3at)
Power Consumption Basic: 13 W
Max.: 23 W (illuminator + red and blue warning light+speaker + PTZ working)
Environment
Operating Temperature ā€“40 Ā°C to + 70 Ā°C (ā€“40 Ā°F to + 158 Ā°F)
Operating Humidity ā‰¤ 95%
Protection IP66; TVS 6000 V lightning proof; surge protection;

voltage transient protection
Structure
Casing ADC12
Product Dimensions 325.3 mm Ɨ Ī¦202.0 mm (12.81″ Ɨ Ī¦7.95″) (H Ɨ D)
Net Weight 4.6 kg (10.14 lb)
Gross Weight 9.1 kg (20.06 lb)
SKU: DH-SD6C3425XB-HNR-A-PV1 Categories: , , , , , , , Tag:
