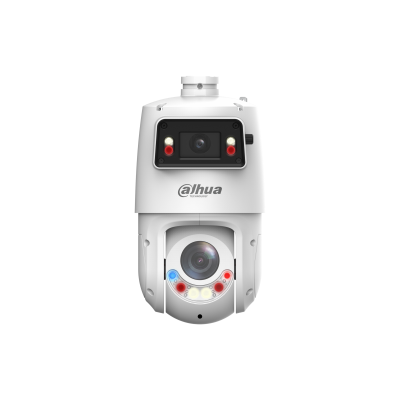

Dahua DH-SDT4E425-4F-GB-A-PV1 X-Spans 4MP+4MP 25x TiOC WizSense Network PTZ Camera

> Panorama: 1/2.8” 4Megapixel F1.0 CMOS
> Detail: 1/2.8” 4Megapixel STARVIS CMOS
> 25x optical zoom
> Max. 25/30fps@4M
> IR distance up to 100 m
> Auto tracking 3.0
> Smart tracking
> Perimeter protection
> Active deterrence
> Smart dual light +

$955.00 inc GST +3 Year Warranty & Support

The Dahua SDT4E425-4F-GB-A-PV1 PTZ Camera from the X-Spans Series offers a superior surveillance solution with its advanced features and robust design. Equipped with a 4MP CMOS sensor and a powerful 25x optical zoom lens, this camera delivers crystal-clear, high-definition video, capturing even the smallest details with precision. Its Starlight technology ensures outstanding low-light performance, providing clear images in environments with minimal illumination. The camera’s smart tracking capability enables automatic tracking of moving objects, enhancing security by keeping an eye on critical areas. Additionally, intelligent video analysis features such as tripwire, intrusion detection, and abandoned/missing object detection, make it a versatile tool for comprehensive monitoring. The rugged construction, with an IP66 rating, ensures that the camera can withstand harsh weather conditions, making it suitable for both indoor and outdoor applications. With PoE+ (Power over Ethernet) support, installation is simplified, reducing the need for additional cabling. The Dahua SDT4E425-4F-GB-A-PV1 PTZ Camera is an ideal choice for those seeking reliable, high-performance surveillance with advanced analytical capabilities.

This PTZ camera boasts impressive features designed to enhance surveillance capabilities. Equipped with a 1/2.8″ 4Megapixel F1.0 CMOS sensor for panoramic views and a 1/2.8″ 4Megapixel STARVIS™ CMOS sensor for detailed imaging, it ensures exceptional clarity. The 25x optical zoom allows for close-up inspections without losing quality, while the camera supports up to 25/30 frames per second at 4M resolution for smooth video playback. The infrared (IR) distance reaches up to 100 meters, providing clear visibility even in low-light conditions. Advanced tracking capabilities include Auto Tracking 3.0 and Smart Tracking, which follow subjects with precision. Perimeter protection and active deterrence features enhance security by preventing unauthorized access and deterring potential intruders. Additionally, the Smart Dual Light + technology delivers superior visibility and image quality, making this PTZ camera a robust solution for comprehensive surveillance needs.

Camera

Image Sensor

Panorama: 1/2.8″ CMOS;

Detail: 1/2.8″ CMOS

Pixel

Panorama: 4 MP;

Detail: 4 MP

Max. Resolution

Panorama: 2560 (H) × 1440 (V);

Detail: 2560 (H) × 1440 (V)

ROM

Panorama: 4 GB;

Detail: 4 GB

RAM

Panorama: 1 GB;

Detail: 1 GB

Electronic Shutter Speed

Panorama: 1/3s-1/100000s;

Detail: 1s-1/30000s

Scanning System

Progressive

Min. Illumination

Panorama: 0.001 lux@F1.0 (Color, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on);

Detail: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)

Illumination Distance

Panorama: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light);

Detail: 100 m (328.08 ft) (IR) 50 m (164.04 ft) (white light)

Illuminator On/Off Control

Panorama: Auto; Manual; Off;

Detail: Zoom Prio; Auto; Manual; Off

Illuminator Number

Panorama: 2 (IR); 2 (white light);

Detail: 2 (IR); 2 (dual light Fusion)

Lens

Focal Length

Panorama: 2.8 mm;

Detail: 5 mm–125 mm

Max. Aperture

Panorama: F1.0;

Detail: F1.6–F3.6

Field of View

Panorama: H: 101°; V: 53°; D: 120°;

Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom

Panorama: NA;

Detail: 25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

Panorama: 0.2 m (0.66 ft);

Detail: 0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

2500 m

(8202.10 ft)

987.5 m (3239.83 ft)

500 m

(1640.42 ft)

250 m (820.21 ft)

PTZ

Pan/Tilt Range

Panorama camera: Tilt: 13° to 23°;

Detail camera: Pan: 0° to 360° endless; Tilt: –15° to 90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–200°/s;
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s;
Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linking the detail camera to track objects

Auto Tracking

Yes

SMD

SMD4.0

Quick Pick

Yes

Active Deterrence

Light Warning

Red-blue light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarms and supports importing custom sound alarms.

Video

Video Compression

H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); smart H.265+; smart H.264+

Streaming Capability

3 streams

Resolution

Panorama:
4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240)
Detail:
4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4 MP/3 MP/1080p/1.3 MP/720p@(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@(1–25/30 fps)
Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96 Kbps–14848 Kbps
H265: 38 Kbps–8960 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

ONVIF(Profile S&G&T);CGI;SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Input

2 (on-off value input: 0–5 VDC)

Alarm Output

1

Alarm Linkage

Capture; recording; send email; preset; tour; pattern; alarm digital input; audio; warning light

Alarm Event

Motion/tampering detection; audio detection;
network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 3 A ± 10%;
PoE+ (802.3at)

Power Consumption

Basic: 12 W

Max. (Basic power consumption + illuminator+sound and light warning +PTZ operation + Heater ): 25 W (12 VDC)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤ 95%

Protection

TVS 6000 V lightning proof;IP66; surge protection; voltage transient protection

Structure

Product Dimensions

160.0 mm × 184.4 mm × 304.6 mm (6.30″ × 7.26″ × 11.99″)(L × W × H)

Net Weight

3.41 kg (7.52 lb)



NETWORK CAMERA
MEGAPIXELS 4MP * 2
CAMERA STYLE PTZ
COLOUR White
LENS TYPE Motorised
TECHNOLOGY PTZ SERIES
POE POE+
