The Dahua DHI-ARD1731-W2 Wireless PIR Camera is a cutting-edge security solution designed for efficient surveillance. Featuring a sleek and compact design, this camera integrates seamlessly into various environments while providing robust performance. It utilizes passive infrared technology to detect movement, ensuring prompt alerts when activity is detected. With its wireless connectivity, installation is hassle-free, allowing for flexible placement without the need for extensive wiring. The camera offers high-definition video quality, delivering clear and detailed footage even in low-light conditions.
Built-in two-way audio capability enables real-time communication, enhancing security management. Users can conveniently access live feeds and recordings through the Dahua mobile app, ensuring constant vigilance from anywhere. The DHI-ARD1731-W2 is equipped with advanced motion detection features, minimizing false alarms and increasing reliability. Its weatherproof design ensures durability against various environmental conditions, making it suitable for both indoor and outdoor use. This camera represents an excellent choice for those seeking enhanced security and peace of mind.
Key Features
Maximum resolution: 1600 x 1200.
Based on RF-HD image transmission technology, transmission of 6 HD images with a resolution of 1600 x 1200 takes up to 10 seconds.
One-week cloud cache for videos and images.
Temperature monitoring.
Offers frequency hopping and two-way communication technology, ensuring stable communication.
Cloud update and automatic recovery from update failure.
The Dahua DHI-ARD1731-W2 Wireless PIR-Camera is designed to enhance security with its advanced features and capabilities. It boasts a maximum resolution of 1600×1200 pixels, ensuring clear and detailed image capture when an intrusion is detected. Utilizing RF-HD image transmission technology, the camera can send up to six high-definition images in just ten seconds, making it responsive to security events. It also includes a one-week cloud cache for storing video and image data, facilitating easy access and review. Temperature monitoring is integrated into the device, adding another layer of functionality for environmental awareness.
The camera supports two-way communication and frequency hopping, which enhances the stability of its wireless connections. With a built-in CMOS sensor, it captures snapshots only during security events, thereby protecting user privacy. The device operates effectively in various settings, including residential homes, offices, and retail spaces, thanks to its wide field of view of 88° horizontally and 68° vertically. It also features an impressive detection range of up to 12 meters, accommodating movement speeds between 0.3 m/s and 3 m/s. Additionally, the camera has a pet immunity level, allowing it to distinguish between pets and potential intruders, which minimizes false alarms.

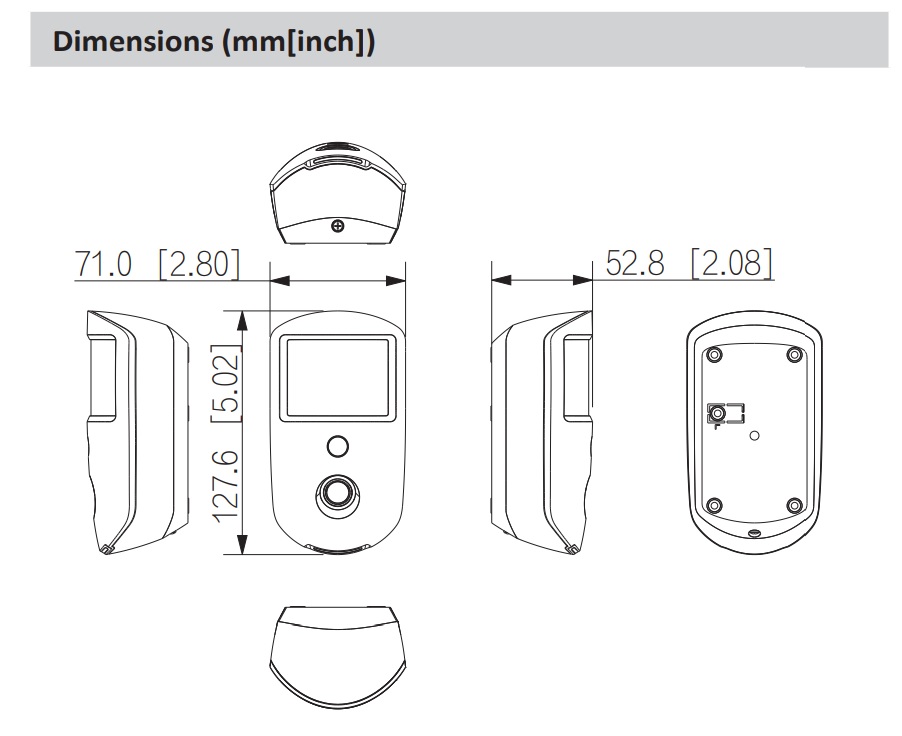

Dimension

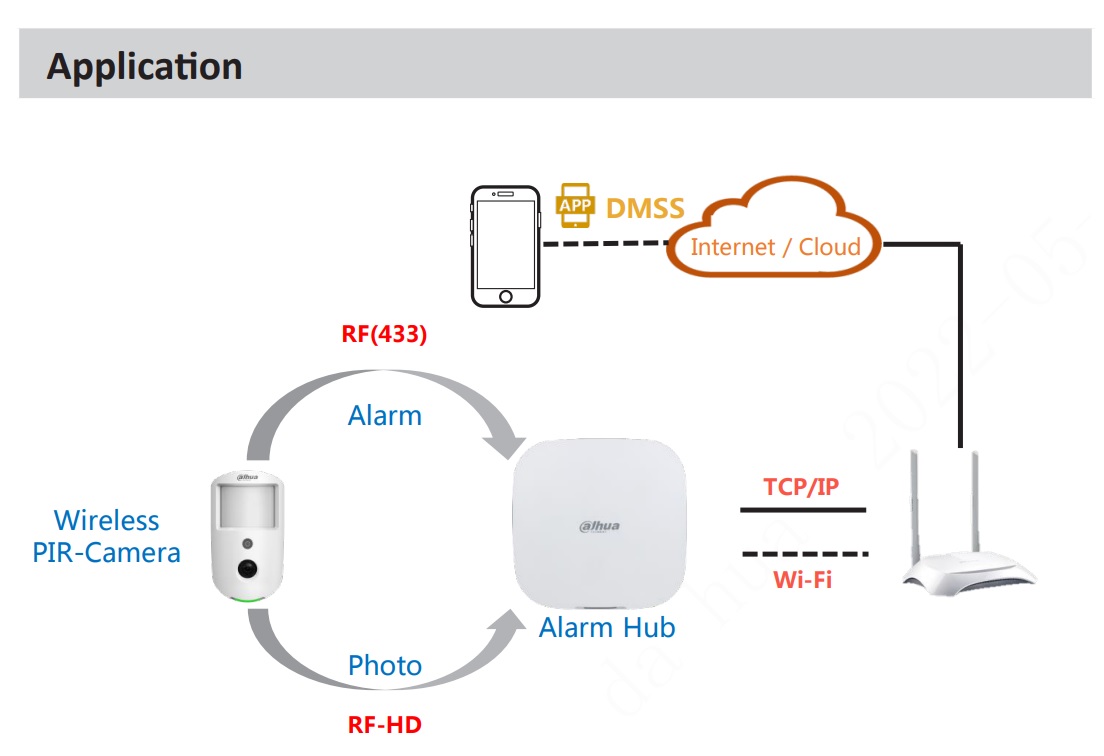

Application
Technical Specifications
Video
Field of View
88° (H);68° (V)
Image Type
JPEG
Resolution
1600 × 1200; 1280 × 960; 640 × 480; 320 × 240
Frame Rate
2
Illumination Mode
Infrared Light
Illumination Range
12 m (39.37 ft)
Day/Night Switch
Color/Black & White
Function
Indicator Light
1 × green alarm indicator
Button
1 × power switch
Remote Update
Cloud update
Low Battery Detection
Yes
Battery Level Display
Yes
Tamper
Tamper alarm
Signal Strength
RF Signal test
RF-HD signal test
Technical
Detection Mode
PIR
Sensitivity
3 levels adjustable
Detection Range
12 m (39.37 ft) (86°) with installation height of 2.2 m (7.22 ft)
Detection Speed
0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level
≤18 kg (39.68 lb)
White Light Resistance Level
2000 lux
Two-way Digital Temperature Compensation
Yes
Scenario
Max 2 A, 65 uA (Standby), battery 3 V
Operating Current
65 μA
Wireless
Carrier Frequency
RF:433.1 MHz–434.6 MHz
RF-HD:2.4GHz
Transmitter Power (EIRP)
Limit 10 mW
Communication Distance
RF: Up to 1,200 m (3,937.01 ft) in an open space
RF-HD: Up to 300 m (984.25 ft) in an open space
Communication Mechanism
Two-way
Frequency Hopping
Yes
Encryption Mode
AES128
Wifi
Wi-Fi Standard
802.11b/g/n
Wi-Fi Frequency Range
2400–2483.5 MHz
Wi-Fi Power Transmission
CE EIRP: ≤20 dBm@2400–2483.5 MHz
FCC Output Power: ≤30 dBm@2400–2483.5 MHz
General
Power Supply
CR123A*3
Battery Life
4 years (if triggered twice a week with a battery efficiency of 70%)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity
10%–90% (RH)
Product Dimensions
71.0 mm × 53.2 mm × 127.6 mm (2.80″ × 2.09″ × 5.02″)
Packaging Dimensions
121.0 mm × 65.0 mm × 170.0 mm (4.76″ × 2.56″ × 6.69″)
