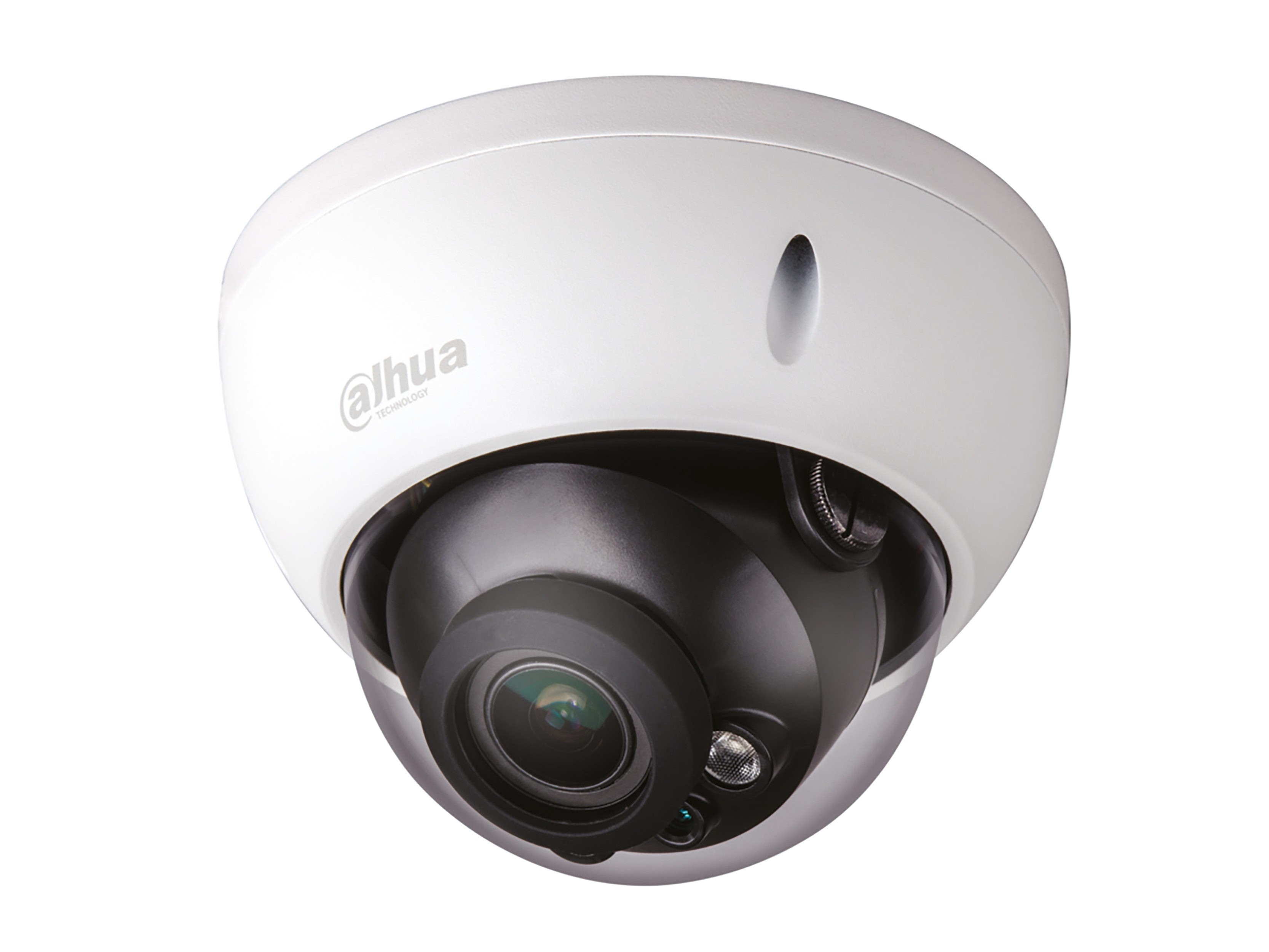

Dahua HAC-HDBW2501RP-Z-27135 5MP Starlight Pro HDCVI IR Vandal Dome, WDR,ICR, Motorised 2.7~13.5mm,IR 30m

> Starlight, 120dB true WDR, 3DNR
> Max. 20fps@5MP
> HD/SD output switchable
> Audio in interface
> 2.7-13.5mm motorized lens
> Max. IR length 30m, Smart IR
> IP67, IK10, DC12VĀ±30%

HAC-HDBW2501R-Z DATASHEET

$217.00 inc GST +3 Year Warranty & Support

Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 2592(H)Ɨ1944(V), 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s
Minimum Illumination 0.005Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Motorized lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-13.5mm
Max Aperture F1.3
Angle of View H: 102Ā°~29Ā°
Focus Control Auto / Manual
Close Focus Distance 200mm

7.87″
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0Ā° ~ 355Ā°

Tilt: 0Ā° ~ 75Ā°

Rotation: 0Ā° ~ 355Ā°
Video
Resolution 5MP (2592Ɨ1944)
Frame Rate 20fps@5MP,Ā 25/30fps@4MP, 25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
DORI Distance
Note: The DORI distance is a ā€œgeneral proximityā€ of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

 Distance
Wide Tele
Detect 25px/m (8px/ft) 64m(210ft) 222m(728ft)
Observe 63px/m (19px/ft) 26m(85ft) 89m(292ft)
Recognize 125px/m (38px/ft) 13m(43ft) 44m(144ft)
Identify 250px/m (76px/ft) 6m(20ft) 22m(72ft)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface 1ch in
Eelectrical
Power Supply 12V DC Ā±30%
Power Consumption Max. 8.8W (12V DC, IR on)
Environmental
Operating Conditions -30Ā°C ~ +60Ā°C (-22Ā°F ~ +140Ā°F) / Less than 90% RH

* Start up should be done at above -30Ā°C (-22Ā°F)
Storage Conditions -30Ā°C ~ +60Ā°C (-22Ā°F ~ +140Ā°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67 & IK10
Construction
Casing Aluminium
Dimensions Ī¦122mmƗ88.9mm (Ī¦4.8″Ɨ3.5″)
Net Weight 0.46kg (1.0lb)
Gross Weight 0.63kg (1.38lb)
SKU: HAC-HDBW2501RP-Z-27135 Categories: , , , ,
