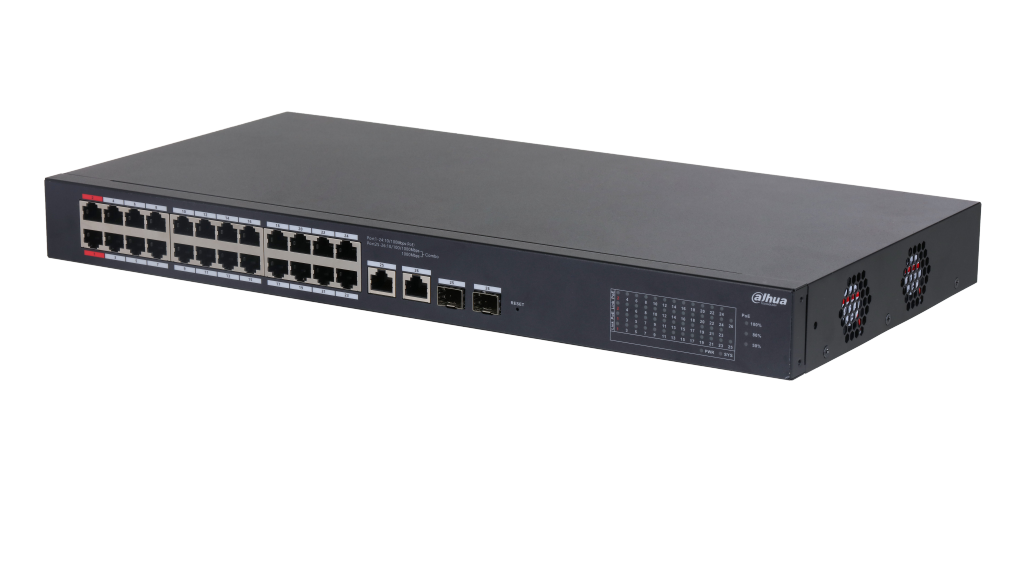

Dahua DH-CS4226-24ET-375 26-Port Cloud Managed Desktop Switch with 24-Port PoE
, ,

Dahua DH-CS4226-24ET-375 26-Port Cloud Managed Desktop Switch with 24-Port PoE

The DH-CS4226-24ET-375 is a dedicated PoE switch for security industry, which is different from general switch. PoE management function realizes power control and real-time port consumption display. It’s widely used in surveillance project. DH-CS4226-24ET-375 also provides 250 meters long distance PoE transmission and ‘orange port’ for Hi-PoE powered device.

Spec sheet

$500.00 $540.00 inc GST +3 Year Warranty & Support

  • Technical Specifications

    Hardware
    Included Power Adapter Yes
    PoE Yes
    Ethernet Port 24
    Ethernet Port Speed 10/100 Mbps
    Optical Port Speed 1000 Mbps
    Ethernet Port Uplink Speed 10/100/1000 Mbps
    Optical Port Uplink Speed 1 Gbps
    Description of Function Slots Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo)
    Reset Button 1
    Power Supply Built-in power supply: 100-240 VDC, 47-63 Hz, max 7 A
    Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
    Operating Humidity 5%–95% (RH), non-condensing
    Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
    Storage Humidity 5%–95% (RH), non-condensing
    Power Consumption Idling: ≤8.5 W ; Full load: 400 W
    Performance
    Layer Layer 2
    Management Type Yes
    Smart Managed Switch Yes
    MTBF 64.20 years
    Switching Capacity 8.8 Gbps
    Packet Forwarding Rate 6.55 Mpps
    Packet Buffer Size 4 Mbit
    Jumbo Frame 15K Byte
    MAC Table Size 8K
    VLAN Number 32
    Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z
    Feature
    PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
    PoE Power Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
    PoE Power Consumption Management Yes
    PoE Pin Assignment 1,2,4,5（V+）,3,6,7,8（V-）
    Long Distance PoE Transmission Yes
    VLAN Function Port-based VLAN
    IEEE 802.3x Flow Control Yes
    DHCP Function DHCP Client
    Equipment Management Web management; App management
    General
    Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV
    Lighting Protection Common mode: 4 kV; Differential mode: 2 kV
    Net Weight 2.62 kg (5.76 lb)
    Gross Weight 3.22 kg (7.08 lb)
    Product Dimensions 440 mm × 220 mm × 44 mm (17.32″ × 8.66″ × 1.73″) (L × W × H)
    Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26″ × 13.46″ × 3.54″) (L × W × H)
    Casing Material Sheet metal
    Installation Desktop mount; rack mount
SKU: DH-CS4226-24ET-375 Categories: , ,
