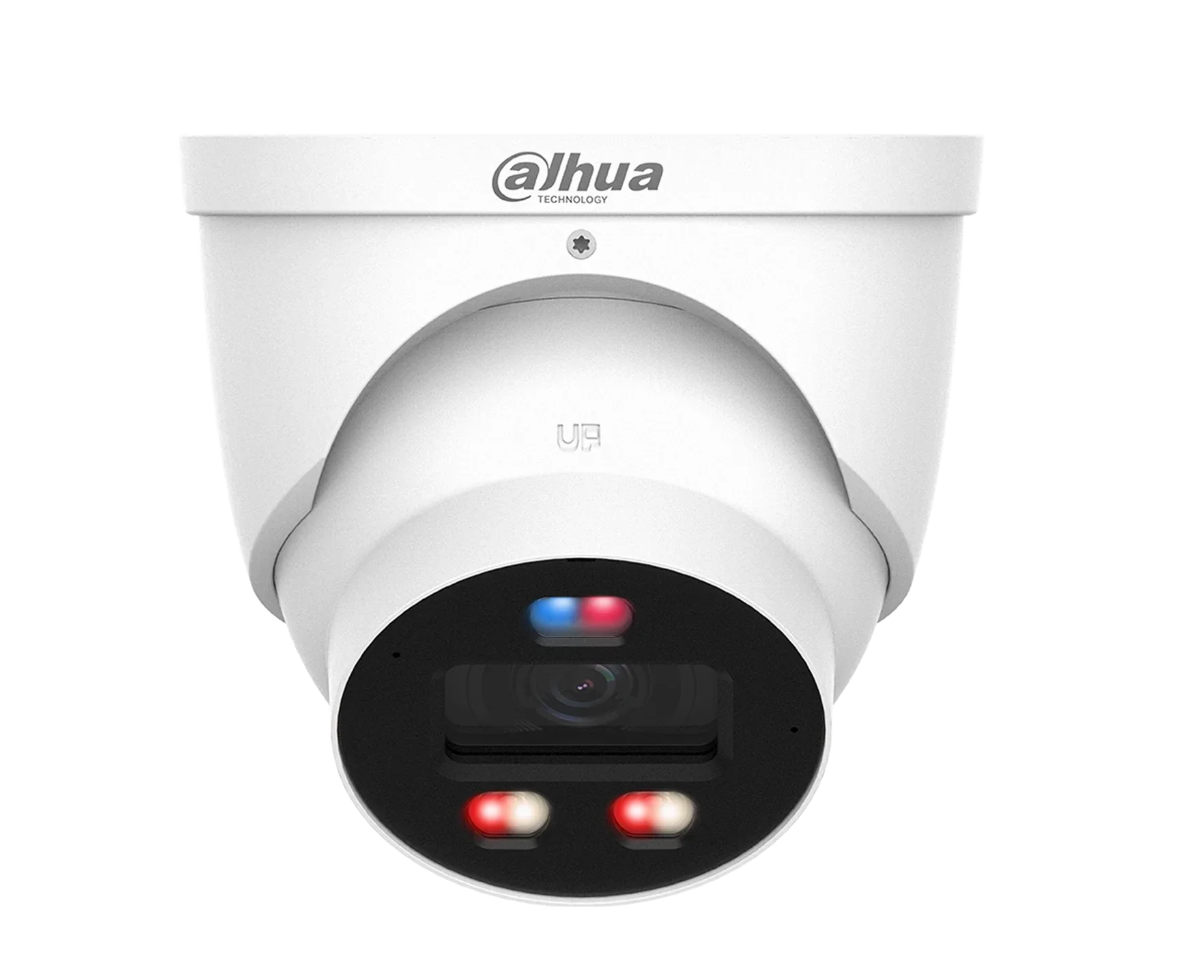

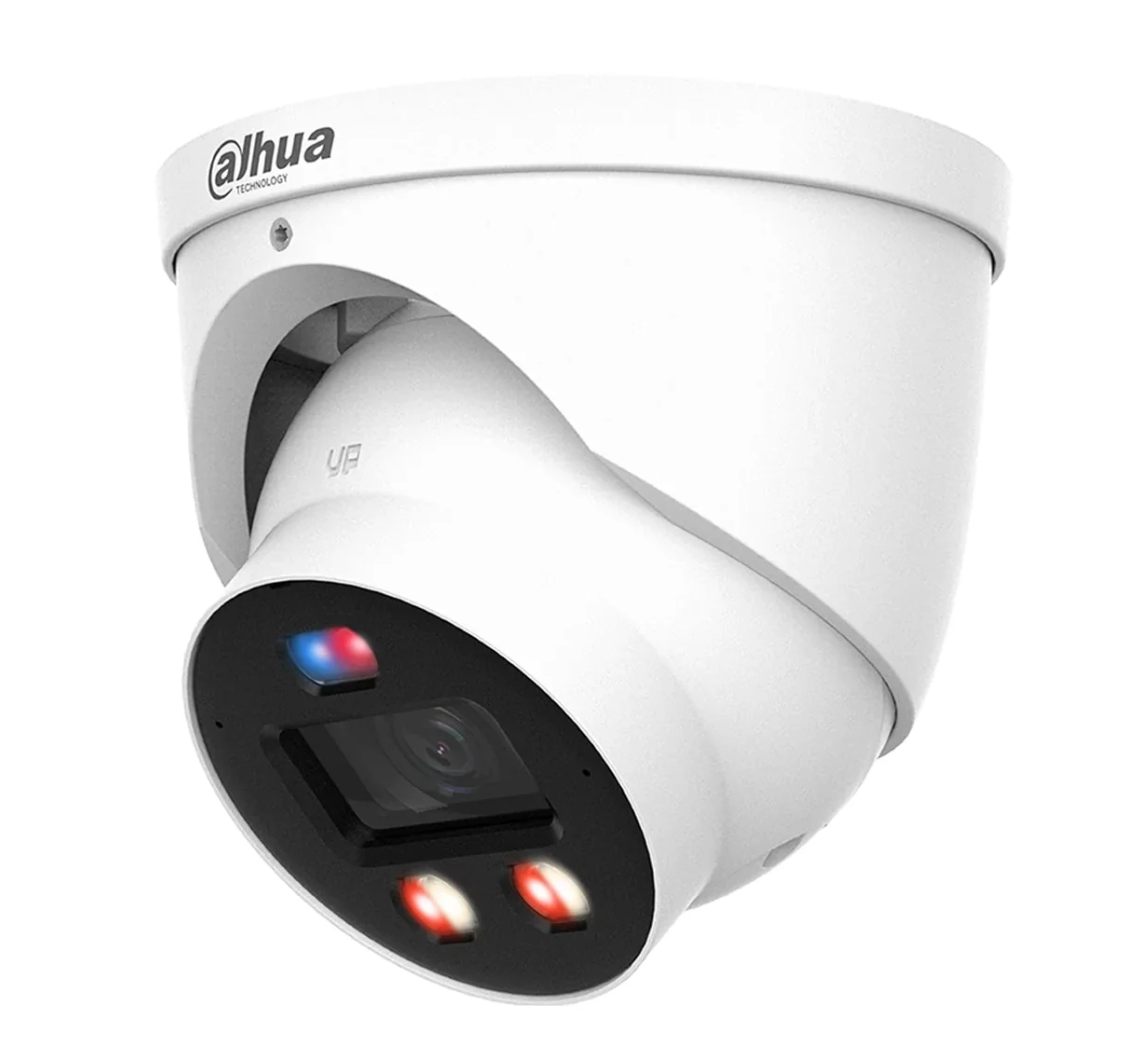

Dahua TIOC DH-IPC-HDW3849H-AS-PV-PRO-ANZ 8MP Acupick Active Deterrence Full color Starlight IP Turret Camera

The Dahua 8MP TiOC AcuPick Eyeball Camera combines cutting-edge AI detection, crystal-clear 4K resolution, and full-color night vision for ultimate security. Designed with smart dual lighting, active deterrence features, and two-way audio, this camera ensures proactive protection and real-time communication. Its durable IP67 weatherproof and IK10 vandal-resistant design makes it perfect for indoor and outdoor surveillance.

Highlights

  • 8MP Ultra HD Resolution: Stunning 4K image clarity.
  • AcuPick Technology: Precise human/vehicle detection.
  • Full-Color Night Vision: Crystal-clear imaging 24/7.
  • Active Deterrence: Built-in siren, speaker, and strobe light.
  • Smart Dual Lighting: Automatically adjusts to lighting conditions.
  • IP67 & IK10 Rated: Rugged for all environments.
  • H.265 Compression: Saves storage without compromising quality.
  • Two-Way Audio: Real-time communication through the camera.

Secure your home or business with the perfect blend of intelligence, clarity, and durability.













IPC-HDW3849H-AS-PV-PRO_S0_datasheet

Camera Dimensions

Operational Manual

Dahua Eyeball Network Camera_QSG_V1.0.0

$390.60 $465.00 inc GST +3 Year Warranty & Support

Key Features of Dahua 8MP TiOC AcuPick Eyeball Camera

1. High-Resolution Imaging

  • 8MP Resolution: Captures ultra-clear images at 4K UHD (3840 × 2160) resolution.
  • Fixed Lens: Equipped with a 2.8mm lens, offering a wide field of view for comprehensive surveillance coverage.

2. Advanced Smart Detection Technology

  • AcuPick Technology: Ensures precise human and vehicle detection, minimizing false alarms from irrelevant motion.
  • AI-Powered WizSense: Intelligent analysis for filtering and identifying targets efficiently.

3. True All-Conditions Monitoring

  • Full-Color Night Vision: Dual light technology (warm white and infrared) ensures vivid color imaging even in low-light or no-light conditions.
  • 120 dB WDR (Wide Dynamic Range): Balanced lighting to handle high-contrast scenes, ensuring clear image quality.

4. Active Deterrence

  • Built-In Speaker and Siren: Deters intruders with real-time audio alerts.
  • Strobe Light: A bright flashing light acts as an additional deterrent during detection events.

5. Audio and Visual Features

  • Built-In Mic and Speaker: Enables two-way audio communication directly via the camera.
  • Smart Dual Light: Automatically switches between infrared and warm white light for adaptable performance.

6. Robust Build for All Environments

  • IP67 Weatherproof Rating: Ensures reliability in outdoor environments, even in harsh weather conditions.
  • IK10 Vandal-Resistant: Designed to withstand impact and tampering.

7. Flexible Storage and Connectivity

  • Multiple Storage Options: Supports local storage with a microSD card slot (up to 256GB), NAS, or NVR.
  • Power over Ethernet (PoE): Simplifies installation by combining power and data over a single cable.

8. Additional Features

  • H.265 Compression: Saves bandwidth and storage while maintaining video quality.
  • Smart Motion Detection+: Enhanced accuracy for person and vehicle detection.

These Brackets may be useful, but not compulsory

ImageNamePriceBuy
Dahua DH-PFA137 Water-proof Junction Box
Dahua DH-PFA137 Water-proof Junction Box$15.00 inc GST +3 Year Warranty & Support

Dahua DH-AC-PFB205W-E Water-Proof Wall Mount Bracket
Dahua DH-AC-PFB205W-E Water-Proof Wall Mount Bracket$23.00 inc GST +3 Year Warranty & Support

Smart Dual Illumination: Switch between IR mode and white light when target is detected.

You can opt to use IR mode only until a target is detected to switch on the white light for FULL COLOR footage. Or! Keep the white light on at all times for continuous full-color monitoring.

Active Deterrence

Red and Blue Light: Noticeable even in dense fog and heavy rain.

Enhanced Sound Alarm: Two-way talk function (IPC supported), Speaker volume up to 110dB and optional configuration – wailing siren, recorded voice and customizable voices for different scenarios.

Real-time Push Notification: Visual alarm verification anytime, anywhere and one-tap app arming and disarming.

Accurate Alarm

TiOC offers accurate alarm function by precisely targeting people and vehicles, while filtering out non-target objects such as animals, leaves and car headlights. While keeping false alarm rate under 2%, its powerful AI algorithms also delivers a quicker, more accurate and longer range motion detection. (In HDCVI system, all AI functions are realized by XVR).





Commonly used NVRs for this camera

ImageNamePriceBuy
Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder
Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder$299.04 $356.00 inc GST +3 Year Warranty & Support
Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder
Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder$592.20 $705.00 inc GST +3 Year Warranty & Support



SKU: DH-IPC-HDW3849H-AS-PV-PRO-ANZ Categories: , , , , , , , , , , ,

Specifications

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 91.0 m (298.56 ft) 36.4 m

( 119.42 ft)

 18.2 m

(59.71 ft)

 9.1 m

(29.86 ft)
3.6 mm 107.6 m (353.02 ft) 43.0 m

( 141.08 ft)

 21.5 m

(70.54 ft)

 10.8 m

(35.43 ft)
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight 745 g (163.1 lb)
Gross Weight 915 g (200.6 lb)
