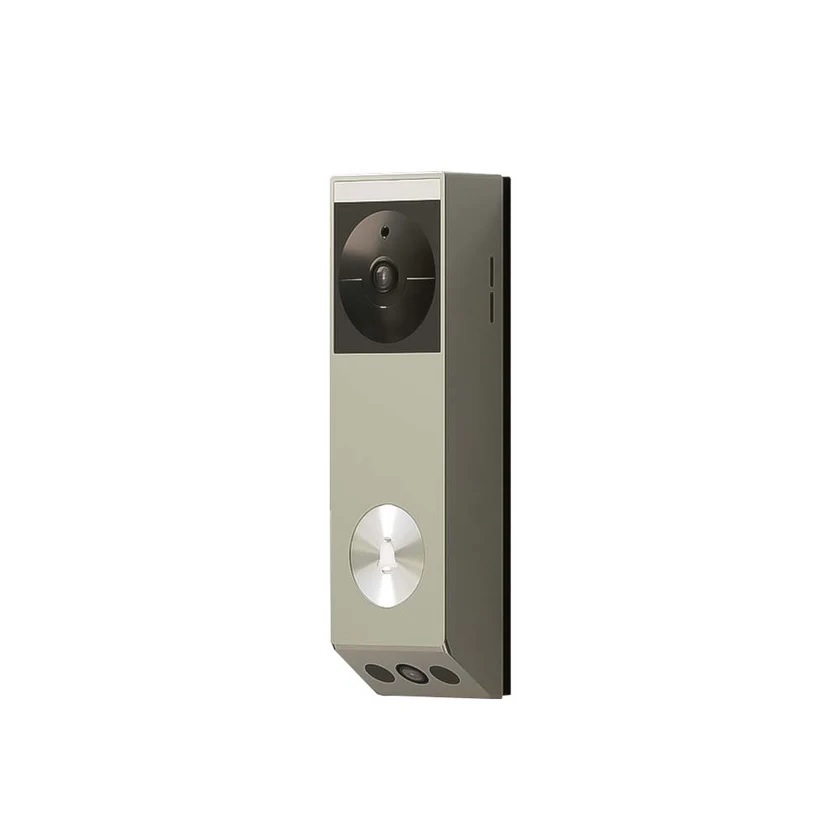

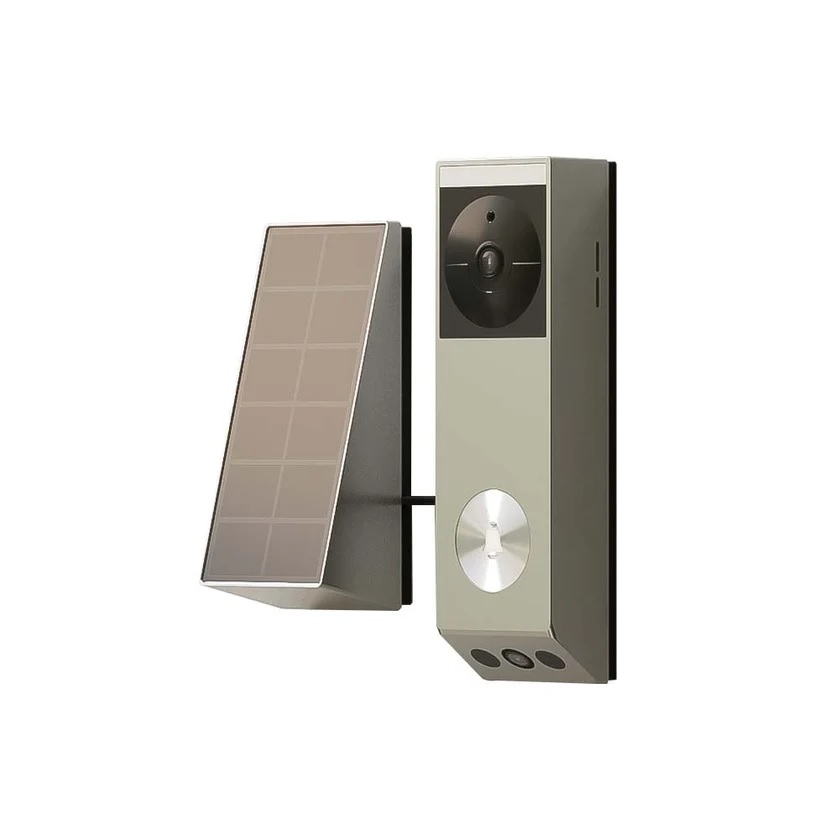

EZVIZ EP3X Dual Lens Doorbell Solar Panel Accessory, EMMC 32GB

The EZVIZ EP3x Pro is a 3MP/2K wireless video doorbell that offers high-quality video monitoring with dual-lens technology. This feature allows it to capture wide-angle, clear video footage from multiple angles. The doorbell is powered by a hybrid system, utilizing both a rechargeable battery and solar energy, providing reliable, continuous performance without frequent battery replacements. It is equipped with night vision, ensuring clear visibility even in low-light environments, and offers a 160-degree wide field of view for broader surveillance.

This smart video doorbell includes advanced motion detection, minimizing false alarms by differentiating between human movement and other objects. Real-time notifications allow users to monitor their doorstep from anywhere through the EZVIZ app, which also facilitates two-way audio communication. With seamless smart home integration, the EP3x Pro adds an extra layer of convenience and security to any household. The combination of its solar-powered functionality, high-resolution video, and intelligent features makes it a top choice for home security systems.

Double protection, half the trouble
Introduce EZVIZ’s first dual-lens video doorbell with unparalleled vision, complex detection features, and an easy solar charging option. Combining a 2K main camera and a 1080p bottom camera, the EP3x Pro detects both moving people and delivered packages to help you watch over your front door smartly. It’s a set-and-forget kit with free, built-in 32GB eMMC storage and the included solar panel for green energy.

A smart doorkeeper that knows what’s important
The EP3x Pro detects people, excluding wandering animals, and notifies you instantly—even before someone knocks. It also detects packages, so you won’t miss deliveries or risk them being taken.

2K clarity and color night vision
See who’s at the door vividly in 2K video, even in complete darkness. The EP3x Pro uses a built-in LED to brighten your hallway, delivering colorful night vision.

A truly easy kit that goes solar style
The battery-powered EP3x Pro can be mounted on any front door without electrical wiring, utilizing the included solar panel for green power. Plus, it offers the option for hardwiring in cloudy regions.

Save valuable moments at zero cost
No need for storage cards or subscription plans; the EP3x Pro features embedded 32GB eMMC storage, capable of storing up to six months of video history with just 10 minutes of daily recordings.

Hear the ring from the inside
For larger homes, pair the EP3x Pro with the EZVIZ CH15 chime. It offers adjustable ringtones and boosts the doorbell’s Wi-Fi signal for a stable connection.

Easy to use but hard to tamper with
If the doorbell is forcibly removed, a sharp alarm sounds, and you receive an instant mobile alert. The EP3x Pro also restricts unauthorized use after theft through account binding.

Specifications

Model	CS-EP3x Pro
Image Sensor	1/2.8″ Progressive Scan CMOS (Supports low light sensitivity)
Lens	Upper camera: 2.3mm @F/2.2 , diagonal field of view 162° Bottom camera: 2.3mm @F/2.2 , diagonal field of view 155°
Day & Night	ICR infrared filter type ( Max: 6 meters)
Video Parameters
Max. Resolution	Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080)
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	15fps.Fixed frame rate
PIR Sensor
Sensing Angle	120°
Sensing Distance	Max. 5 m (16.4 ft)
Sensitivity	Adjustable (High: 5 meter, Medium: 4 meter, and Low: up to 3 meter)
Storage
Local Storage	Built-in 32GB eMMC
Cloud Storage	EZVIZ CloudPlay storage
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	Doorbell button with electronic doorbell
Reset button	Yes
Network Parameters
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Function
Intelligent Alarm	AI-Powered Human Shape Detection, Package Detection
Tamper Alarm	Sound and light anti-dismantling alarm (Supports sending alerts via EZVIZ App)
Video Intercom	Two-Way talk
General
Operation Conditions	-20°C to 50°C, humidity 95% or less (non-condensing)
IP Grade	IP65
Size	166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch)
Battery Capacity	5200 mAh rechargeable lithium battery
Power Supply	8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel
Power Consumption	3W MAX

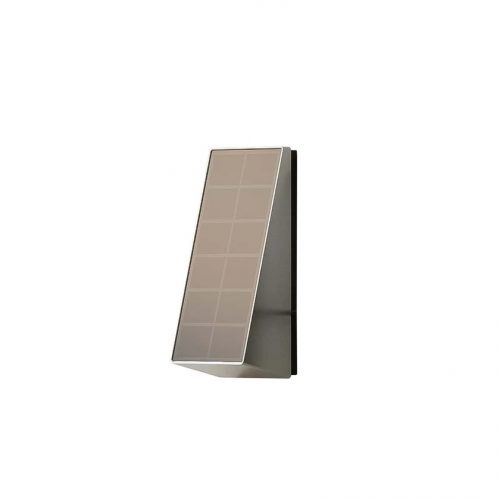

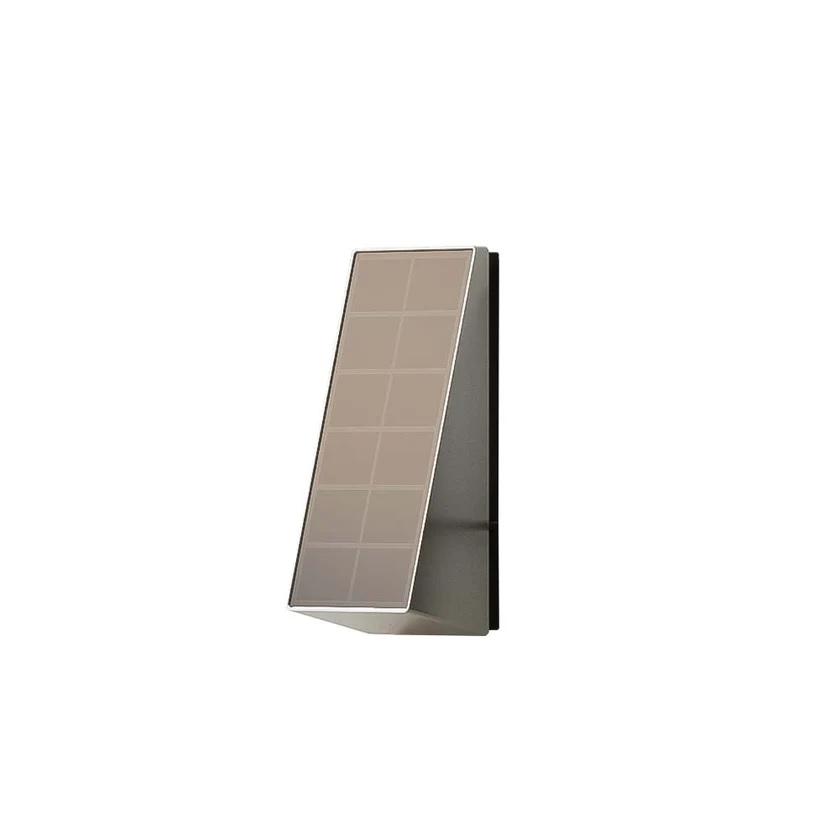

Solar Panel
Max. Power Voltage	8.1V
Max. Power Current	240mA
Max. Power	1.2W
Operating Temperature	-20°C to 50°C
Size	126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)
IP Grade	IP65
General
Net Weight	Doorbell: 276 g (9.73 oz)
Weight with Package	650 g (22.93 oz)
In the box
Contents	Mounting Bracket for Doorbell Inclined Mounting Bracket Drill Template for Doorbell Solar Panel Drill Template for Solar Panel Power Cable Pin Screw Kit ×3 U-shaped Wire ×2 Wire Connector ×2 Regulatory Information ×2 Quick Start Guide
Certifications	CE / REACH / WEEE / RoHS
