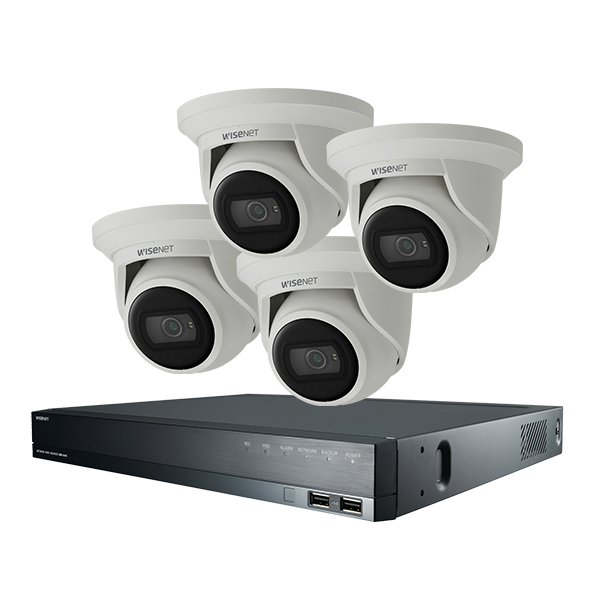

Hanwha Vision CT-ANE-KIT-16CH4CAM A Series Kit (4 x ANE-L7012R + 1 x ARN-1610S w/ 4TB HDD)

HANWHA VISION A Series Kit (4 x ANE-L7012R + 1 x ARN-1610S w/ 4TB HDD)

The Hanwha Vision HV-ANE-L7012R 4MP H.265 NW IR Flateye Camera boasts advanced features for top-tier surveillance. With its 4MP resolution, it delivers crystal-clear imaging for enhanced security monitoring. Utilizing H.265 compression technology, it ensures efficient video storage without compromising quality. Equipped with infrared capabilities, it offers reliable night vision, extending surveillance coverage around the clock. The Flateye design enhances discreet installation options while maintaining optimal performance.

• Maximum 4PM resolution
• 3mm fixed focal
• Color: 0.13Lux (F1.6, 1/30sec), BW: 0Lux (IR LED on)
• Maximum 30fps@4MP (H.265/H.264)
• H.265/H.264, MJPEG codec support, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction)
• Micro SD/SDHC/SDXC 1slot 128GB
• Hallway view, WiseStream II support
• IR Viewable length 20m (65.62ft)
• LDC, PoE



Hanwha A-Series Security Camera Interface

Wisenet A Series Overview

Hanwha Vision A Series Overview

Wisenet A Series Features and Specifications

The Hanwha Vision HV-ARN-1610S 16CH 8MP H.265 AI NVR with PoE Switch designed for high-definition surveillance. With support for up to 8MP resolution and H.265 compression, it ensures crisp and efficient video storage. Its integrated PoE switch simplifies installation by providing power and data over a single Ethernet cable to compatible cameras. Equipped with AI capabilities, it offers advanced features like motion detection and object recognition for enhanced security monitoring. This NVR is a reliable solution for businesses and homeowners seeking comprehensive surveillance with modern technology.

• Up to 16CH, 8MP camera supported
• H.265, H.264, MJPEG codec
• 80Mbps network camera recording
• Plug & play by 16 PoE (LAN, 10/100), 1 RJ-45(WAN, 1Gbps)
• Supported HDD (Maximum 6TB)
• HDMI / VGA local monitor
• ARB supported
