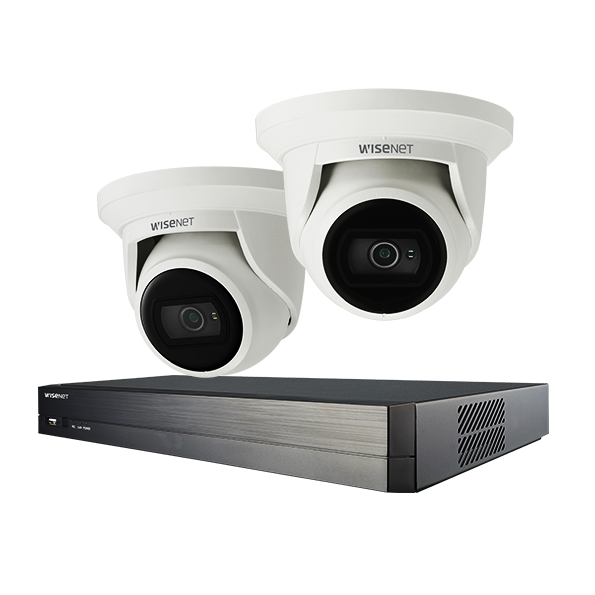

Hanwha Vision CT-ANE-KIT-4CH2CAM A Series Kit (2 x ANE-L7012R + 1 x ARN-410S w/ 2TB HDD)

Hanwha Vision CT-ANE-KIT-4CH2CAM A Series Kit (2 x ANE-L7012R + 1 x ARN-410S w/ 2TB HDD)

The Hanwha Vision HV-ANE-L7012R 4MP H.265 NW IR Flateye Camera boasts advanced features for top-tier surveillance. With its 4MP resolution, it delivers crystal-clear imaging for enhanced security monitoring. Utilizing H.265 compression technology, it ensures efficient video storage without compromising quality. Equipped with infrared capabilities, it offers reliable night vision, extending surveillance coverage around the clock. The Flateye design enhances discreet installation options while maintaining optimal performance.

• Maximum 4PM resolution
• 3mm fixed focal
• Color: 0.13Lux (F1.6, 1/30sec), BW: 0Lux (IR LED on)
• Maximum 30fps@4MP (H.265/H.264)
• H.265/H.264, MJPEG codec support, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction)
• Micro SD/SDHC/SDXC 1slot 128GB
• Hallway view, WiseStream II support
• IR Viewable length 20m (65.62ft)
• LDC, PoE

Hanwha A-Series



Hanwha A-Series Security Camera Interface

Wisenet A Series Overview

Hanwha Vision A Series Overview

Wisenet A Series Features and Specifications

The Hanwha Vision HV-ARN-410S 4CH 8MP H.265 AI NVR with PoE Switch, A series 4CH, 8CH, and 16CH NVRs support maximum camera resolutions of up to 8MP and H.265, H.264, and MJPEG codecs. The improved installation wizard and 4K resolution monitor output make system setup simple and monitoring crystal clear. Increased accessibility options include the use of P2P connections, the Wisenet Mobile application, and on PC or Mac with Wisenet Viewer CMS.

• 4 channels up to 8MP resolution
• H.265, H.264, MJPEG codec
• 40Mbps network camera recording
• Plug & play with 4 PoE ports
• 1 HDD (Up to 6TB)
• 4K HDMI monitor out
• P2P service for easy remote access
• Dual track recording
