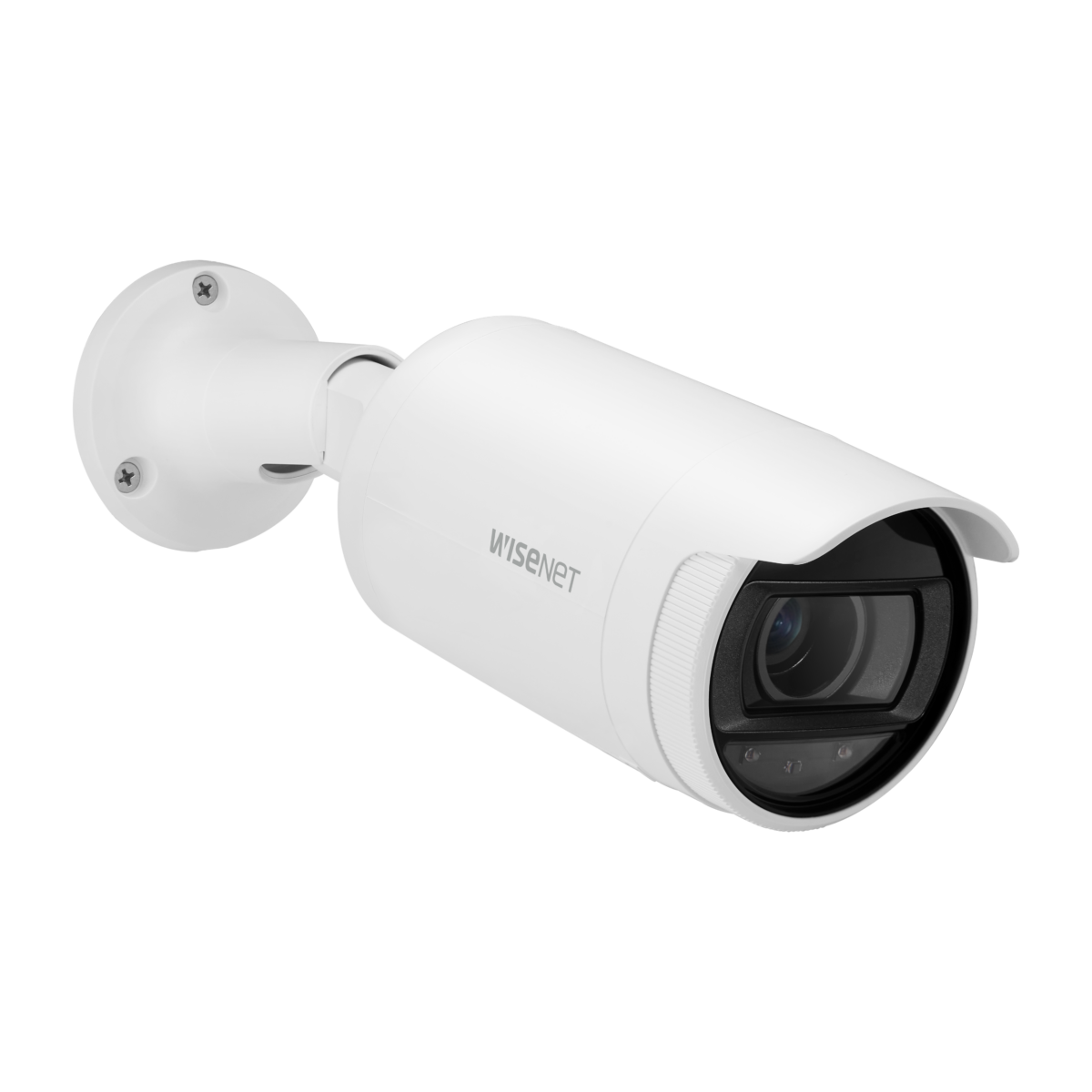

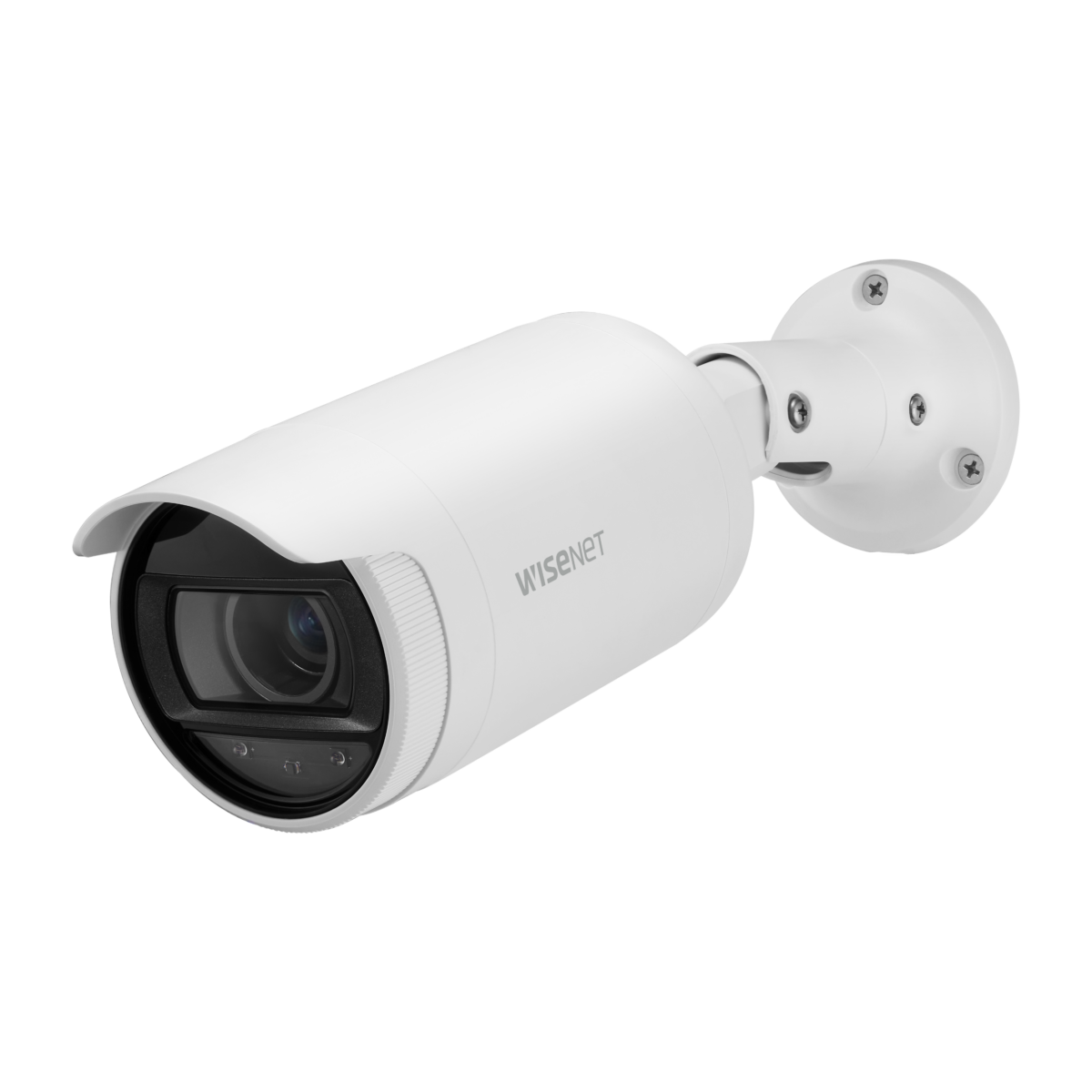

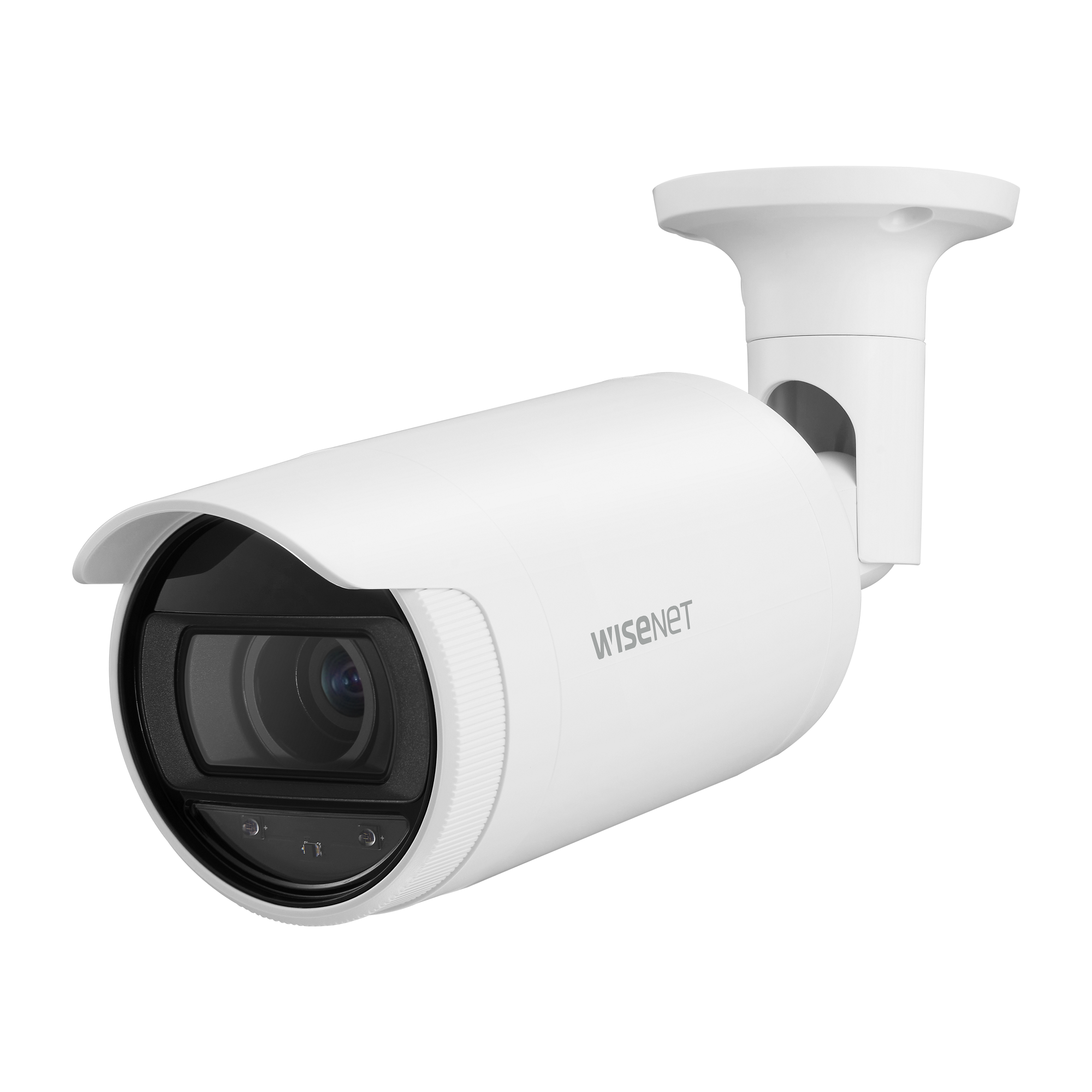

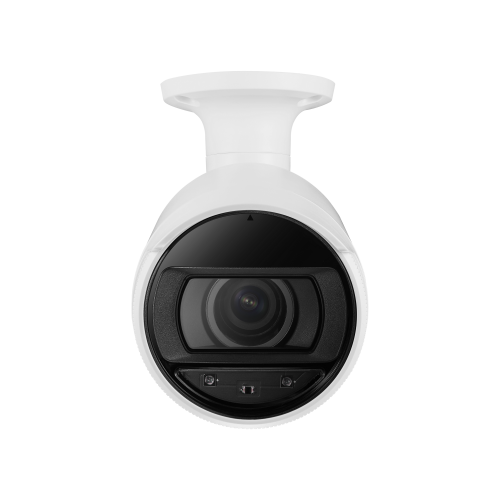

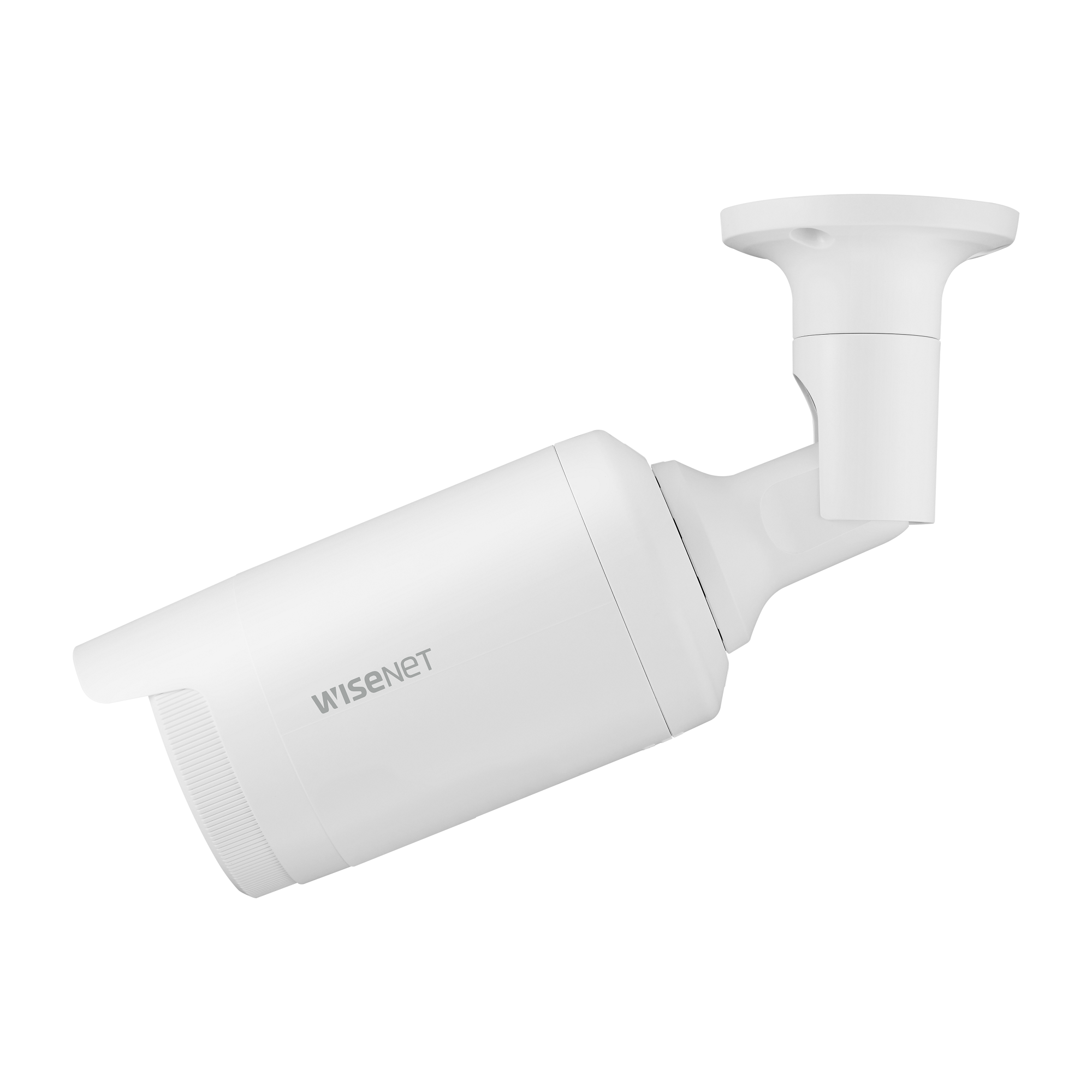

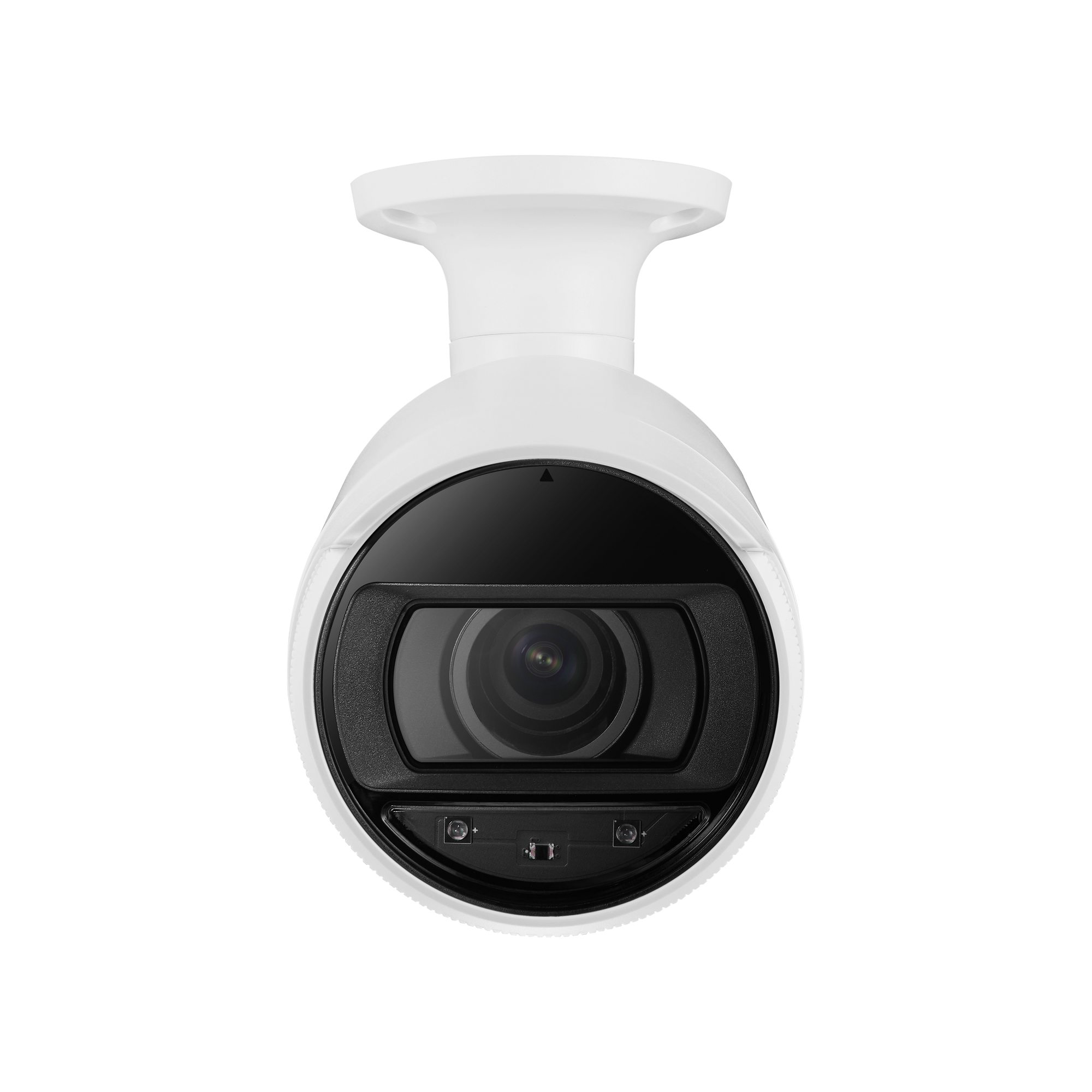

Hanwha Vision HV-ANO-L7082R 4MP H.265 NW IR Bullet Fixed Lens Camera

The Hanwha Vision HV-ANO-L7082R 4MP H.265 NW IR Bullet Fixed Lens Camera equipped with a fixed lens, providing high-quality video surveillance. It supports H.265 video compression, which significantly reduces bandwidth and storage requirements without compromising image quality. The camera features infrared (IR) capabilities, ensuring clear visibility in low-light or nighttime conditions. Designed for durability, it is suitable for both indoor and outdoor use, with weather-resistant housing. With advanced motion detection and video analytics, the HV-ANO-L7082R enhances security monitoring efficiency.

• Maximum 4MP resolution
• Color : 0.1Lux (F1.6, 1/30sec) BW : 0Lux (IR LED on)
• 3.3~10.3mm(3.1x) motorized varifocal
• Maximum 30fps@4MP all resolutions (H.264/H.265)
• H.264/H.265, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection, Virtual area(Intrusion/Enter/Exit),
  Virtual line(Crossing/Direction)
• Micro SD/SDHC/SDXC 1slot 128GB, PoE
• Hallway view (90°/270°), WiseStream II support
• IR viewable length 30m(98.43ft)
• IP66 support





4 Megapixel Resolution: Provides clear and detailed images with a resolution of 4MP, suitable for capturing high-quality video.

H.265 Compression: Utilizes H.265 video compression technology, which reduces bandwidth and storage requirements while maintaining high image quality.

Infrared (IR) Capabilities: Equipped with IR LEDs to provide clear images in complete darkness up to a certain distance, enhancing nighttime surveillance.

Fixed Lens: Features a fixed lens that offers a consistent field of view, typically suitable for general surveillance purposes.

Weatherproof Design: Constructed to be weather-resistant, making it suitable for outdoor use in various environmental conditions.

Network Connectivity: Supports network connectivity for easy integration into existing security systems, allowing for remote monitoring and management.

Advanced Analytics: May include features like motion detection, tampering alarms, and other video analytics to enhance security monitoring.

Specifications:

• Model: HV-ANO-L7082R
• Resolution: 4MP (typically 2560 x 1440 pixels)
• Compression: H.265, with support for H.264 and MJPEG
• IR Range: The effective range for IR illumination varies but generally extends to around 30 meters (98 feet) depending on the specific model and conditions.
• Lens Type: Fixed lens (the exact focal length is usually specified in the detailed datasheet)
• Ingress Protection: IP66 or IP67 rating, indicating strong resistance to dust and water ingress
• Operating Temperature: Designed to operate in a wide range of temperatures, often from -30°C to +60°C (-22°F to +140°F)
• Power Supply: Power over Ethernet (PoE) capability, simplifying installation by using a single cable for power and data



Usage Scenarios:

• Outdoor Surveillance: Ideal for monitoring outdoor areas such as parking lots, building perimeters, and public spaces due to its weatherproof design and IR capabilities.
• High-Security Areas: Suitable for use in locations requiring detailed video surveillance, such as banks, retail stores, and transportation hubs.
• Remote Monitoring: Enables remote access to live video feeds and recorded footage through network connectivity, useful for security personnel and management.

This camera is part of Hanwha Vision’s range of security solutions, known for their reliability and advanced features. For specific installation guidelines, performance metrics, and compatibility details, referring to the datasheet would be advisable.
