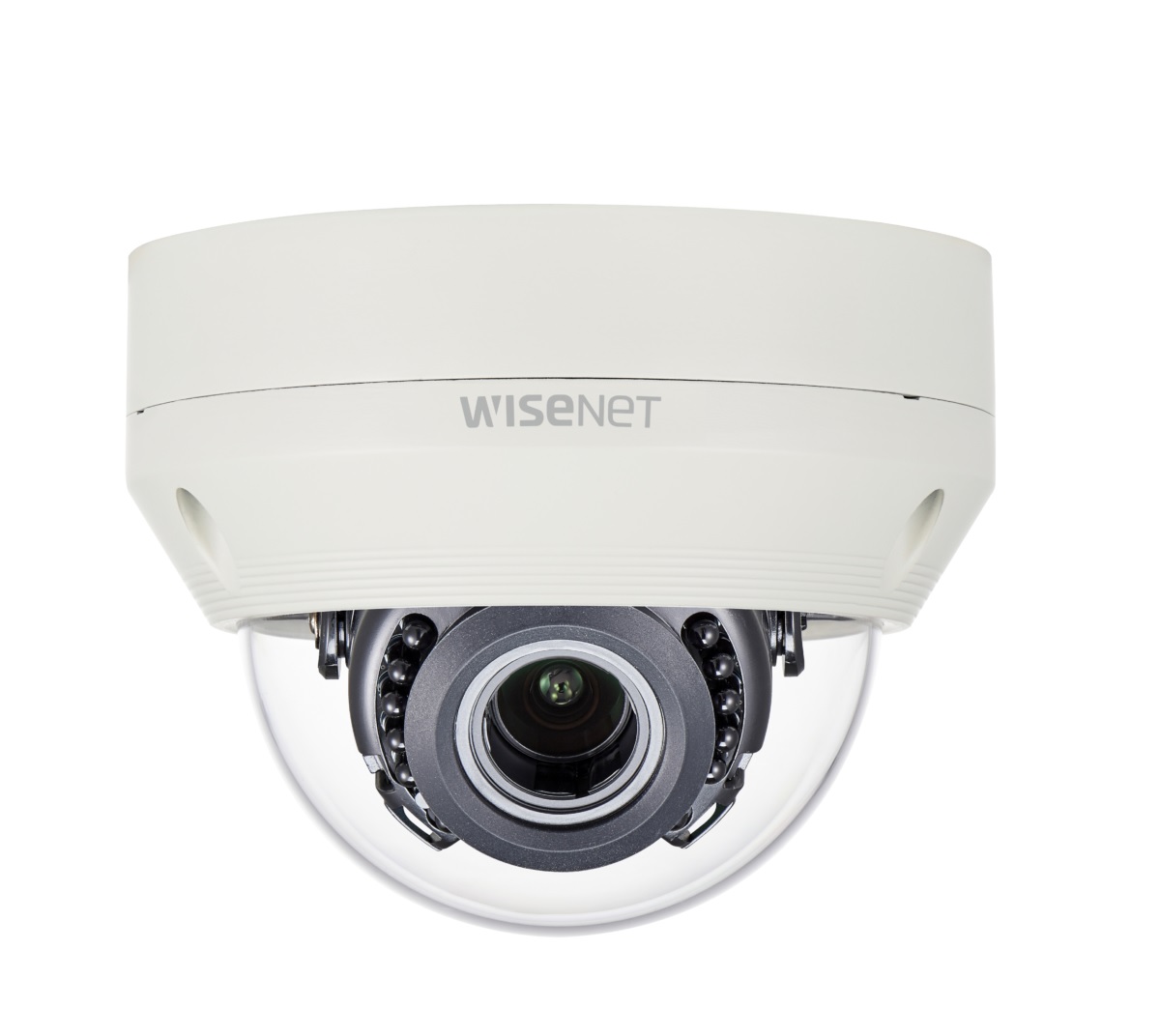

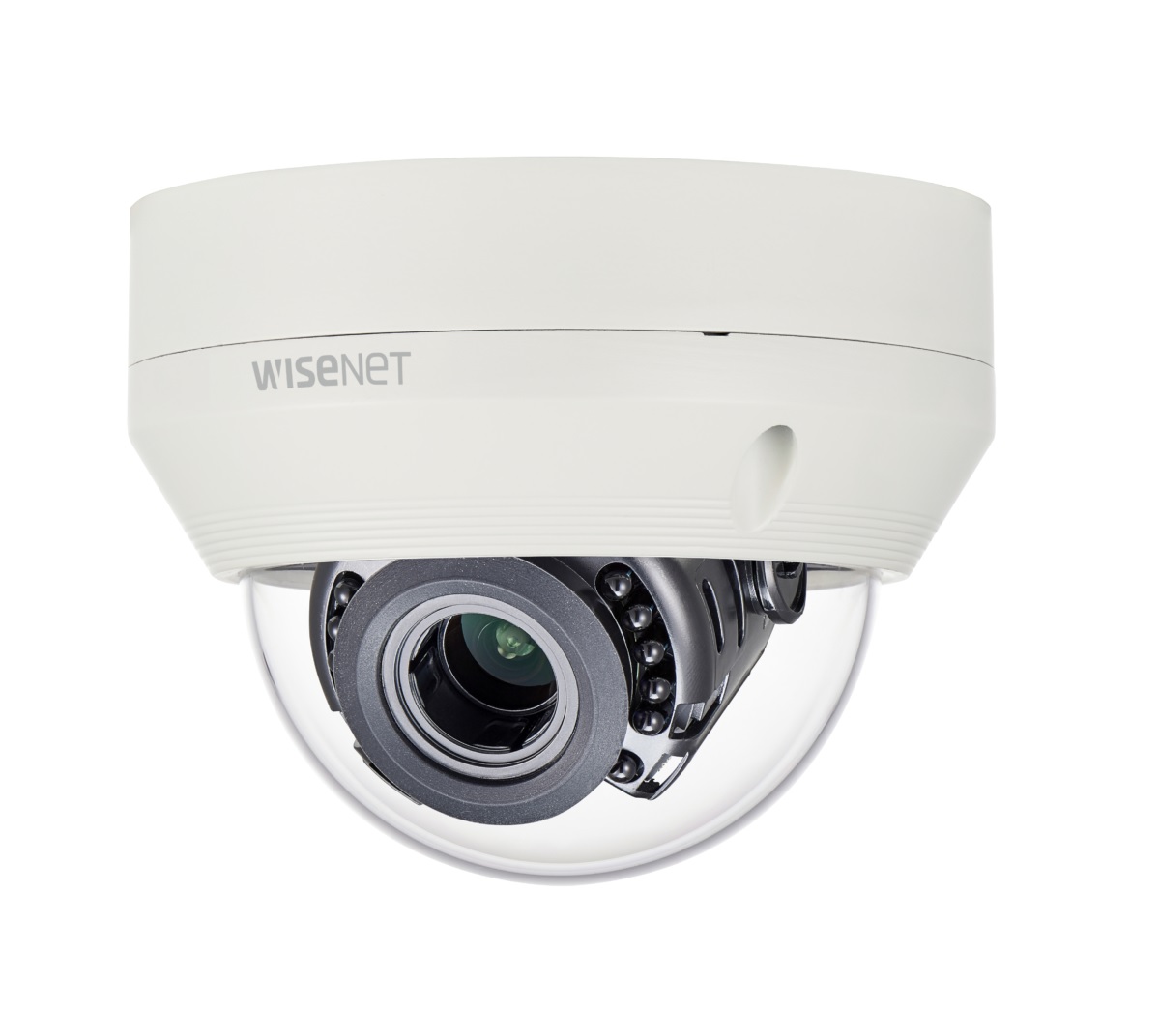

Hanwha Vision HV-HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera
2MP Analog HD IR Outdoor Dome
- Full HD resolution
- 0.11Lux@F1.4(Color), 0Lux(B/W : IR LED on)
- 3.2~10mm(3.1x) Motorized V/F lens
- Day & Night(ICR), WDR(120dB)
- SSNR, Motion detection
- IR viewable length : 98 feet, IP66, IK10, Dual power
- Transmission distance Max.500m
- Easy installation (Plug & play), Dual power, RS-485
$338.28 inc GST +3 Year Warranty & Support
The Hanwha Vision HV-HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera designed for high-performance surveillance. With its advanced analog high-definition technology, it delivers crisp and clear images, ensuring reliable monitoring in various environments. Equipped with infrared LEDs, this camera provides exceptional night vision capabilities, extending surveillance even in low-light conditions. Its vandal-resistant construction enhances durability, making it suitable for outdoor installations in challenging locations. The HV-HCV-6080R is an ideal choice for businesses and organizations seeking dependable security solutions.
- Full HD resolution
- 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IR viewable length 30m, IP66, IK10
- Transmission distance max. 500m
- Easy Installation (Plug & play), Dual power
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Features
- 1080p Full HD Resolution: Captures high-definition video with 1920 x 1080 resolution, providing clear and detailed images.
- Analog HD (AHD) Technology: Allows high-definition video to be transmitted over standard coaxial cable, making it easy to upgrade existing analog systems.
- Vandal-Resistant Design: The camera housing is designed to withstand physical impacts, making it suitable for high-risk environments.
- Infrared (IR) Illumination: Equipped with IR LEDs for night vision, allowing the camera to capture clear images in complete darkness up to a certain range.
- Weatherproof: The camera is rated for outdoor use, ensuring reliable operation in various weather conditions.
- Wide Dynamic Range (WDR): Enhances image quality in challenging lighting conditions by balancing light and dark areas of the image.
- Motion Detection and Privacy Masking: Features for advanced video analytics and privacy protection.
Specifications
VIDEO
-
- Imaging Device: 1/2.8″ 2M CMOS
- Total Pixels: 2,000(H) x 1,121(V) 2.24M pixels
- Effective Pixels: 1,984(H) x 1,105(V) 2.19M pixels
- Scanning System: Progressive Scan
- Min. Illumination:
- Color: 0.11 Lux (F1.6, 1/30sec)
- B/W: 0 Lux (IR LED on)
- S / N Ratio: 52dB (AGC Off, Weight On)
- Video Output: BNC (AHD / TVI / CVI / CVBS selectable)
- Resolution: 1920 x 1080
- Max. Framerate: 30fps@1080p
PAN / TILT / ROTATE
-
- Pan / Tilt / Rotate Range: 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
LENS TYPE
-
- Focal Length (Zoom Ratio): 3.2 ~ 10mm (3.1x) motorized varifocal
- Max. Aperture Ratio: F1.6
- Angular Field of View:
- H: 110.2˚(Wide) ~ 32˚(Tele)
- V: 55.4˚(Wide) ~ 18˚(Tele)
- D: 128.4˚(Wide) ~ 36.6˚(Tele)
- Min. Object Distance: 0.5m (1.64ft)
- Focus Control: Simple focus (Motorized V/F) / Manual
- Lens Type: DC Auto Iris
- Mount Type: Board-in Type
OPERATIONAL
-
- On Screen Display:
- Multi-language support (16): English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
- Camera Title: Off / On (Displayed 15 Characters)
- Day & Night: Auto (ICR) / Color / B/W
- Backlight Compensation: Off / User BLC / HLC / WDR
- Wide Dynamic Range: 120dB
- Digital Noise Reduction: SSNRⅣ (Off / On)
- Defog: Off / Auto / Manual
- Motion Detection: Off / On (4 zones)
- Privacy Masking: Off / On (8 zones rectangle)
- Gain Control: Off / Low / Middle / High / Very High
- White Balance: ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°)
- Electronic Shutter Speed: 1sec ~ 1/12,000sec
- Reverse: Off / H-Rev / V-Rev / HV-Rev
- Profile: Basic, Day & Night, Backlight, ITS, Indoor, User
- Alarm (MD) Output: 1
- Remote Control Interface: Coaxial
- Protocol: AHD (ACP), CVBS (Pelco-C), CCP (CVI), TCP (TVI)
- IR Distance: 30m (98.43ft)
- Video Transmission Distance: 500m (5C2V Coaxial Cable)
- On Screen Display:
ENVIRONMENTAL
-
- Operating Temperature / Humidity: -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH (Start up should be done at above -10°C (+14°F))
- Ingress Protection: IP66
- Vandal Resistance: IK10
ELECTRICAL
-
- Input Voltage / Current: Dual (24V AC ±10% & 12V DC ±10%)
- Power Consumption: Max. 4.2W
MECHANICAL
-
- Color / Material: Ivory / Aluminum
- Dimensions (WxH): Ø137 × 106.1mm (Ø5.39″ × 4.18″)
- Weight: 725g (1.60 lb)
Installation and Use
The HV-HCV-6080R is ideal for various applications, including commercial, industrial, and residential security. Its robust design and advanced features make it suitable for both indoor and outdoor installations where reliable, high-quality video surveillance is needed.
For installation, ensure you have the necessary tools and follow the manufacturer’s guidelines for mounting and connecting the camera to your DVR or monitoring system. Proper maintenance and periodic checks will ensure optimal performance and longevity of the camera.
