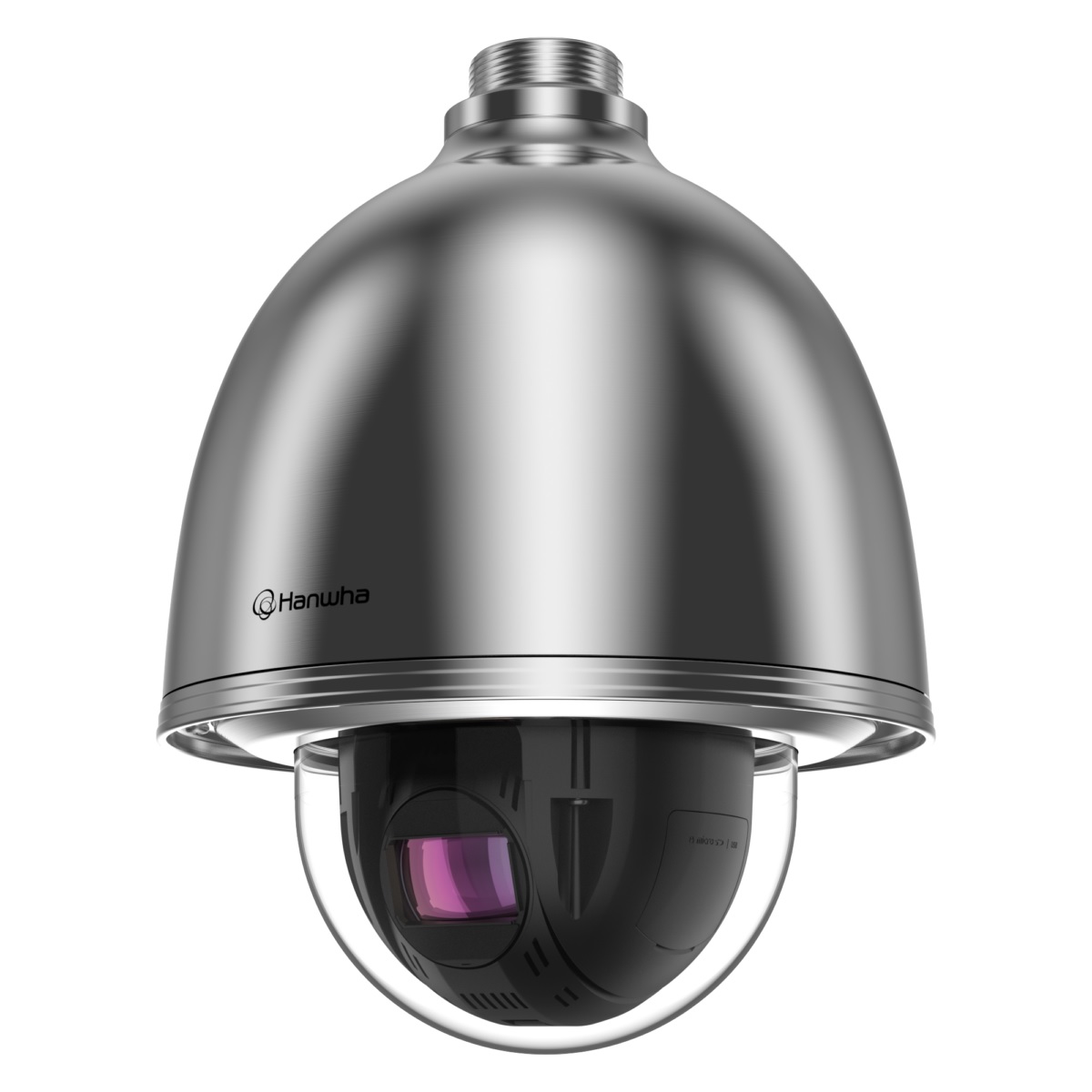

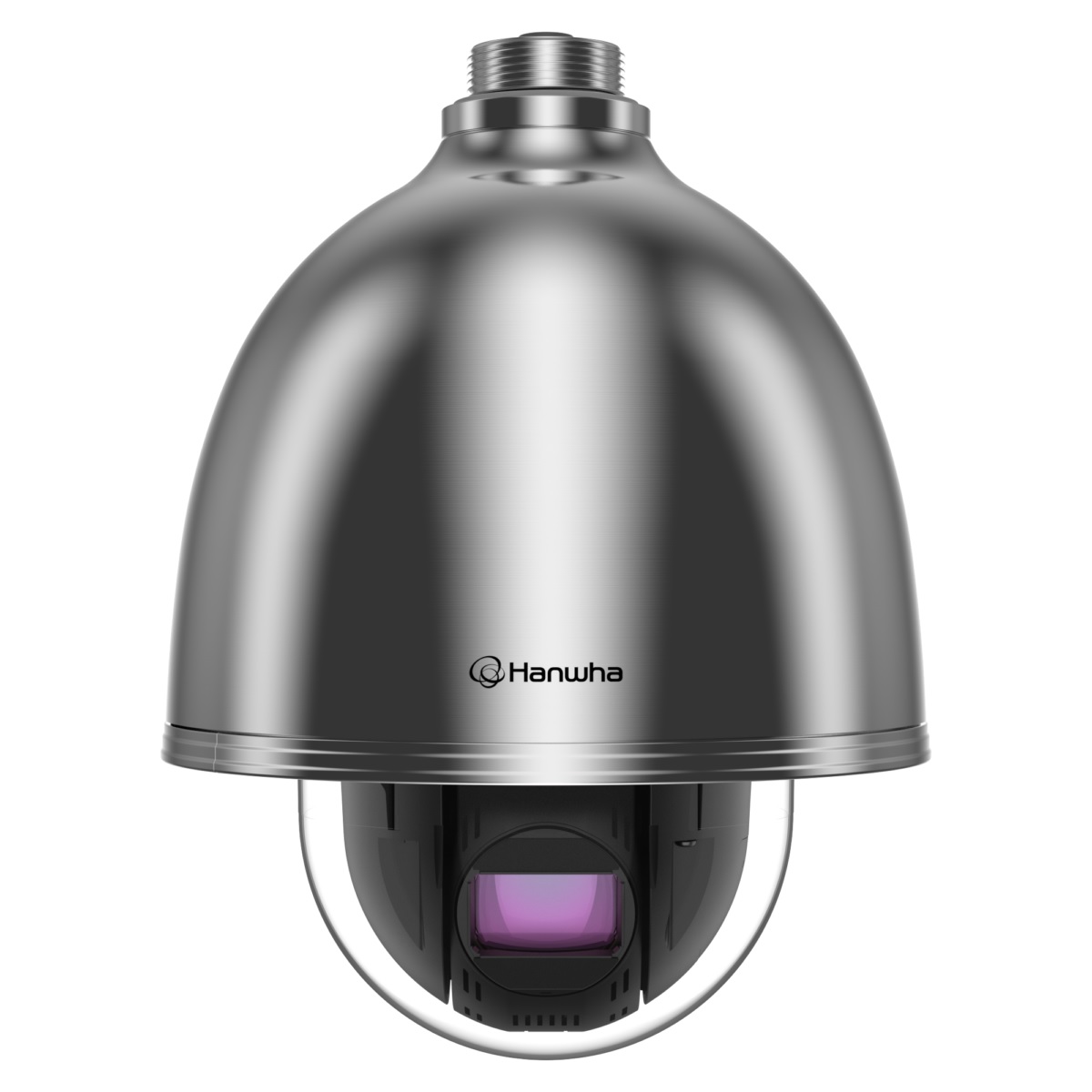

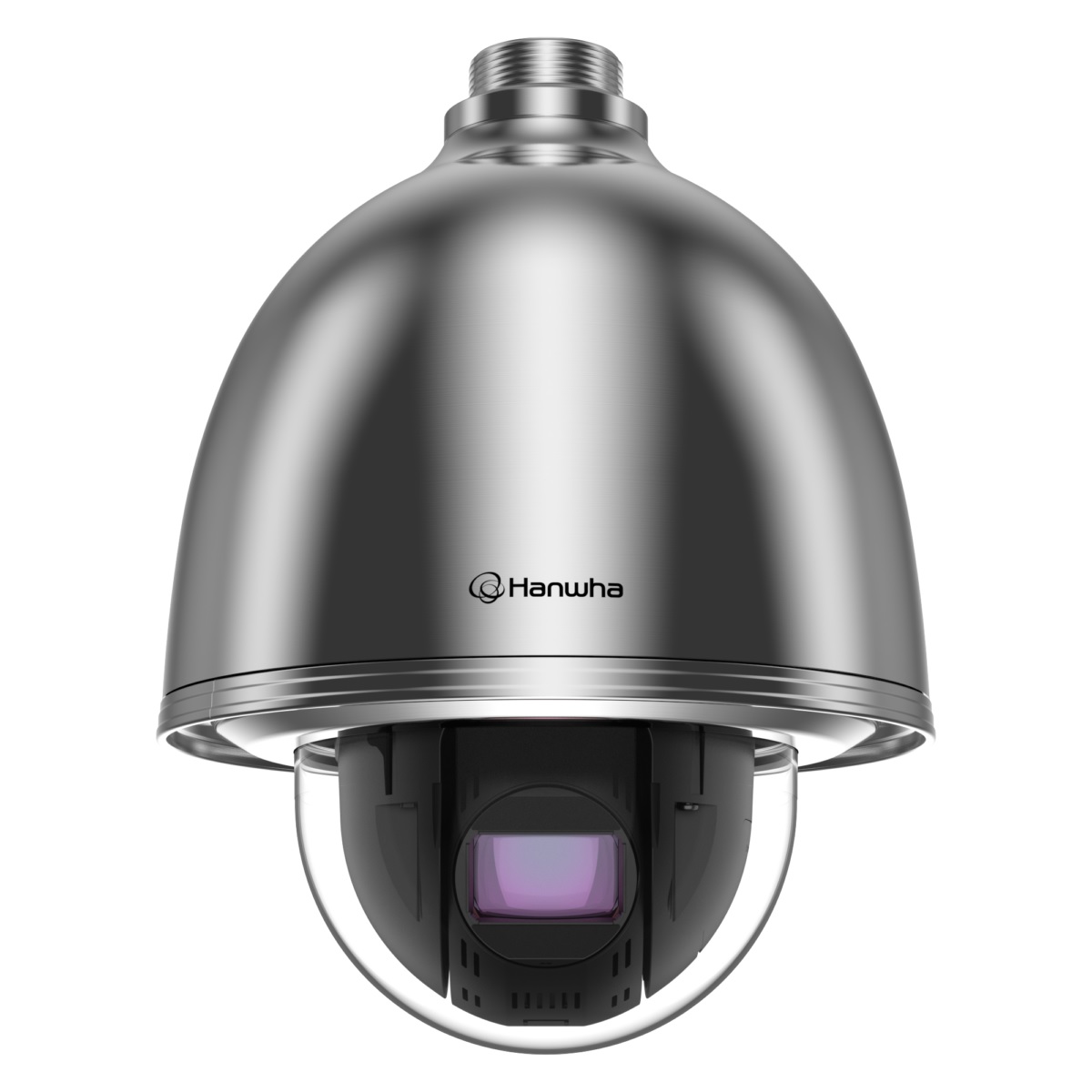

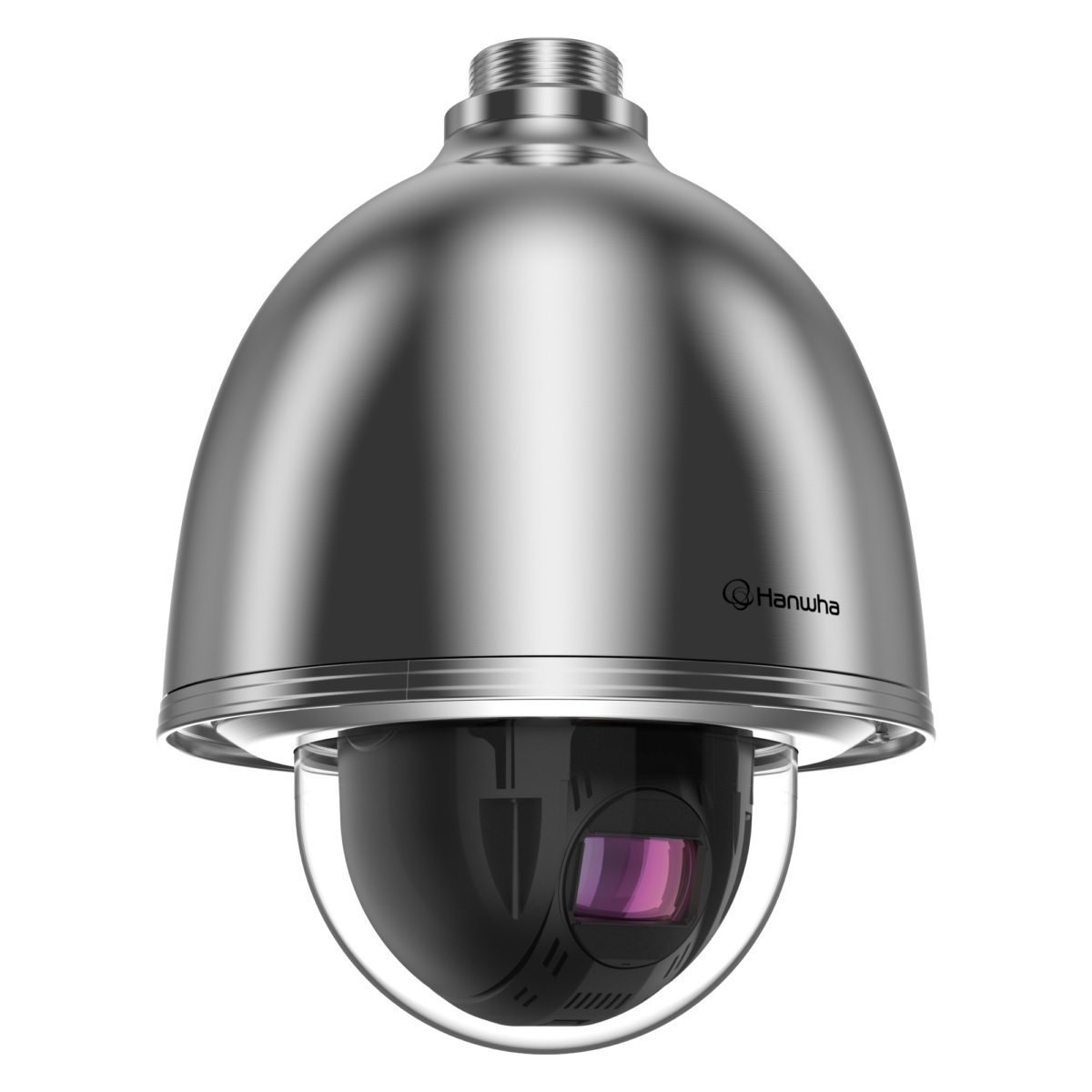

Hanwha Vision HV-QNP-6320HS Q Series 2MP H.265 NW Stainless PTZ 32x Camera
2MP H.265 Stainless 32x PTZ Camera
- Stainless Steel SUS316L camera for harsh environments
- 2MP resolution, 60fps
- 4.44~142.6mm (32x) lens
- Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
- Intelligent Analytics
- H.264, H.265, MJPEG codec, WiseStreamII
- Micro SD/SDHC/SDXC 1 slot 256GB
- IP66/IP67, IK10, NEMA4X, PoE+, Operational Temperature Range -31°F ~ +131°F
- Compatible with SPM-4210 Network I/O Box for Alarm I/O and Audio I/O
$4,870.80 inc GST +3 Year Warranty & Support
The Hanwha Vision HV-QNP-6320HS Q Series 2MP H.265 NW Stainless PTZ 32x Camera offers high-quality surveillance with its 2MP resolution. Using H.265 compression, it efficiently manages storage while maintaining clear imagery. Its stainless steel construction ensures durability in various environmental conditions. With a 32x optical zoom, it provides detailed monitoring over long distances. The PTZ functionality allows for flexible positioning and monitoring control.
- Maximum 2MP (1920 x 1080) resolution
- 4.44 ~ 142.6 (32x) optical zoom
- H.265, H.264, MJPEG codec support, Multiple streaming
- WiseStreamII, Day & Night (ICR), WDR(120dB)
- Directional detection, Tampering, Motion detection
- Audio detection, Digital auto tracking
- Micro SD/SDHC/SDXC 1slot 256GB
- IP66/IP67, IK10, NEMA4X, PoE, Material: SUS316L
Features
- 2 Megapixel Resolution: Offers clear and detailed imagery with a resolution of 2 megapixels.
- H.265 Compression: Utilizes the efficient H.265 video compression standard, which helps in reducing file sizes without compromising image quality, allowing for more efficient storage and transmission of video data.
- Network Connectivity (NW): Supports network connectivity, allowing for remote monitoring and control over the internet or local network.
- Stainless Steel Construction: The camera is built with stainless steel, providing durability and resistance to corrosion, making it suitable for outdoor environments and harsh weather conditions.
- Pan-Tilt-Zoom (PTZ) Functionality: Features pan, tilt, and zoom capabilities, enabling users to remotely adjust the camera’s viewing angle and focus on specific areas of interest.
- 32x Optical Zoom: Offers a powerful 32x optical zoom, allowing for detailed observation of distant objects without sacrificing image quality.
- Day/Night Functionality: Equipped with day/night functionality, enabling the camera to capture clear images in both daytime and low-light conditions.
- Motion Detection: Supports motion detection, triggering alerts or recording when motion is detected within the camera’s field of view.
- Wide Dynamic Range (WDR): Incorporates wide dynamic range technology, which helps in capturing clear images in scenes with varying lighting conditions, such as bright sunlight and shadowed areas.
- Privacy Masking: Allows users to mask certain areas within the camera’s field of view to ensure privacy or compliance with regulations.
- Remote Monitoring and Management: Supports remote monitoring and management via compatible software or mobile apps, providing users with convenient access to live video feeds and camera settings from anywhere with internet connectivity.
- Weatherproof Design: Designed to withstand outdoor environments and adverse weather conditions, ensuring reliable performance in various outdoor settings.
Specifications
Video:
-
- Imaging Device: 1/2.8″ CMOS
- Resolution:
- 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
- Max. Framerate:
- H.265/H.264: Max. 60fps/50fps (60Hz/50Hz)
- MJPEG: Max. 30fps/25fps (60Hz/50Hz)
- Min. Illumination:
- Color: 0.05Lux (F1.6, 1/30sec, 30IRE)
- BW: 0.005Lux (F1.6, 1/30sec, 30IRE)
Lens:
-
- Focal Length (Zoom Ratio): 4.44~142.6mm (32x) zoom (digital 32x, total 1024x zoom)
- Max. Aperture Ratio: F1.6 (Wide)~F4.4 (Tele)
- Angular Field of View:
- H: 64.66° (Wide)~2.29° (Tele)
- V: 38.08° (Wide)~1.30° (Tele)
- Min. Object Distance:
- Wide: 1.5m (4.92ft) / Tele: 2m (6.56ft)
- Focus Control: Oneshot AF, Focus save
- Lens Type: DC auto iris
Pan / Tilt / Rotate:
-
- Pan Range: 360° Endless
- Pan Speed:
- Preset: 700°/sec
- Manual: 0.024°/sec~200°/sec
- Tilt Range: 105° (0°~105°)
- Tilt Speed:
- Preset: 300°/sec
- Manual: 0.024°/sec~200°/sec
- Sequence Preset: (300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
- Preset Accuracy: ±0.2°
Operational:
-
- Camera Title Display: Displayed up to 85 characters
- Direction Indicator Support
- Day & Night: Auto(ICR)
- Backlight Compensation: BLC, HLC, WDR, SSDR
- Wide Dynamic Range: 120dB
- Digital Noise Reduction: SSNRⅤ
- Digital Image Stabilization: Support (built-in gyro sensor)
- Defog Support
- Motion Detection: 8ea, 8point polygonal zones
- Privacy Masking: 32ea, 4point quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- Solid/Mosaic
- Gain Control: Low / Middle / High
- White Balance: ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
- Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
- Video Rotation: Flip, Mirror
- Analytics: Analytics events
- Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- Audio detection: (Via optional I/O box SPM-4210)
Alarm Triggers:
-
- Analytics, Network disconnect
Alarm input: (Via optional I/O box SPM-4210)
Alarm Events: When alarm trigger occurred
-
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover (PTZ preset, Send message by HTTP/HTTPS/TCP)
Alarm output / Audio clip playback: (Via optional I/O box SPM-4210)
Auto Tracking Support
Network:
-
- Ethernet: Metal shielded RJ-45(10/100BASE-T)
- Video Compression: H.265/H.264: Main/High, MJPEG
- Smart Codec: Manual(5ea area), WiseStreamⅡ
- Bitrate Control: H.264/H.265: CBR or VBR, MJPEG: VBR
- Streaming: Unicast(20 users) / Multicast, Multiple streaming(Up to 10 profiles)
- Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
- Application Programming Interface: ONVIF Profile S/G/T, SUNAPI(HTTP API), Wisenet open platform
Security:
-
- OS / Firmware Protect: Firmware encryption
- User authentication: Digest Authentication, Privent brute-force attack
- Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
- Secure Communication: HTTPS, SRTP, WSS(Websocket secure)
- Access Control: IP address filtering
- Data Protect: Authentication information encryption, ZIP compression encryption
- Audit: User Access/System/Event log
General:
-
- Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
- Edge Storage: Micro SD/SDHC/SDXC 1slot Max. 256GB
- Memory: 1GB RAM, 256MB Flash
Environmental & Electrical:
-
- Operating Temperature / Humidity: -35°C~+55°(-31°F ~ +131°F) / 0~95% RH(non-condensing)
- Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / 0~95% RH
- Certification: IP66/IP67, IK10, NEMA4X
- Input Voltage: PoE+(IEEE802.3at, Class4)
- Power Consumption: PoE+: Max. 23W, typical 14W
Mechanical:
-
- Color / Material: Silver / Stainless(SUS316L)
- Product Dimensions / Weight: Ø227×299.2mm(8.94×11.78″), 5.4 kg(11.93 lb)
Installation and Maintenance
Installation:
- Location Selection: Choose an optimal location for the camera, ensuring it covers the desired area while being secure and protected from weather conditions.
- Mounting: Use appropriate mounting hardware to securely attach the camera to the chosen location, ensuring stability and proper alignment.
- Power Connection: Connect the camera to a power source using the provided power cable or via Power over Ethernet (PoE) if applicable.
- Network Connection: Connect the camera to your network using an Ethernet cable, ensuring proper network configuration.
- Configuration: Access the camera’s settings via its web interface or dedicated software to configure parameters such as resolution, frame rate, motion detection, and network settings.
- Testing: Verify the camera’s functionality by testing live video feed and adjusting settings as needed.
Maintenance:
- Regular Inspection: Periodically inspect the camera for any physical damage, loose connections, or signs of tampering.
- Cleaning: Clean the camera lens and housing regularly to ensure clear video quality. Use a soft, dry cloth to remove dust and dirt, and a mild cleaning solution for stubborn stains.
- Firmware Updates: Check for firmware updates provided by the manufacturer and install them as necessary to ensure optimal performance and security.
- Adjustments: If necessary, readjust the camera’s position or settings to accommodate changes in the environment or surveillance needs.
- Backup: Regularly backup any recorded footage or configuration settings to prevent data loss in case of camera failure or unexpected events.
- Troubleshooting: In case of any issues or malfunctions, refer to the camera’s user manual for troubleshooting steps or contact technical support for assistance.
