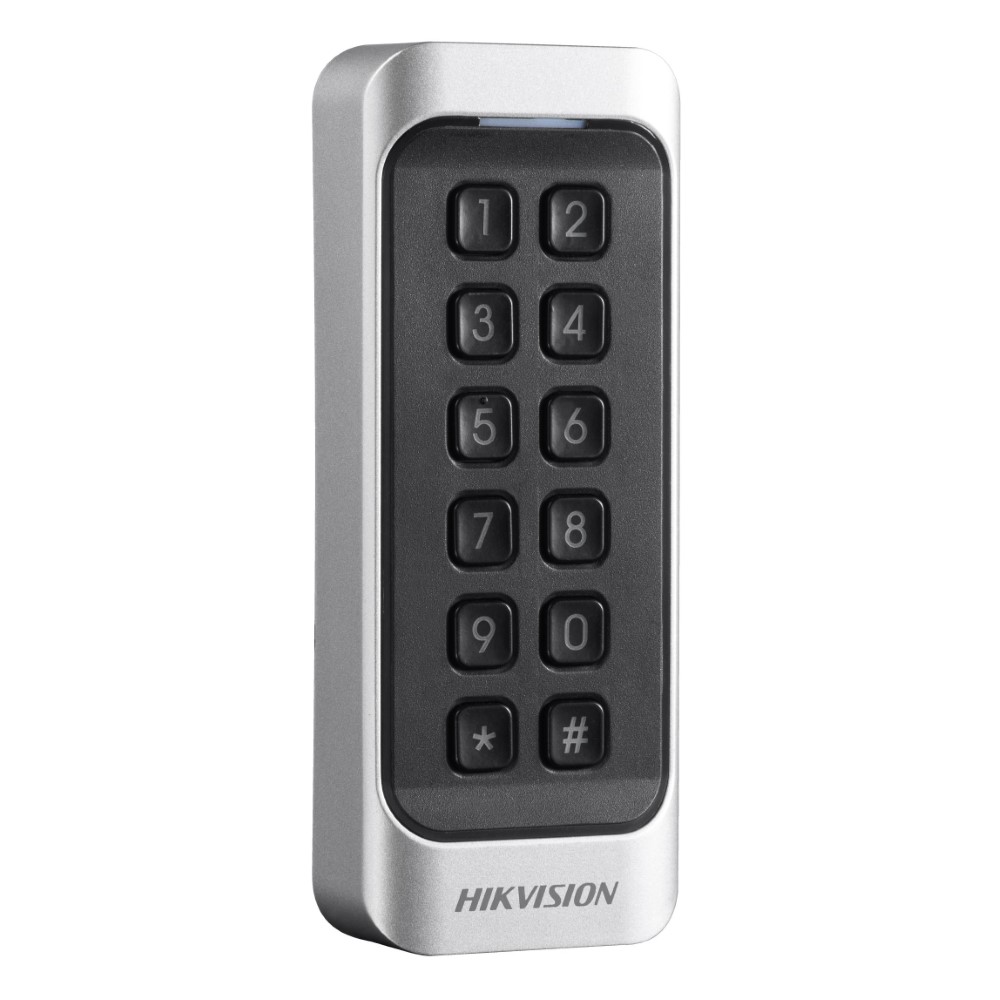

Hikivision DS-K1107MK Card Reader with Keypad Access Control

Hikvision DS-K1107MKN Proximity Card Reader with Keypad

The Hikvision DS-K1107 Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.

• LED Indicator Displays Reader Status
• Tamper-Resistant Alarm
• Supports Mifare Cards
• RS-485 and Wiegand (W26/W34) Protocols
• Used for Card and Code security, or can be used in ‘Code Authentication Mode’ when used with Hikvision Access Controllers.

System Parameters

• Card Reading Distance: Mifare Card:≤50 mm
• ID Settings: Setting by the DIP Switch on the Main Board
• Processor: 32-bit

General

• Audio Alert: Beeper
• Power Supply: 12VDC
• Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
• Power Consumption: ≤2W
• LED Indicator: Power Indicator; Status LED Indicator
• Protection Level: IP64
