4MP AcuSense IP Camera with inbuilt Audio Speaker and Strobe
- Provides real-time security via built-in two-way audio
The AcuSense Seriex Hikvision Cameras include powerful A.I. False Alarm Filerting, Inbuilt speaker, Strobe Light and Audio annoucements of programmed events. Powered by Darkfighter technology this camera is a new generation to make alalytics of events more powerful and trouble free than ever before.

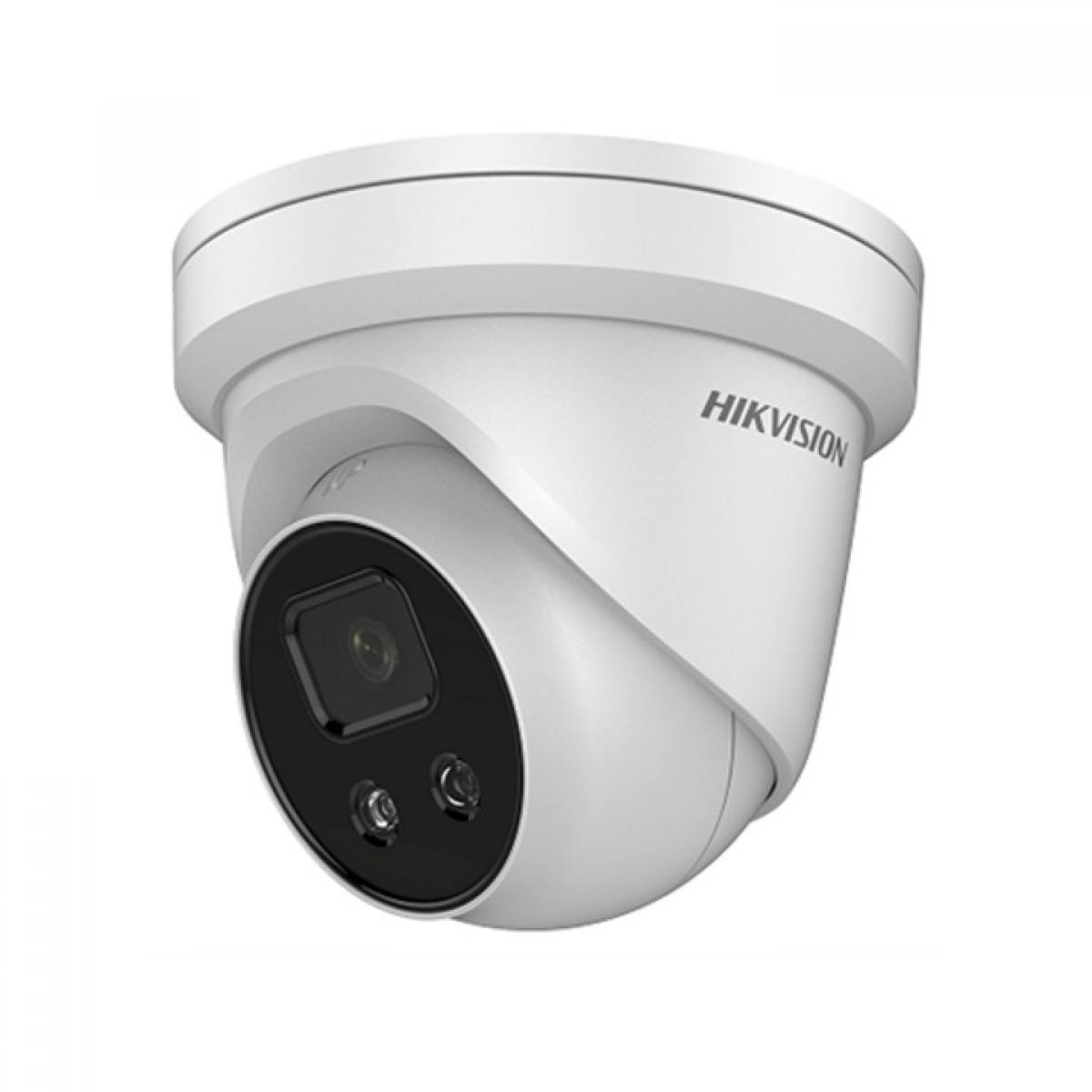

Hikvision DS-2CD2346G2-ISU/SL Acusense IP Camera – 4MP Turret (2.8mm Lens) 1/2.7″ Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG;Powered by Darkfighter technology,Color: 0.007 lux @(F1.2, 0.012 lux @(F1.6, AGC ON), 0 lux with IR; 25fps/30fps(2688×1520,2304×1296,1920×1080); VCA functions; 3 streams; 3D DNR; BLC; ICR; EXIR; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud service, Built-in Strobe light & Audio.
Supplied with 2.8mm Lens
* 4MP 2688 × 1520 @ 30fps
* 2.8mm lens
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
* H.265, H.265+, H.264, H.264+
* BLC / 3D / DNR / HLC / ROI
* IR range up to 50 m
* Built-In speaker,
* Strobe Light @ Audio alarm
- Quick Start Guide of DS-2CD2346G2-ISU/SL
- DS-2CD2346G2-ISU_SL_Datasheet
- User Manual of DS-2CD2346G2-ISU/SL
Camera | ||
---|---|---|
Image Sensor: | 1/2.7” Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° |
|
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR | |
Focus: | Fixed |
Compression Standard | ||
---|---|---|
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate: | 32Kbps~16Mbps |
Image | ||
---|---|---|
Max. Image Resolution: | 2688 × 1520 | |
Frame Rate: | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fp s(1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
|
Image Enhancement: | BLC/3D DNR/HLC | |
Image Settings: | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser | |
BLC: | Support | |
ROI: | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch: | Day/Night/Auto/Schedule |
Network | ||
---|---|---|
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
General Function: | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | |
System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
Interface | ||
---|---|---|
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
Smart Feature-set | ||
---|---|---|
Behavior Analysis: | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Region Entrance: | Enter a pre-defined virtual region from the outside place | |
Region Exiting: | Exit from a pre-defined virtual region |
