Hikvision Cameras - World's Leading CCTV Manufacturer
AX PRO Alarms Parts & Sensors, Hikvision AX PRO Alarms

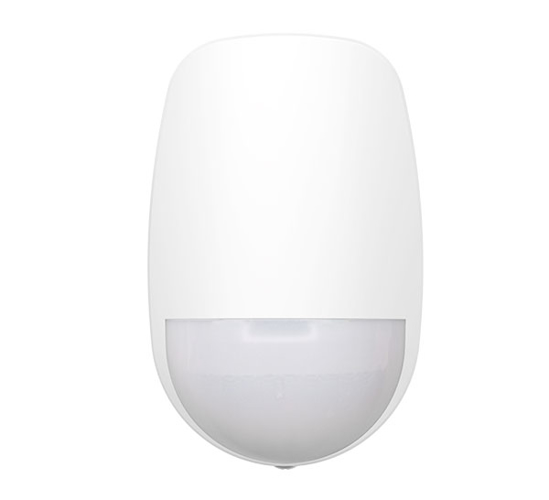

Hikvision AX PRO Series DS-PDP15P-EG2-WB Wireless PIR Detector
- Detection Range: 15m / 85.9°
- Up to 30KG pet immunity
- SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
$79.00 inc GST +3 Year Warranty & Support
| Image | Name | Price | Buy |
|---|---|---|---|
 | Hikvision AX PRO DS-PDB-IN-Wall bracket for PIR | $5.00 inc GST +3 Year Warranty & Support | |
 | Hikvision AX PRO DS-PDB-IN-Ceiling bracket for PIR | $5.00 inc GST +3 Year Warranty & Support |
Detection Performance
- Detection Method Passive Infrared
- Detection Range 15m
- Detection Angle 85.9°
- Detection Zones 52
- Detectable Speed 0.3～2m/s
- Sensitivity High;Auto;Pet
- Pet Immunity 30Kg
- White Light Filter 6500lux
- Digital Temperature Compensation Support
- Creep Zone Protection Support
Feature
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front;Rear
- Environment Temperature IndicatorSupport
- Signal Strength Indicator Support
Interface
- Power SwitchPower Up Enrolling
- LED IndicatorBlue(Alarm)
Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1.2Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
- Standard Battery Life 5 years in work status (being triggered 20 times per day)
- Power SupplyBattery Powered
- Battery Type CR123A × 1
- Typical Voltage3V
General
- Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity 10% to 90%
- Dimension(WxHxD) 65.5mm × 103mm × 48.5mm
- 128g
- Mounting Height 1.8 to 2.4m
- Mounting Method Wall
- Application Scenario Indoor
- Bracket Optional Wall & Ceiling Accessory
