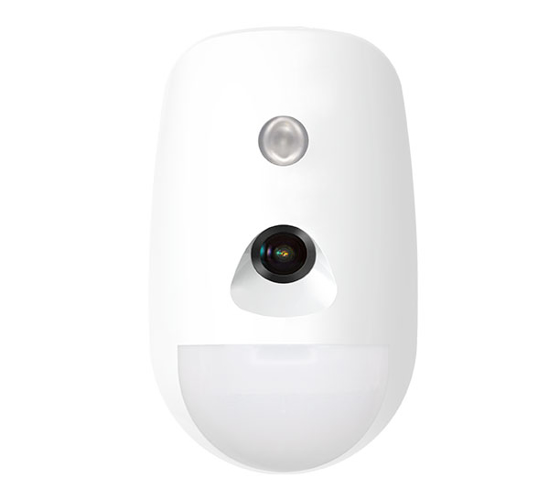

Hikvision AX PRO Series DS-PDPC12P-EG2-WB Wireless PIRCAM Detector with Image Verification
- Detection range: 12m / 85.9°
- Up to 30KG pet immunity
- SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
- Polarizing IR lens design for more uniform night illumination and excellent night shots
-
- Field Angle 88°(H), 68°(V)
- Image Type JPEG
- Resolution 160*120;320*240;640*480
- Large integrated memory buffer for image storage
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
Wireless-12m-PIR–Camera-Detector_User-Manual
Baseline-DS-PDPC12P-EG2-WB-PIR–Camera-Detector_Quick-Start-Guide
$226.00 inc GST +3 Year Warranty & Support
| Image | Name | Price | Buy |
|---|---|---|---|
 | Hikvision AX PRO DS-PDB-IN-Wall bracket for PIR | $5.00 inc GST +3 Year Warranty & Support | |
 | Hikvision AX PRO DS-PDB-IN-Ceiling bracket for PIR | $5.00 inc GST +3 Year Warranty & Support |
Detection Performance
- Detection Method Passive Infrared;Video Verification
- Detection Range 12m
- Detection Angle 85.9°
- Detection Zones 52
- Detectable Speed 0.3～2m/s
- Sensitivity High;Auto;Pet
- Pet Immunity 30Kg
- White Light Filter 6500lux
- Digital Temperature CompensationSupport
- Creep Zone Protection Support
Feature
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front;Rear
- Environment Temperature Indicator Support
- Signal Strength Indicator Support
Video
- Field Angle 88°(H), 68°(V)
- Image Type JPEG
- Resolution 160*120;320*240;640*480
- Fill Light Infrared Light
- Fill Range 12m
- Day/Night Switch Color/Black & White
Interface
- Power Switch Power Up Enrolling
- LED IndicatorBlue (Alarm)
Transmission
- Transmission Technology CAM-X Wireless
- Transmission Method Two-Way RF Wireless
- Transmission Frequency 433MHz
- Transmission Security AES-128 Encryption
- Transmission Range (Free Space)800m
- Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
- Power Supply Battery Powered
- Battery Type CR123A × 3
- Typical Voltage 3V
- Standard Battery Life – 6 years in work status (being triggered and completely uploading captures twice every week)
General
- Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity 10% to 90%
- Dimension(WxHxD) 72.2mm × 120.5mm × 56.7mm
- 210g
- Mounting Height 1.8 to 2.4m
- Mounting Method Wall
- Application Scenario Indoor
- Bracket Optional Wall & Ceiling Accessory
