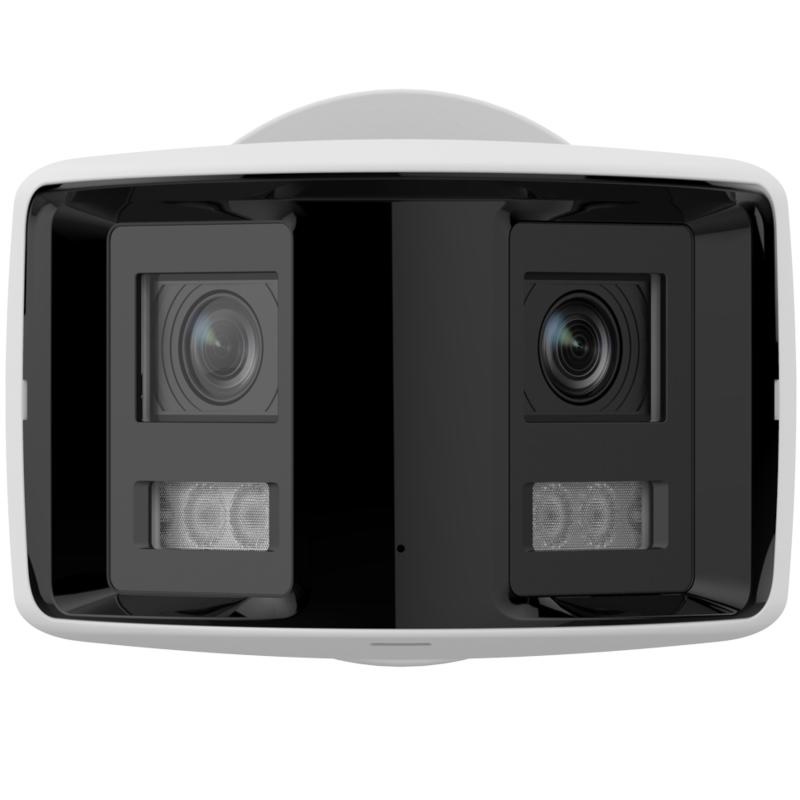

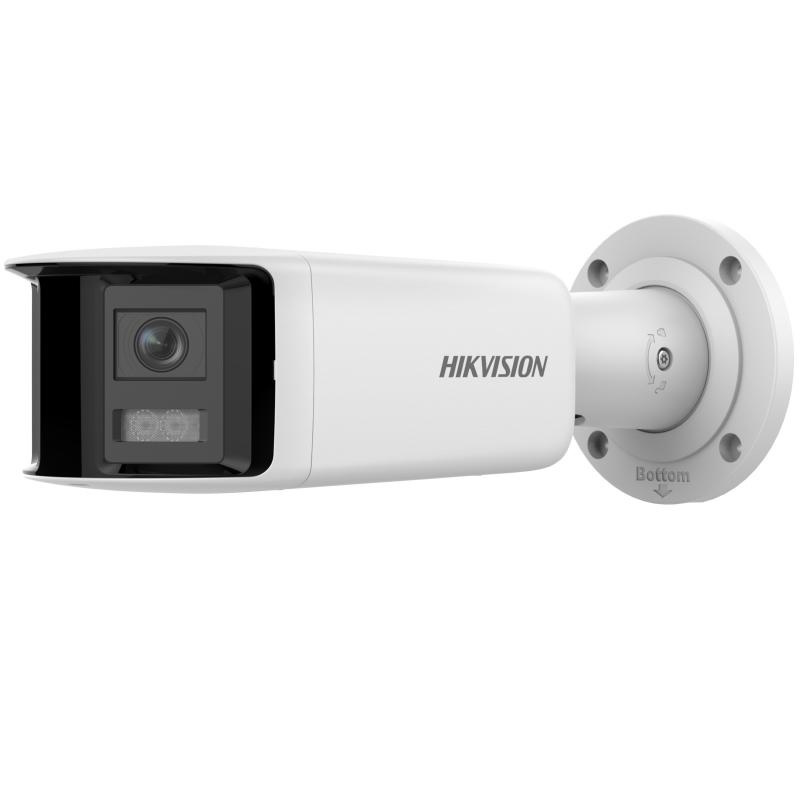

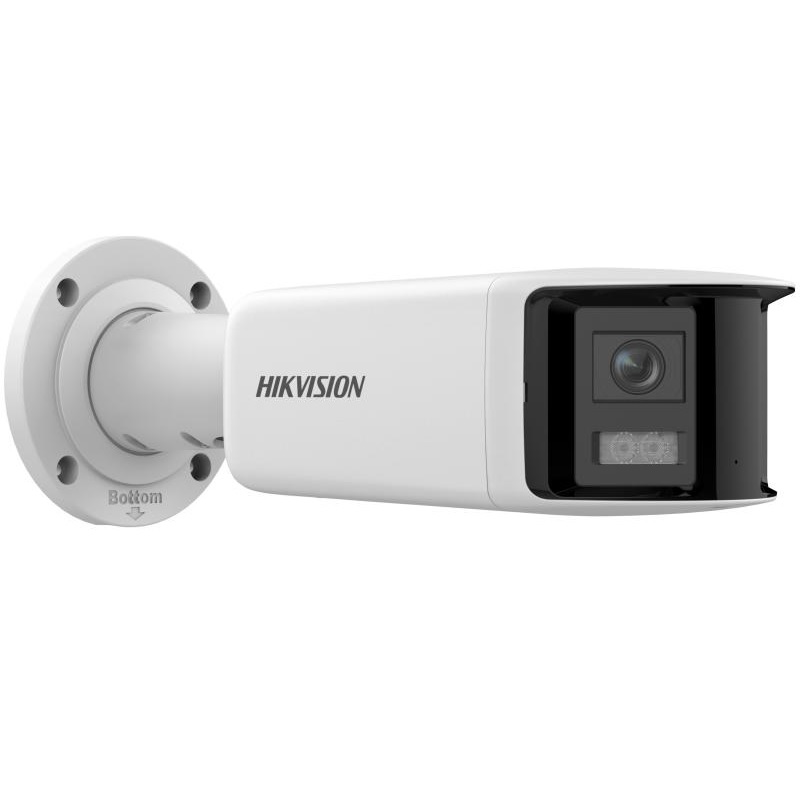

The Hikvision DS-2CD2T67G2P-LSU/SL is a 6-megapixel panoramic ColorVu fixed bullet network camera designed to deliver high-quality, full-color images around the clock. Equipped with dual 1/2.5″ progressive scan CMOS sensors and an F1.0 super-aperture lens, it captures bright and vivid images even in low-light conditions. The camera offers a 180° horizontal field of view, ensuring comprehensive coverage of wide areas without blind spots. Its 130 dB Wide Dynamic Range (WDR) technology enhances image clarity in scenes with strong backlighting.
In addition to its imaging capabilities, the DS-2CD2T67G2P-LSU/SL incorporates advanced features such as human and vehicle classification based on deep learning, reducing false alarms and enhancing security monitoring efficiency. It also includes active deterrence functions like a strobe light and audio alarm to warn off intruders proactively. The camera supports efficient H.265+ compression technology, optimizing bandwidth and storage usage. With an IP67-rated water and dust-resistant housing, it is suitable for both indoor and outdoor environments.
Technical Specifications:
Camera | |
---|---|
Image Sensor | 2 × 1/2.5″ Progressive Scan CMOS |
Max. Resolution | 3632 × 1632 |
Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
Shutter Time | 1/3 s to 1/100,000 s |
Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360° |
Lens | |
Lens Type | Fixed focal lens, dual lens, 2.8 mm |
Focal Length & FOV | 2.8 mm, Horizontal FOV: 180°, Vertical FOV: 81° |
Lens Mount | M12 |
Iris Type | Fixed |
Aperture | F1.0 |
Depth of Field | 2 m to ∞ |
DORI | |
DORI | 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
Illuminator | |
Supplement Light Type | White Light |
Supplement Light Range | Up to 40 m |
Smart Supplement Light | Yes |
Video | |
Main Stream | 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) |
Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) 60 Hz: 20 fps (1200 × 536, 960 × 432) |
Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline Profile, Main Profile, High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR, VBR |
SVC | H.264 and H.265 encoding |
ROI | 1 fixed region(s) for main stream |
Audio | |
Audio Type | Mono sound |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC) |
Audio Sampling Rate | 8/16/32/44.1/48 kHz |
Environment Noise Filtering | Yes |
Network | |
Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, RTP, RTSP, NTP, UPnP, SMTP, SNMP, Websocket, etc. |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (Profile S, G, T), ISAPI, SDK |
User/Host | Up to 32 users, 3 levels: admin, operator, user |
Security | HTTPS, 802.1X, watermark, IP filtering, audit log, TLS 1.2, etc. |
Network Storage | NAS (NFS, SMB/CIFS), ANR, encrypted microSD support |
Client | iVMS-4200, Hik-Connect, Hik-Central |
Web Browser | IE 10/11 (plugin), Chrome, Firefox, Edge (plugin-free) |
Image | |
Image Parameters Switch | Yes |
Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance |
Day/Night Switch | Day, Night, Auto, Schedule |
WDR | 130 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, HLC, 3D DNR |
Privacy Mask | 8 rectangular privacy masks |
Interface | |
Ethernet | 1 × RJ45 10/100M self-adaptive |
On-Board Storage | microSD/SDHC/SDXC slot, up to 256 GB |
Microphone | Built-in |
Speaker | Max. 1 W, 97 dB @10 cm |
Audio I/O | 1 input & 1 output, 3.3 Vpp, unbalanced |
Alarm I/O | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
Reset Key | Yes |
Event | |
Basic Event | Motion detection, alarm, flashing light, audible alert |
Smart Event | Line crossing, intrusion, region entrance/exit, scene change |
Linkage | Upload to FTP/NAS/SD, email, alarm, capture, warning light |
General | |
Power | 12 VDC ±25%, PoE (802.3af), max. 12.5 W |
Material | Metal (cover, body, bracket) |
Dimensions | 118.6 × 105.1 × 306.5 mm |
Package Dimensions | 405 × 190 × 180 mm |
Weight | Approx. 1400 g, with package: 2100 g |
Storage Conditions | -30°C to 60°C, humidity ≤ 95% |
Operating Conditions | -30°C to 60°C, humidity ≤ 95% |
Languages | 33 languages including English, Spanish, French, etc. |
Functions | Anti-banding, heartbeat, flash log, pixel counter |
Flashing Light | Yes |
Approval | |
EMC | FCC, CE-EMC, RCM, IC |
Safety | UL, CB, CE-LVD |
Environment | CE-RoHS, WEEE, REACH |
Protection | IP67 |
