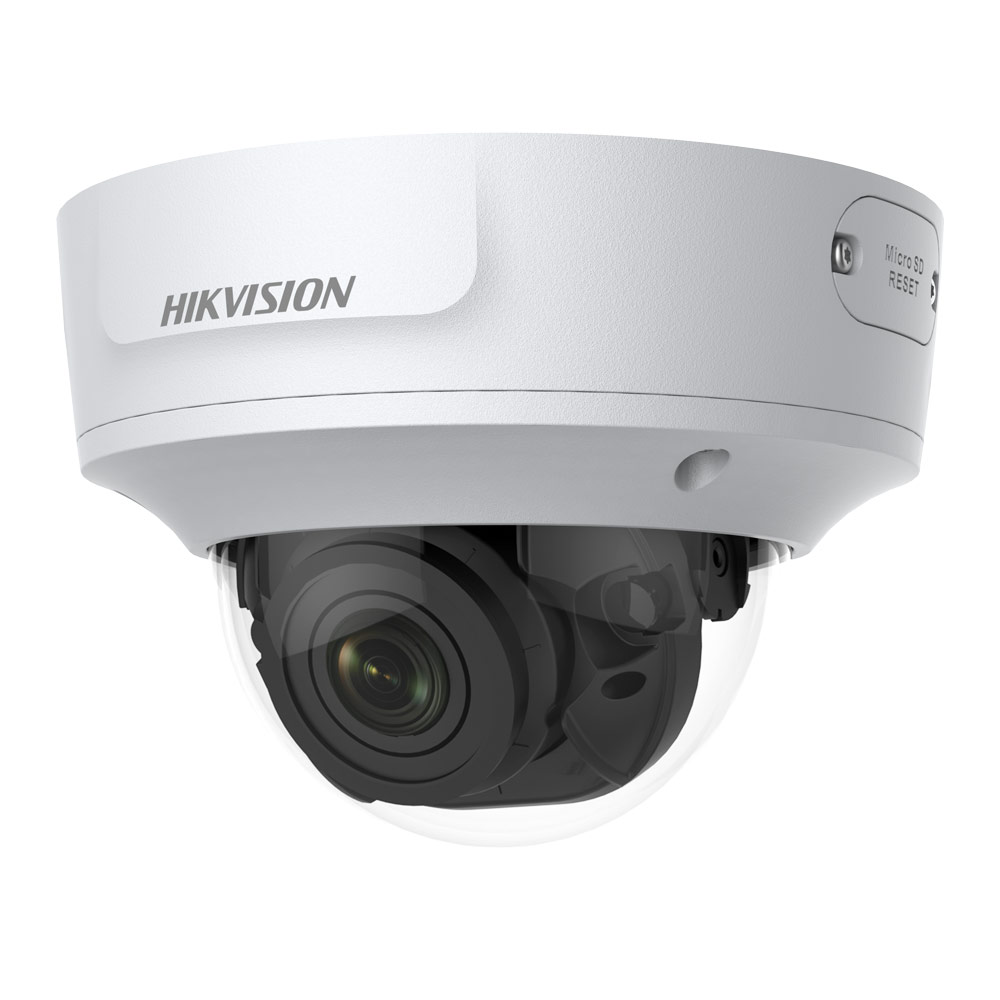

Camera
Image Sensor: 1/2″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 to 12 mm
Lens Mount: Ļ†14
Adjustment Range: Pan: 0Ā° to 355Ā°, tilt: 0Ā° to 75Ā°, rotate: 0Ā° to 355Ā°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 3840 Ɨ 2160
Sub Stream: 50Hz: 25fps (640 Ɨ 480, 640 Ɨ 360, 320 Ɨ 240)
60Hz: 30fps (640 Ɨ 480, 640 Ɨ 360, 320 Ɨ 240)
Frame Rate: 50Hz: 20 fps (3840 Ɨ 2160), 25 fps (3072 Ɨ 1728, 2560 Ɨ 1440, 1920 Ɨ 1080, 1280 Ɨ 720)
60Hz: 20 fps (3840 Ɨ 2160), 30 fps (3072 Ɨ 1728, 2560 Ɨ 1440, 1920 Ɨ 1080, 1280 Ɨ 720)
Third Stream: 50Hz: 25fps (1280 Ɨ720, 640 Ɨ 360, 352 Ɨ 288)
60Hz: 30fps (1280 Ɨ720, 640 Ɨ 360, 352 Ɨ 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 Ā°C ~ 60 Ā°C (-22 Ā°F ~ 140 Ā°F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC Ā± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.9A, max. 10.5W
PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Impact Protection: IK10
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: Ī¦ 153.4 Ɨ 133.1 mm (Ī¦ 6″ Ɨ 5.2″)
Weight: Camera: 1300 g (2.9 lb.)
With package: 1500 g (3.3 lb.)
