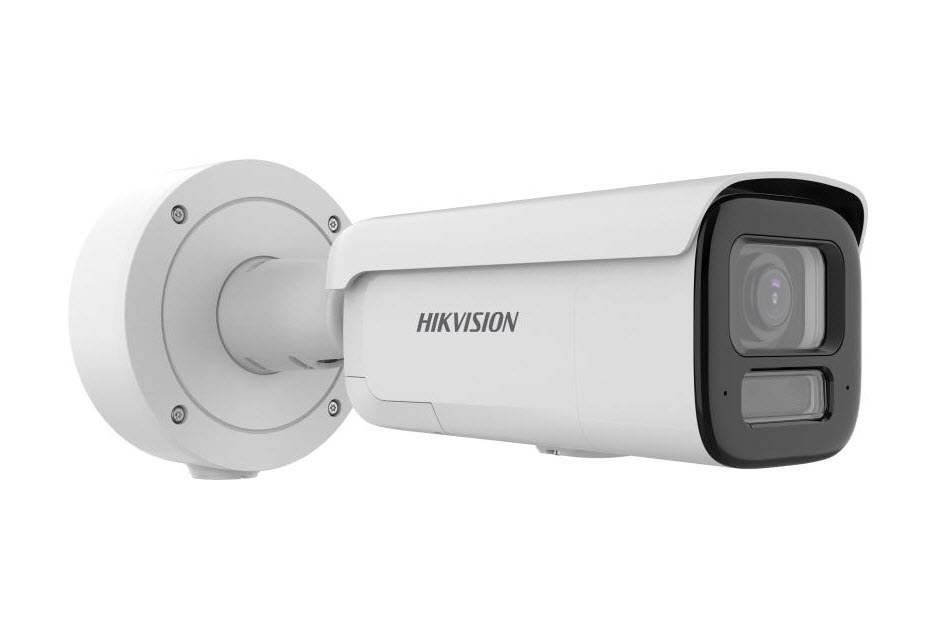

Hikvision DS-2CD3686G3-LIZSU(Y)/SL 8MP Dual Illumination Strobe Light and Audible Warning Motorized Varifocal Bullet Camera

Camera

• Image Sensor 1/1.8″ Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time1 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type Varifocal lens, motorized lens, 2.7 to 13.5 mm
• Focal Length & FOV 2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
• Lens MountIntegrated
• Iris TypeDC iris
• ApertureF1.2
• Depth of Field1 m to ∞

DORI

• DORI

  Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

  Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes
• IR Wavelength850 nm

HEOP

• Open Resources

  Memory: 40 MB,

  Smart RAM: 450 MB,

  eMMC: 2 GB

• Computing Power 1.5 TOPS
• Open Capability HEOP 2.0 OpendevSDK
• Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
• Programming LanguageC,C++

Video

• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Fourth Stream

  50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360)

  *Fourth stream is supported under certain settings.

  60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)5 fixed regions for main stream and sub-stream
• e-PTZSupport Patrol and Auto Tracking settings

Audio

• Audio Type Mono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+

  Local service: Chrome 91+, Firefox 88+, Edge 91+


• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)130 dB
• Image StabilizationEIS
• Privacy Mask8 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
• Audio

  Built-in Microphone: Arrayed dual-microphone,

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventScene change detection, audio exception detection, defocus detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light

• Deep Learning Function
• Face CaptureYes
• People CountingYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection,

  PoE: IEEE 802.3at, Class 4, max. 18 W

• MaterialFront cover: Metal, body: Metal, bracket: Metal
• Dimension298 mm × 97.9 mm × 95.7 mm (11.8″ × 3.9″ × 3.8″)
• Package Dimension386 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• WeightApprox. 1555 g (3.4 lb.)
• With Package WeightApprox. 2366 g (5.2 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Flashing LightWhite Light

• Approval
• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU
• ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
