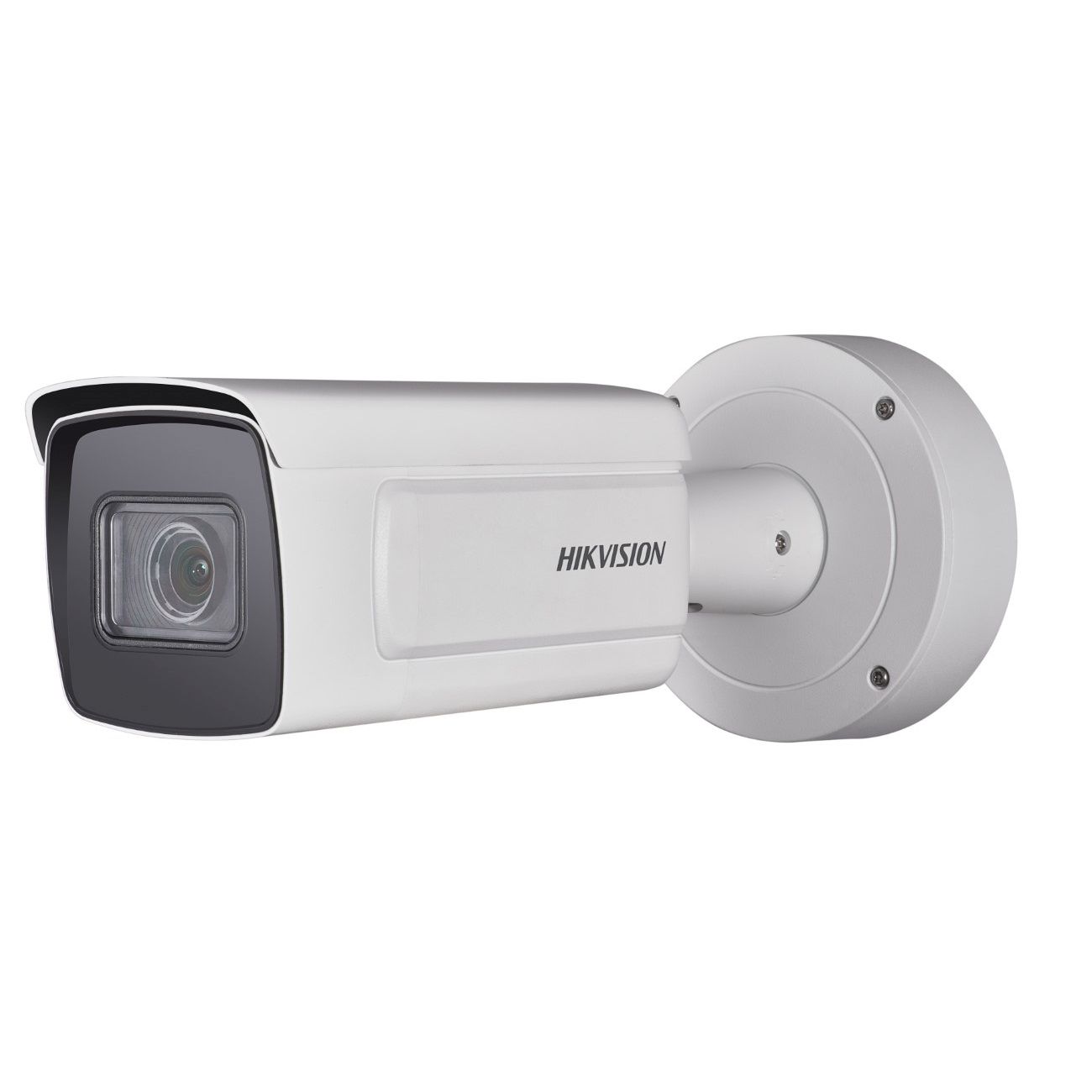

Hikvision DS-2CD5AC5G0-IZHS 12MP VF Bullet Camera
Part of Hikvision’s 4-Line range of cameras, the HIK-2CD5AC5G0IZS is an outdoor bullet camera that produces an exceptional 12MP high resolution video. Coupled with inbuilt high performance IR technology delivering unparalleled clarity at night for up to 50m and a 2.8-12mm auto-focus lens, this camera is great for covering a wide area so you can focus on the detail you really want. Additionaly, it also supports the H.264+ intelligent compression algorithm which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%.
- 2.8 to 12mm motor-driven lens
- Color: 0.008 Lux at (F1.2, AGC ON)
- H.265, H.265+, H.264, H.264+
- Digital WDR
- 6 behavior analyses, 2 exception detection and face detection
There is usually a 3-4 week lead time on this item.
$1,760.00 inc GST +3 Year Warranty & Support
Features:
- 1/1.7″ Progressive Scan CMOS
4000 x 3000 at 20fps
2.8 to 12mm motor-driven lens
Color: 0.008 Lux at (F1.2, AGC ON)
H.265, H.265+, H.264, H.264+
Digital WDR
3D DNR
IR range up to 50 m
Five defined streams and up to five custom streams
6 behavior analyses, 2 exception detection and face detection
Built-in microSD/SDHC/SDXC card slot, up to 256 GB
Alarm I/O
IP67, IK10
| Image Sensor: | 1/1.7″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.8, AGC ON), 0 Lux with IR on | |
| Shutter time: | 1 s to 1/100,000s | |
| Slow shutter: | Yes | |
| Lens: | 2.8 to 12 mm | |
| Lens Mount: | Integrated | |
| Auto Iris: | DC drive, P-iris | |
| Adjustment Range: | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto, semi-auto, manual |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio bit rate: | Baseline Profile/Main Profile/High Profile | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 4000 × 3000 | |
| Frame Rate: | 50Hz: 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) 60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) |
|
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) |
|
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
|
| Image Enhancement: | BLC, HLC, 3D DNR, Defog, EIS, Lens Distortion Correction | |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
| Distortion Correction: | Support | |
| Target Cropping: | Yes | |
| BLC: | Support | |
| HLC: | Support | |
| Smart Defog: | Support | |
| EIS: | Support | |
| 3D DNR: | Support | |
| ROI: | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port | |
| Alarm: | 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A) | |
| Alarm Input: | 2 | |
| Alarm Output: | 2 | |
| On-board storage: | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, defocus detection | |
| Recognition: | Face Detection | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| IR Range: | Up to 50 m | |
| Operation Condition: | -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 V DC ± 20%, PoE (802.3at, class 4) | |
| Power Consumption: | -IZS: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W -IZHS: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W |
|
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″) |
|
| Weight: | Camera: approx. 2.45 kg (5.40 lb.) With package: approx. 2.7 kg (5.95 lb.) |
|
