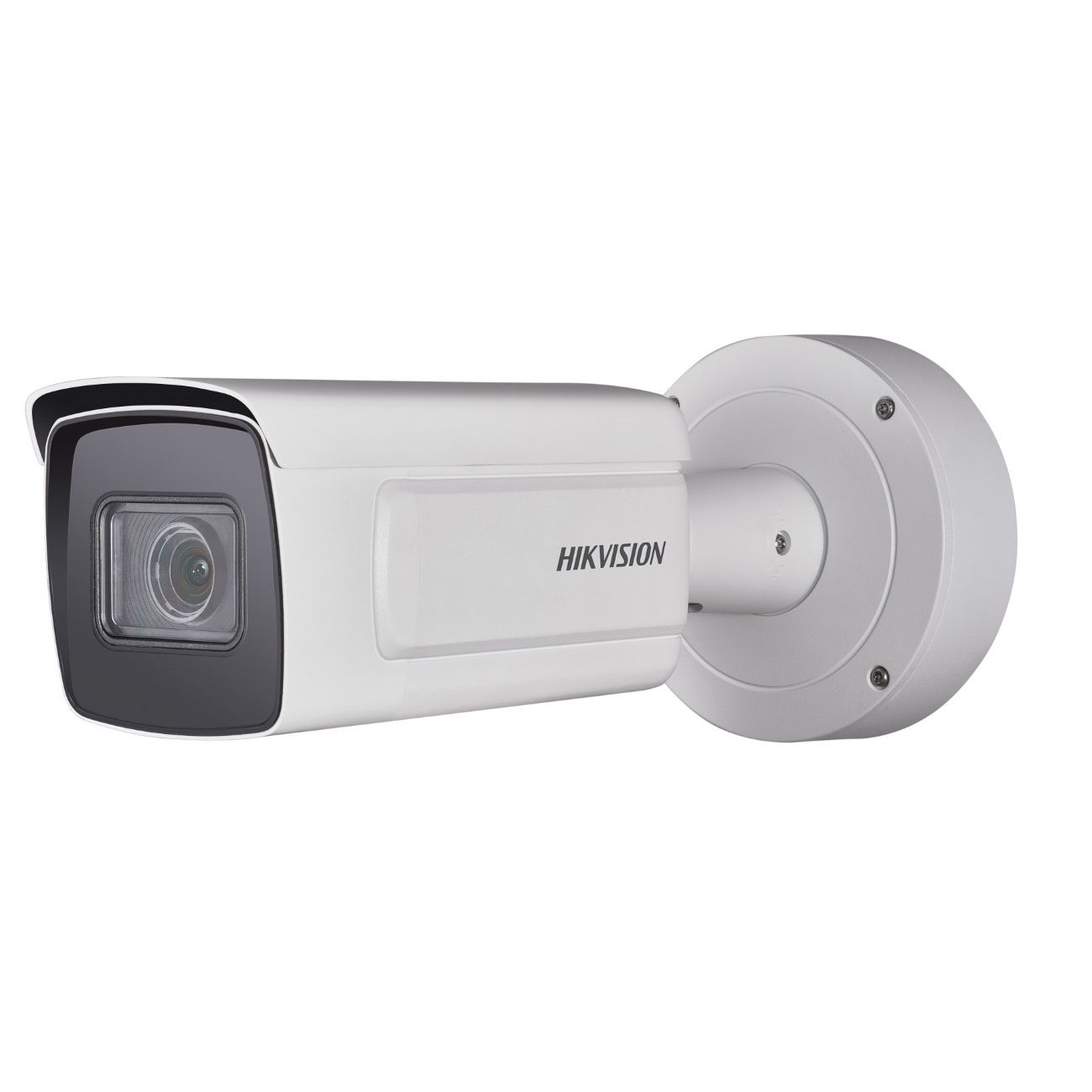

Hikvision DS-2CD7A46G0-IZS Outdoor DeepInView Bullet AI Camera, NEMA 4X, IP67, IK10, 2.8-12mm

Camera

• Image Sensor 1/1.8ʺ Progressive Scan CMOS
• Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
• Shutter Speed 1 s to 1/100,000 s
• Slow Shutter Yes
• Wide Dynamic Range 140 dB
• Day & Night IR cut filter
• Angle Adjustment Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focus Auto, semi auto, manual
• Lens Type Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
• FOV 2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45° 8 to 32 mm, horizontal FOV 37.7° to 15.2°, vertical FOV 21° to 8.6°, diagonal FOV 43.3° to 17.24°
• Aperture 2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range
• Lens Mount Integrated
• Auto-Iris P-iris

Illuminator

• IR Range 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
• Wavelength 850 nm

Video

• Max. Resolution 2560 × 1440
• Video Stream 5 defined streams and up to 5 custom stream
• Main Stream 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) ,60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• H.264+ Main stream support
• H.265+ Main stream support
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region Of Interest (ROI)-aMain stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Network

• Simultaneous Live View Up to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth Streaming Yes
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
• Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+


• Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
• Target Cropping Yes
• Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Alarm 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A)
• Video Output 1Vp-p composite output (75 Ω/CVBS), only for adjustment
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset Reset via reset button on camera body, web browser and client software
• Communication Interface 1 RJ45 10M/100M/1000M Ethernet port
• Interface Style Connector panel
• Heater-H: yes

Event

• Basic Even tMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event Line crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
• Counting Counting

Deep Learning Function

• Face CaptureFace detection performance: detects up to 30 faces at the same time;Detectable face position: supports swing left and right from -90° to 90°,tilt up and down from -30° to 60°
• Premier ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General

• Linkage Method Trigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email
• Firmware Version 5.6.0
• Web Client Language 32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Storage Conditions-30 °C to 65 °C (-22 °F to 149 °F) ,Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4)
• Power Consumption And Current-IZS: 12 VDC, 1.2 A, 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 ,-IZHS: 12 VDC, 1.4 A, 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
• Camera Dimension Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″) ,With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
• Camera WeightCamera: approx. 2.45 kg (5.40 lb.) With package: approx. 2.7 kg (5.95 lb.)

Approval

• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
