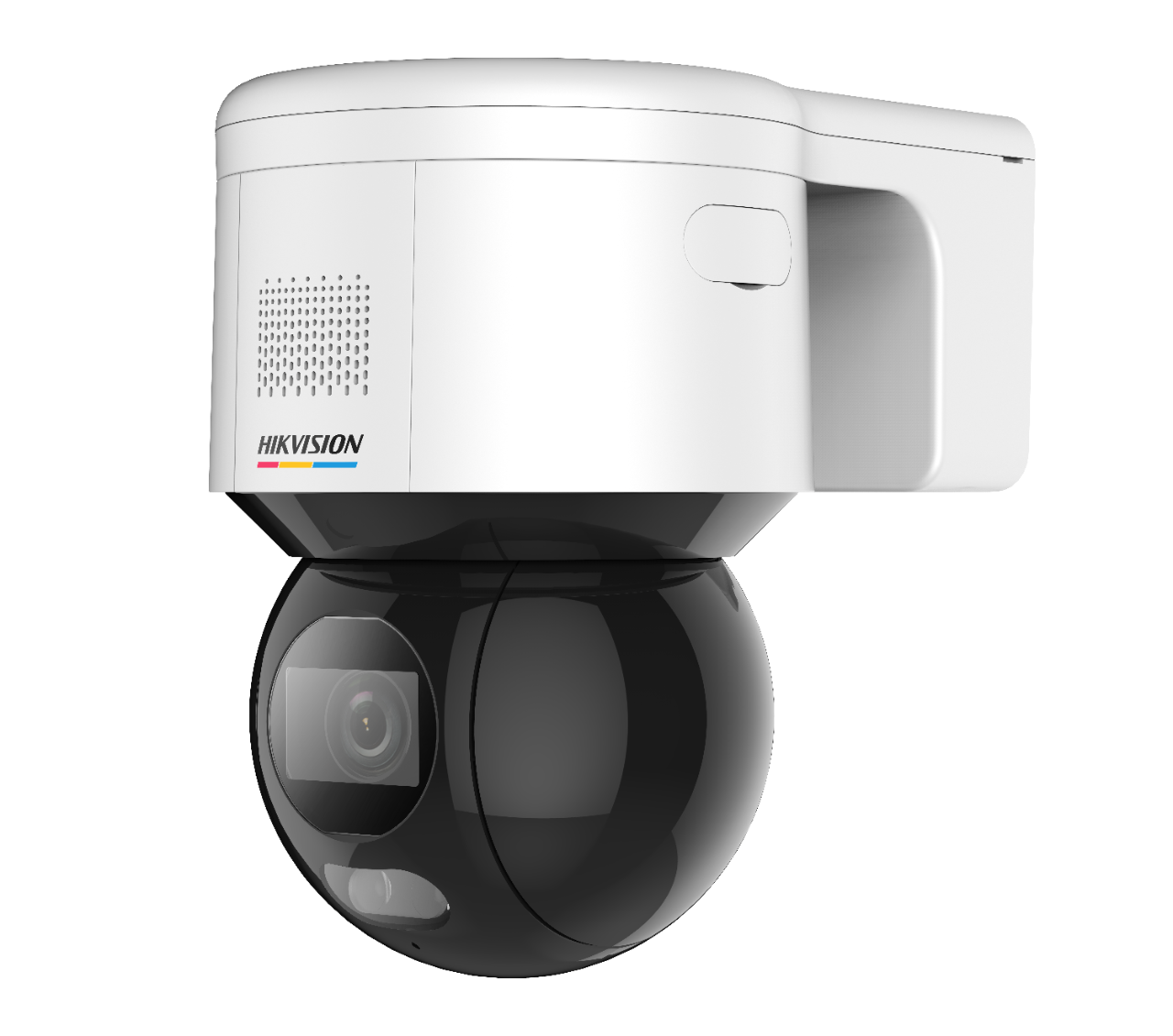

Hikvision DS-2DE3A400BW-DE T5 ColorVu 4MP Outdoor Pan & Tilt Network Dome Camera


Part of Hikvision’s ColorVu range, the DS-2DE3A400BW-DE is a Pan and Tilt camera that produces an exceptional 4MP high-resolution video. Powered by the latest innovation in image sensor technology it supports 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light. It also features Acusense.







NOTE – this cam doesn’t have ZOOM. Pan and Tilt only.

PTZ-Camera Quick Start Guide

Datasheet-of-DS-2DE3A400BW-DE_WT5

User Manual

Hikvision’s DS-2DE3A400BW-DE 4 MP ColorVu PT Camera can be widely used in multiple indoor and outdoor scenes such as malls, stores, parks, factories, scenic areas, entrances, and exits.

  • Minimum Illumination: Color: 0.0005 Lux @ (ƒ/1.0, AGC On); 0 Lux with White Light
  • Up to 2560 × 1440 @ 30 fps
  • Accurate Human/Vehicle Target Classification/Alarm, and Face Capture Based on Deep Learning Hardware and Algorithm
  • Linked Audible and Visual Alarm, Built-in Microphone and Speaker
  • 24/7 Color Imaging with Low Power Consumption. Up to 30 m White Light Distance
  • IP66; PoE

$429.00 inc GST +3 Year Warranty & Support

  • Camera Module
  • Image Sensor 1/1.8" progressive scan CMOS
  • Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
  • Shutter Speed 1/1 to 1/30,000 s
  • Day & Night 24/7 colorful imaging
  • Day/Night Switch day, night, auto, scheduled-switch
  • BLC yes
  • WDR 120 dB WDR
  • HLC yes
  • 3D DNR yes
  • Defog yes
  • EIS yes
  • Regional Exposure yes
  • Image Settings saturation;brightness;contrast;sharpness
  • Image Parameters Switch yes
  • White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp ;Locked WB
  • Digital Zoom 16x
  • Privacy Maskup to 24 masks (8 masks for each scene)
  • SNR>52dB
  • General Function mirror, password protection, watermark, IP address filter
  • Lens
  • Focal Length 4 mm
  • FOV

    Horizontal field of view: 88.7°

    Vertical field of view: 46.5°

    Diagonal field of view: 105.0°

  • Aperture F1.0
  • Illuminator
  • White Light Distance 30 m
  • PTZ
  • Movement Range (Pan) 350°
  • Movement Range (Tilt) 0° to 90°
  • Pan Speed pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
  • Tilt Speed tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional Zoom yes
  • Presets 300
  • Power-Off Memory yes
  • Park Action preset
  • 3D Positioning yes
  • PTZ Status Display yes
  • Preset Freezing yes
  • Scheduled Task preset;dome reboot;dome adjust;aux output
  • Video
  • Max. Resolution 2560 × 1440
  • Stream Type main stream;sub-stream;third stream
  • Main Stream

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
