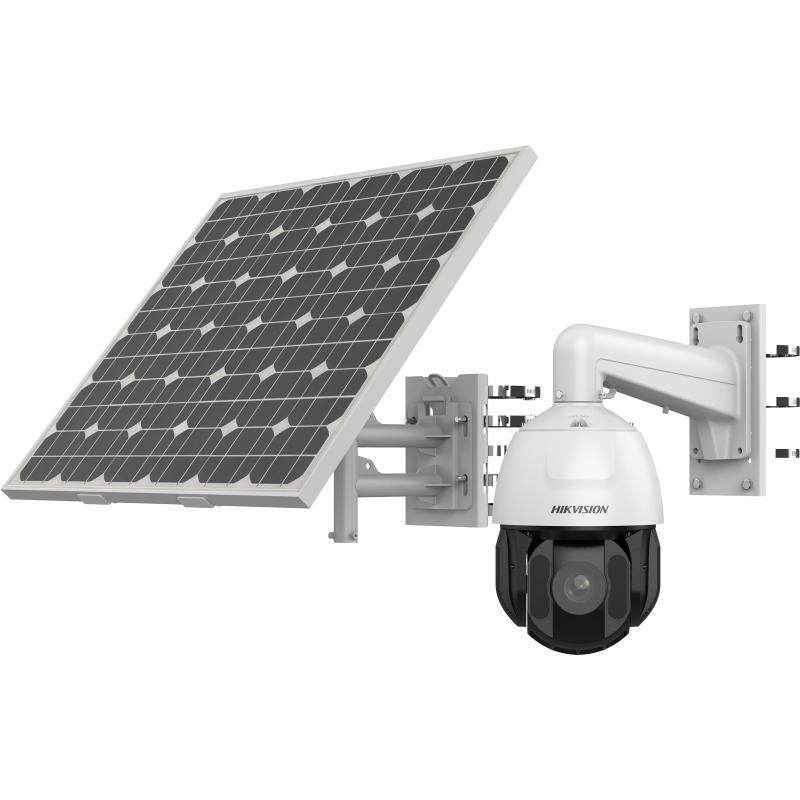

Hikvision DS-2DE5425IWG-K/4G 4MP 4G Solar PTZ Camera, 25x, 256GB, Includes Solar Panel, Battery, IR, IP66

Camera

• Image Sensor1/2.8″ progressive scan CMOS
• Max. Resolution2560 × 1440
• Min. Illuminationcolor: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR
• Shutter Speed1 s~1/30,000 s
• Day & NightIR cut filter
• Zoom25 × optical,16 × digital
• Slow Shutteryes
• HLCyes
• 3D DNRyes

Lens

• Focal Length4.8 mm~120 mm
• FOV

  Horizontal field of view: 55° to 2.4° (wide-tele),

  Vertical field of view: 33° to 1.4° (wide-tele),

  Diagonal field of view: 61.5° to 2.8° (wide-tele)

• Focussemi-auto||manual||auto
• ApertureF1.6
• Zoom Speedapprox.3.6s

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeIR distance: up to 150 m

PTZ

• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
• Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Panyes
• Presets300
• Preset Freezingyes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Power-Off Memoryyes

Video

• Main Stream

  50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

  60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

• Sub-Stream

  50 Hz：25 fps（704 × 576，640 × 480，352 × 288）

  60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

• Third Stream

  50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）

  60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

• Video CompressionH.265||H.264||MJPEG
• H.264 TypeBaseline Profile||Main Profile||High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)yes
• Region Of Interest (ROI)fixed region

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

Network

• ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
• APIOpen-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
• User/Host32
• Security Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• Network StorageNAS (NFS, SMB/ CIFS)
• ClientiVMS-4200
• Web BrowserChrome 57+、Firefox 52+、Safari 12+||IE10-11

• Wireless (Wi-Fi)
• Wireless RangeUp to 20 m (The performance varies based on actual environment)

• Wireless (Mobile Communication)
• FrequencyLTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
• StandardLTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH


• Image Parameters Switch yes
• Image Settingssaturation||brightness||contrast||sharpness
• Day/Night Switchday||night||auto||scheduled-switch
• Wide Dynamic Range (WDR)yes
• SNR＞52dB
• Defogyes
• Image EnhancementBLC
• Privacy Maskup to 24 masks||mask color configurable
• Regional Focusyes
• Regional Exposureyes

Interface

• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
• Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
• Alarm2 alarm inputs
• Resetyes
• Power Output12 VDC, max. 1000 mA

• Event
• Basic EventMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection,

  Face detection

• Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)

• General
• Power12 VDC
• DimensionØ208 mm × 344.8 mm
• Weight

  Approx. 29.9 kg (65.9 lb.)

  With Package Weight:Approx. 35.3 kg (77.8 lb.)

• MaterialMetal
• Operating Condition-30℃ to 65℃ (-22°F to 149°F)
• Demistyes
• Power Consumption And CurrentMax. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

Battery

• Battery Type Lithium
• Battery Voltage10.8 V
• Capacity360 WH (90 WH for each battery)
• Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Cycle LifetimeProactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
• Battery LifeMore than 500 cycles
• Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

• Approval
• ProtectionIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
