Hikvision Cameras - World's Leading CCTV Manufacturer
2 Megapixel PTZ Cameras, CCTV Surveillance, Hikvision, Hikvision PTZ Cameras

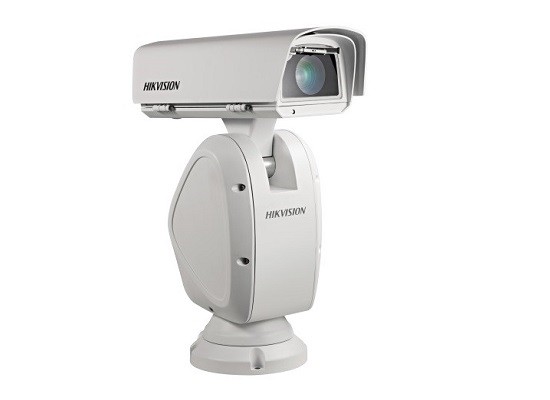

Hikvision DS-2DY9250X-A 2MP 50× Network Positioning System
Hikvision DS-2DY9250X-A 2MP 50× Network Positioning System adopts 1/2.8″ progressive scan CMOS chip. With the 50× optical zoom lens, the camera offers more details over expansive areas.
This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic
spots, stations and large venues, etc
NOTE – THIS IS A SPECIAL ORDER ITEM – 6-7 WEEKS LEAD TIME
$13,455.00 inc GST +3 Year Warranty & Support
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ HD progressive scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Minimum Illumination: | Color: 0.05 Lux @(F1.8, AGC ON) B/W: 0.01 Lux @(F1.8, AGC ON) |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 1/1 s to 1/30,000 s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 6.6 mm to 330 mm, 50× Optical | |
| Zoom Speed: | Approx. 4.5 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 41.3° to 1.1° (wide-tele) Vertical field of view: 23.6° to 0.6° (wide-tele) Diagonal field of view: 47.4° to 1.3° (wide-tele) |
|
| Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range: | F1.8 to F5.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Speed: | Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s | |
| Tilt Range: | -90°-40° (Auto Flip ) | |
| Tilt Speed: | Configurable, from 0.1°/s to 40°/s, Preset Speed: 100°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets for each patrol | |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Input & Output | ||
|---|---|---|
| CVBS Output: | 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC | |
| Audio Input: | 1-ch audio input | |
| Audio Output: | 1-ch audio output | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) |
|
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Three-Stream: | Support | |
| Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| User/Host Level: | Up to 32 users, 3 levels: Administrator, Operator and User | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| Fiber Optical Interface (Available for Fiber dome) | ||
|---|---|---|
| Fiber Type: | 1 1000 M FC interface, TX1310/ RX1550 nm wavelength, 20 km transmission distance | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max.: 70 W | |
| Working Temperature/Humidity: | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) Humidity: ≤ 90% |
|
| Protection Level: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Material: | Aluminum alloy ADC12 | |
| Dimensions: | 390 mm × 491 mm (15.35″ × 19.33″) | |
| Weight (approx.): | Approx. 11 kg (24.25 lb) | |
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ HD progressive scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Minimum Illumination: | Color: 0.05 Lux @(F1.8, AGC ON) B/W: 0.01 Lux @(F1.8, AGC ON) |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 1/1 s to 1/30,000 s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 6.6 mm to 330 mm, 50× Optical | |
| Zoom Speed: | Approx. 4.5 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 41.3° to 1.1° (wide-tele) Vertical field of view: 23.6° to 0.6° (wide-tele) Diagonal field of view: 47.4° to 1.3° (wide-tele) |
|
| Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range: | F1.8 to F5.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Speed: | Configurable, from 0.1°/s to 100°/s, Preset Speed: 50°/s | |
| Tilt Range: | -90°-40° (Auto Flip ) | |
| Tilt Speed: | Configurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets for each patrol | |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Input & Output | ||
|---|---|---|
| CVBS Output: | 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC | |
| Audio Input: | 1-ch audio input | |
| Audio Output: | 1-ch audio output | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) |
|
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| User/Host: | Up to 32 users, 3 levels: Administrator, Operator and User | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| Fiber Optical Interface (Available for Fiber dome) | ||
|---|---|---|
| Fiber Type: | 1 1000 M FC interface, TX1310/ RX1550 nm wavelength, 20 km transmission distance | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max.: 70 W | |
| Working Temperature/Humidity: | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) Humidity: ≤ 90% |
|
| Protection Level: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Material: | Aluminum alloy ADC12 | |
| Dimensions: | 390 mm × 491 mm (15.35″ × 19.33″) | |
| Weight (approx.): | Approx. 11 kg (24.25 lb) | |
