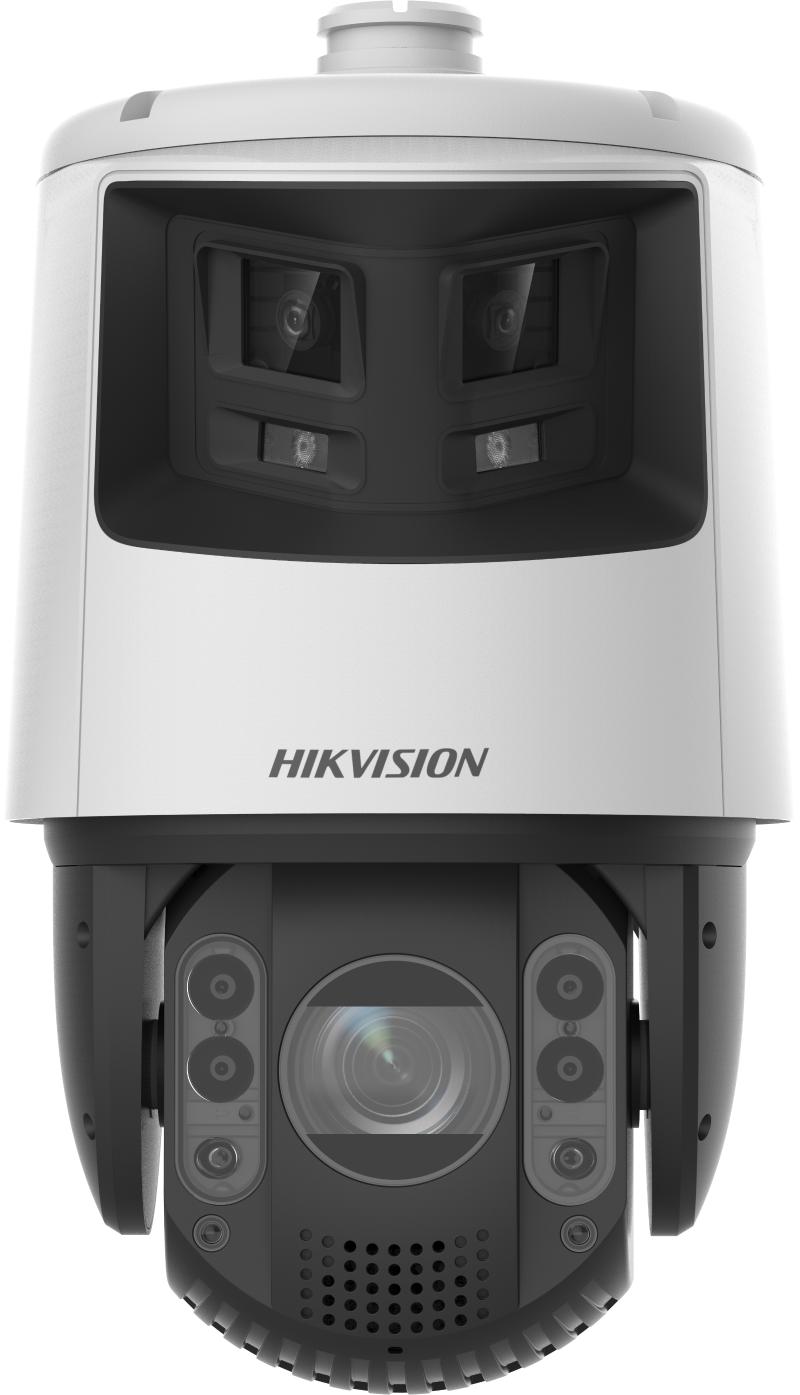

Hikvision DS-2SE7C432MWG-EB-26 6MP+4MP TandemVu Outdoor PTZ Camera, Acusense 32x Zoom

Camera

• Image Sensor[Panoramic channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
• Max. Resolution[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
• Min. Illumination[PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed1 s to 1/30,000 s
• Day & NightIR cut filter
• Zoom32 × optical,16 × digital
• Slow Shutteryes
• HLCyes
• 3D DNRyes

Lens

• Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
• FOV[Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° [PTZ channel] horizontal field of view: 60.2° to 2.3°
• FocusAuto,semi-auto,manual
• Aperture[Panoramic channel] F1.0, [PTZ channel] Max. F1.5
• Zoom Speed[Panoramic channel] No, [PTZ channel] approx. 5.6 s

Illuminator

• Supplement Light RangeIR distance: up to 200 m
• White Light DistancePanoramic channel: 30 m

PTZ

• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90°
• Pan SpeedPan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional PanYes
• Presets300
• Preset FreezingYes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,aux output,dome adjust
• Power-off MemoryYes

Video

• Main Stream[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
• Sub-Stream[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)
• Third Stream[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16384 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)yes
• Region of Interest (ROI)fixed region

Audio

• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
• Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
• Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filteringyes

Network

• ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets,SRTP
• Simultaneous Live View20
• APIISUP,SDK,ISAPI,Open Network Video Interface (Profile S, Profile G, Profile T)
• User/Host32
• SecurityPassword protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),IP address filter
• Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• ClientiVMS-4200,HikCentral Pro,Hik-Connect
• Web BrowserIE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+


• Image Parameters Switch Yes
• Image Settingssaturation, brightness, contrast, sharpness
• Day/Night SwitchDay,night,auto,schedule
• Wide Dynamic Range (WDR)[Panoramic channel] Digital WDR, [PTZ channel] 120 dB
• SNR＞52dB
• Defog yes
• Image Stabilizationyes
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focusyes
• Regional Exposureyes

Interface

• Ethernet Interface1 RJ45 10/100M self-adaptive Ethernet port
• On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

  1 output (line out), line level, output impedance: 600 Ω

• Alarm2 input(s), 1 output(s)
• ResetYes

Event

• Basic EventMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
• Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing
• Smart TrackingManual tracking,auto-tracking
• Smart Linkagepanorama linkage, tracking takeover, track in turn

Deep Learning Function

• Face CaptureSupport detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General

• Power24 VAC, Max. 60 W, Hi-PoE
• DimensionØ222.3 mm × 387.2 mm (Ø8.75″ × 15.2″)
• WeightApprox. 6 kg (13.23 lb.)
• MaterialADC12,Plastic,PC+10%GF
• Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• General Functionmirror,watermark,password protection,IP address filter
• DemistYes

Approval

• ProtectionIP66 (IEC 60529-2013)
