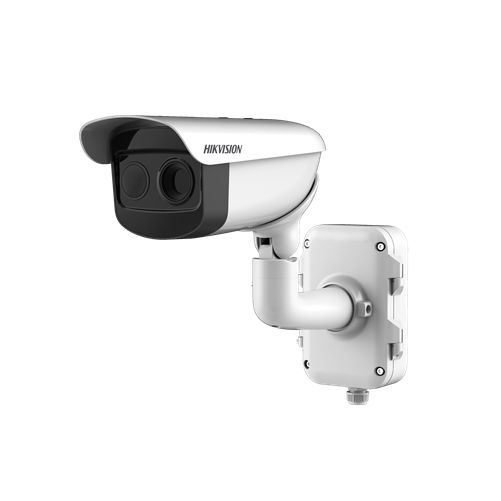

Thermal Module
Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 384*288
Detector Pitch: 17um
Response Wavebond: 8um to 14um
NETD: < 40mk(@25°C,F#=1.0)
Lens (focal length): 25mm
MRAD: 0.68 mrad
Field of View: 14.88°x 11.19°
Min. Focusing Distance: 13m
F number: 1.0
Optical Camera
Image Sensor: 1/2.8’’ Progressive Scan CMOS
Max. Image Resolution: 1920 × 1080
Min. Illumination: Color: 0.001 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON)
Focal Length: 13 mm
Field of View: 24.0° – 13.7° (Wide-Tele)
WDR: 120dB
Shutter Speed: 1 to 1/100,000s
Day & Night: IR Cut Filter with Auto Switch
Image Function
Bi-spectrum Image Fusion: Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture: Combins details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA
rules
Temperature Measurement: Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range: -20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy: ±8 ° C (14.4 ° F)
Fire Detection: Support 10 fire points
Infrared
IR Distance: Up to 100m
IR IntenSity and Angle: Auto Adjust
Network
Main Stream: Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)
Thermal: 50fps (384×288)
Sub Stream: Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)
Thermal: 50fps (384×288)
Video Compression: H.264/MJPEG,H.264+ encoding with Baseline/Main/High Profile
Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I
GMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view: Up to 20-ch
User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
IP address filtering
Integration
Alarm Input: 2-ch Inputs (0-5V DC)
Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm Output: 2-ch relay outputs, alarm response actions configurable
Audio Input: 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output: Linear Level; Impedance: 600Ω
Onboard Storage: Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
Ethernet: 1 RJ45 10M/100M Self-adaptive Ethernet interface
Analog Video Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming: Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client: iVMS-4200
Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
Power Consumption: 24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 15W (22W with De-icing Heater On),
PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Power: 24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Menu Language: English
Working Temperature/ Humidity: From -40° C to 60° C (-40° F to 140°F); Humidity: 90% or Less
Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: 535 mm × 171 mm × 400 mm (21.06 ” × 6.73″ × 15.75 “)
Weight: Approx. 6 Kg (13.23 lb)
Smart Functions Range
Lens (focal length): 25mm
VCA range (Vehicles): 750m
VCA range (humans): 250m
Temperature measurement (Object:2*2m): 585m
Temperature measurement (Object:1*1m): 295m
Fire Detection (Object:2× 2 m): 1470m
Fire Detection (Object:1× 1 m): 735m
Wide Range Coverage
Lens (focal length): 25mm
Detection range (Vehicles): 2255m
Detection range (Humans): 735m
Recognition range (Vehicles): 564m
Recognition range (Humans): 184m
Identification range (Vehicles): 282m
Identification range (Humans): 92m
