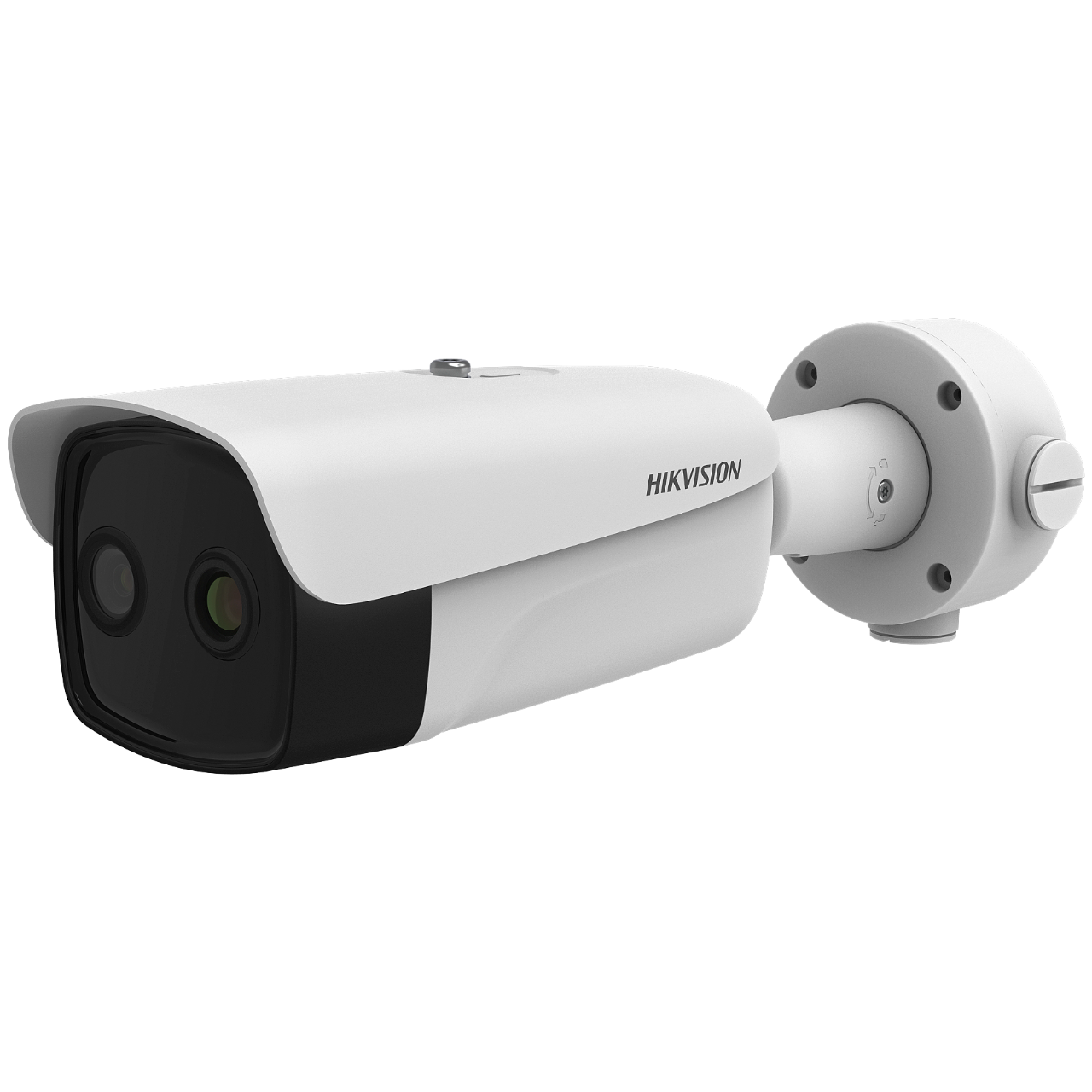

Hikvision DS-2TD2637T-10/P Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera

Thermal Module

• Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution 384 × 288
• Pixel Interval 17 μm
• Response Waveband 8 μm to 14 μm
• NETD≤ 35 mk (25 °C, F# = 1.0)
• Focal Length 9.7 mm
• IFOV 1.75 mrad
• Field Of View 37.5° × 28.5° (H × V)
• Min. Focusing Distance 1 m
• Aperture F 1.0
• Digital Zoom ×2, ×4, ×8

Optical Module

• Image Sensor 1/2.7″ Progressive Scan CMOS
• Resolution 2688 × 1520
• Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
• Shutter Speed 1 s to 1/100,000 s
• Focal Length 4 mm
• Field Of View 84° × 44.8° (H × V)
• Aperture (Range) F 1.6
• WDR 120 dB

Image Effect

• Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
• Picture In Picture Display partial image of thermal channel on the full screen of optical channel
• Target Coloration Yes. Supported in white hot and black hot mode.

Illuminator

• IR Distance Up to 40 m
• IR Intensity And Angle Automatically adjusted

Smart Function

• VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
• Temperature Range – 20 °C to 550 °C (- 4 °F to 1022 °F)
• Temperature Accuracy Max (± 2 °C, ±2 %)
• Fire Detection Dynamic fire detection, up to 10 fire points detectable.

Video And Audio

• Main Stream

  Optical channel

  50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  Thermal channel

  25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

• Sub-Stream

  Optical channel

  50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144)

  60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120)

  Thermal channel

  25 fps (704 × 576, 352 × 288, 320 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM

Network

• Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
• Security User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
• Simultaneous Live ViewUp to 20 channels
• Client iVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0+, Firefox 52.0 +

• Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User

Interface

• Alarm Input 2-ch inputs (0-5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio Output Linear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M self-adaptive Ethernet interface

  1, RS-485 interface

General

• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Power

  24 VAC± 25%, 12 VDC± 25%, two-core terminal block

  PoE (802.3af, class 3)

• Power Consumption

  18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W

  9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W

  PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

• Working Temperature/Humidity

  Temperature: – 40 °C to 65 °C (- 40 °F to 149 °F)

  Humidity: 95% or less

• Protection Level

  IP66 Standard

  TVS 6000 V lightning protection, surge protection, voltage transient protection

• Dimensions 376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
• Approx. 1.82 kg (4.01 lb)
