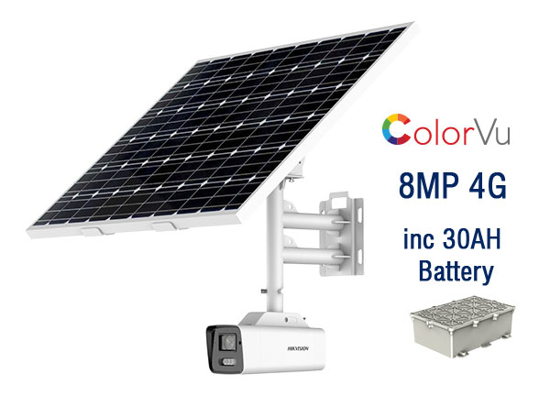

Hikvision DS-2XS6A87G1-LS/C36S80 4K Colorvu Fixed Bullet Solar Power 4G Network Camera w 30AH BATTERY

Camera

• Image Sensor1/1.2″ Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Time1 s to 1/100,000 s

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°

  4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°

• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Iris Type Fixed
• Aperture F1.0
• Lens Mount M20

DORI

2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m

4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes

Video

• Main Stream

  50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (640 × 480, 640 × 360)

  60 Hz: 15 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265

  Sub-stream: H.265/MJPEG

  *Full power mode: main stream supports H.265+

Video Bit Rate32 Kbps to 16 Mbps

• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 encoding
• Region Of Interest (ROI)4 fixed regions for main stream

Network

• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client Hik-Connect (low power mode also supports), Hik-central Professional
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• SIM Card TypeMicroSIM
• Frequency

  DS-2XS6A87G1-L/C32S80:

  LTE-TDD: Band38/40/41

  LTE-FDD: Band1/3/5/7/8/20/28

  WCDMA: Band1/5/8

  GSM: Band3/5/8

  DS-2XS6A87G1-L/C32S80 (US):

  LTE-FDD: Band2/4/5/12/13/17/66/71

  WCDMA: Band2/4/5

  DS-2XS6A87G1-L/C32S80 (LA):

  LTE-TDD: Band38/40

  LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66

  WCDMA: Band1/2/3/4/5/8

  GSM: Band2/3/5/8

  DS-2XS6A87G1-L/C32S80 (JP):

  LTE-TDD: Band41

  LTE-FDD: Band1/3/8/11/18/19/21/26/28

  WCDMA: Band1/8

• Standard

  DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM

  DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA

  DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

  DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA


• Wide Dynamic Range (WDR)120 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR≥ 52 dB
• Privacy Mask4 programmable polygon privacy masks

Interface

• RS-4851 RS-485 (half duplex)
• On-Board Storage

  Built-in memory card slot, support microSD card, up to 256 GB;

  Built-in 64 GB eMMC storage

• Reset KeyYes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, up to 4 regions configurable

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable,

  The smart events are only supported under full power mode.

• Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power

  12 VDC ± 20%, Ø5.5 mm coaxial power plug

  1. Standby power consumption: 53 mW

  2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).

  3. The max. power consumption: 3.2 W

• MaterialFront cover: metal, body: metal, bracket: metal
• Dimension829.9 × 696.3 × 760 mm (32.7″ × 27.4″ × 30″) (Max. size of the camera after it is completely assembled)
• Package Dimension862 × 292 × 765 mm (33.9″ × 10.3″ × 30.1″)
• Approx. 25.4 kg (56.0 lb.)
• With Package WeightApprox. 30.1 kg (66.3 lb.)
• Storage Conditions-20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter

Battery

• Battery Type

  Lithium

  *The battery should be ordered separately.

• Capacity30 Ah
• Battery Voltage10.8 V
• Max. Output Voltage12.6 V
• Operating Temperature

  Charging: -20 °C to 45 °C (-4 °F to 131 °F)

  Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

• Battery LifeMore than 500 cycles
• Battery WeightApprox. 3.3 kg (7.3 lb.)
• Extended Dimension236 × 154 × 80 mm (9.3″ × 6.1″ × 3.2″)

Approval

• EMC

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  FCC (47 CFR Part 15, Subpart B);

  IC (ICES-003: Issue 7)

• RF

  CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

  ICASA: same as CE-RED

  FCC ID (47 CFR Part15 Subpart C);

  IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

  MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

• Safety

  CB (IEC 62368-1:2014+A11)

  CE-LVD (EN 62368-1:2014/A11:2017)

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Protection

  Camera: IP67 (IEC 60529-2013)

  Wind resistance 12 level
