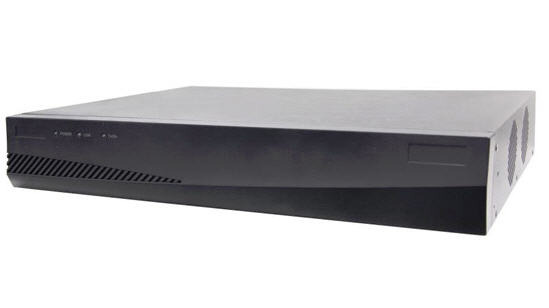

Hikvision DS-6308DI-T Decoder 8ch BNC Output
$2,222.00 inc GST +3 Year Warranty & Support
Features:
- Support variable bit rate and frame rate
- High performance hardware decoding
- Compatible with standard H.264, MPEG4 and Hikvision DVR/DVS/Network Cameras
- Up to 720p resolution decoding
- VGA and composite output simultaneously
- Support variable bit rate and frame rate
- Support dynamic and cycle decoding
- Support DHCP and DDNS
Specifications:
| Video/Audio input | |
| Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1 kΩ) |
| Video/Audio output | |
| VGA output | 4-ch |
| Resolution:1280×1024 /60 Hz, 1280×720 /60 Hz,1024×768 /60 Hz | |
| Video output | 8-ch BNC (1.0 Vp-p, 75 Ω) |
| Decoding resolution | 720P / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Frame rate | 720P: 25 fps (P) / 30 fps (N) |
| Audio output | 8-ch, BNC (Linear, 600 Ω) |
| Stream type | Video, Video & Audio |
| External interface | |
| Network interface | 1, RJ45 10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1 RS-232 interface (for parameters configuration, maintenance , transparent channel); 1 RS-485 |
| interface (for PTZ control) | |
| Alarm in |
8 |
| Alarm out |
8 |
| General | 12 VDC |
| Power supply | ≤ 40 W |
| Consumption | 10 °C ~ +55 °C |
| Working temperature | 10% ~ 90% |
| Working humidity | 440 x 44.5 x 320 mm |
| Dimensions (W × D × H) | ≤ 5 kg |
| Weight(without HDD) |
