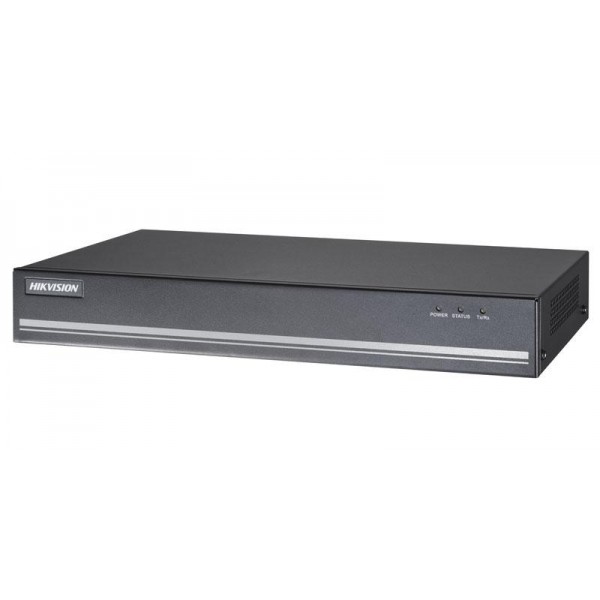

Hikvision DS-6708HFI Encoder 8CH Video & Audio Input

Convert 8 analogue camera outputs into H.264/ MPEG4/MPEG2/MJPEG format with up to 4CIF real time recording using the HIK-6701HFI Encoder. Capable of supporting multiple network protocols and connectable with Network HDD for LAN based recording storage.



HIKVISION CONFIRMED NO LONGER MANUFACTURED.

4CH ENCODER OPTION – https://www.securitywholesalers.com.au/product/hikvision-ds-6704hfi-encoder-1-poe-ethernet-interface-2/

$897.00 inc GST +3 Year Warranty & Support

Features:

  • H.264/MPEG4/MPEG2/MJPEG encoding standards supported
  • Up to 4CIF real-time encoding
  • One PoE network interface for DS-6701/6704HFI models
  • Connectable with network HDD in NAS, IPSAN mode
  • Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.;
  • Multiple PTZ protocols

Specifications:

  • DS-6708HFI
Video/Audio input
Video Compression: H.264/MPEG4/MPEG2/MJPEG
Video input: 8-ch,
BNC (1.0 Vp-p, 75 Ω)
Audio compression: G.711
Audio input: 8-ch,
Line input interface
(2.0 Vp-p, 1 kΩ)
Two-way audio: 1-ch, 3.5 mm audio (2.0 Vp-p, 1 kΩ)
Video/Audio output
Audio output: 1-ch, 3.5mm interface (Linear, 600 Ω)
Encoding resolution: 4CIF/2CIF/CIF/QCIF
Frame rate: 25 fps (P) / 30 fps/N
Video bit rate: 32 Kbps ~ 3072 Kbps, or user defined (Max. 8192 Mbps)
Audio bit rate: 64 Kbps
Dual Stream: Support
Stream Type: Video/ Video&Audio
Network protocols
Protocols Supported: IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM,
SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP,TCP, UDP, IGMP, ICMP,DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, HIKCGI, netFilter
Data storage
Type: NAS, iSCSI, IPSAN
Capacity: Up to 4 TB capacity for each disk, and 32G for microSD storage
External interface
Network interface: 1 RJ-45 10 M / 100 M /1000 Mbps adaptive
Ethernet interface
Serial interface: 1 half-duplex RS-485 interface 1 RS-232 interface
Alarm in: 8
Alarm out: 4
General
Power supply: 12 VDC
Consumption: ≤ 10W
Working temperature: -10°C~+55°C(14°F~131°F)
Working humidity: 10%~90%
Dimension(W×D×H): 315 × 45 × 200mm
Weight(without HDD): ≤ 2 Kg
SKU: SW-DS-6708HFI) Categories: , ,
