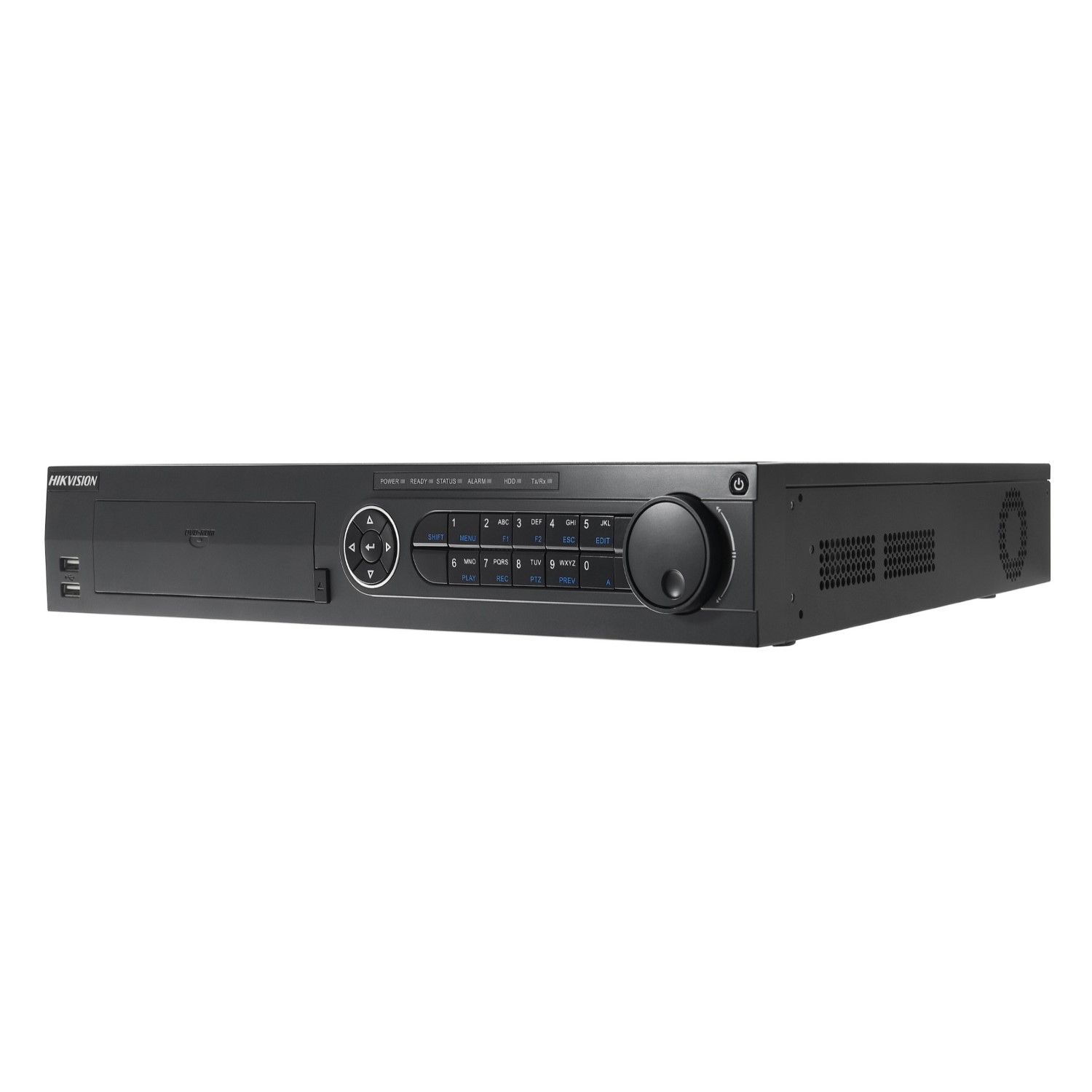

Part of Hikvision’s ‘TVI4.0’ series of digital video recorders, the HIK-7332HUHI-K4 is a 32 channel DVR that has been designed to support up to 5MP TVI cameras at 12 frames per second over coxial cable. Offering compatibility with multiple video formats ranging from standard definition analogue, 2MP AHD, 2MP HD-CVI, 5MP HD-TVI or up to forty 8MP IP, this DVR supports H.265/H.265+ intelligent video compression technology which dramatically reduces bandwidth and storage requirements by up to 50 percent. Additionally, this machine provides 32 BNC input interfaces and is capable of providing 4K(UHD) video outputs via HDMI. Other benefits of TVI 4.0 include: the absence of video delay in live viewing, bi-directional signaling, and long video transmission range of up to 800m over coaxial cable. All of this adds up to an incredible breakthrough in the evolution of analogue video transmission.
Specification Sheet HIK-7332HUHI-K4 Datasheet
- 32 channel HD-TVI 4.0 DVR or up to 40 channel IP – 8MP max
- H.265/H.265+ encoding
- 5MP at 12fps, 4MP at 15fps, 3MP at 18fps, 2MP at 25fps
- Up to 800m for 1080p and 1200m for 720p
- 4x HDD bays
- HDMI output up to 4K resolution
- VGA and CVBS output
- Mobile application and PC client
- P2P – quick remote access setup
