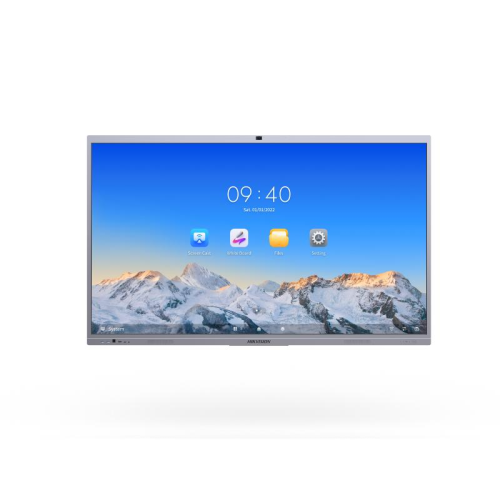

Hikvision DS-D5C75RB/B 75-inch 4K Interactive Touch Screen Display Monitor

Product Model

• Product Model DS-D5C75RB/B

Display

• Screen Size 75 inch
• BacklightDLED
• Pixel Pitch0.14325(H) × 0.42975(V) mm
• Resolution3840 × 2160 @60 Hz
• Brightness400 cd/m² （Typ.）
• Color Depth10 bit
• Display Color1.07G
• Response Time5 ms
• Panel TypeVA
• Contrast Ratio

  5000:1 (Static)

  30,000:1 (Dynamic)

• Color Gamut 72% NTSC（CIE1931）（Typ.）
• Refresh Rate 60 Hz
• Viewing Angle 178°(H)/178°(V)
• Aspect Ratio16:9
• Surface Hardness

  9H (Pencil)

  7 (Mohs)

• Surface Glass Anti-Glare  Glass
• Surface Haze25%Haze
• Glass Bonding MethodZero Lamination
• Display Area1650.24mm x 928.26mm
• Working Duration7 × 16H
• Transmittance88% ± 3
• Lifespan50,000 hours

Touch

• TypeInfrared Touch Screen
• Touch PointUp to 50 point multi-touch
• Touch Response Time≤ 2 ms
• Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
• Touch Precision± 0.5 mm (≥ 90% touching area)
• Touch Resolution32767 × 32767

Built-In System

• Operation System Android 13.0
• Memory 8 GB
• Built-In Storage128 GB
• ProcessorQuad-core Cortex-A76 × 4（2.4GHz）and quad-core Cortex-A55 × 4（1.8GHz）
• GPUMali-G610 MC4
• HDCP Version2.3

Camera

• Pixel Pixel 48MP for Photos & 8 MP for Video
• Camera FunctionSupport intelligent switching between Android system, OPS, and PC.
• Field Angle120°(diagonal), 110°(horizontal), 75°(vertical)
• Distortion≤2.5%
• Camera Resolution RatioUp to 4K

Microphone

• SpecificationOmni-directional 8-array layout
• Mic FunctionEcho reduction and smart noise-cancellation
• Voice Distance12 m
• Sampling Rate32 K
• Mic Sampling Rate16 bit

Internal Function

• LoudspeakerBuilt-in 2 ×20 W+25W loudspeaker;
• BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
• NFCSupport screen mirroring by Android phones
• Light Sensor Yes
• Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction and distortion correction for lens.
• Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.

Interface

• Video & Audio InputHDMI In （HDMI 2.0）× 3, VGA In x 1, DP In （DP 1.2）× 1, Audio In × 1
• Video & Audio OutputHDMI Out （HDMI 2.0）× 1, Audio Out × 1, SPDIF Out × 1
• Control InterfaceTOUCH-USB 3.0 × 3, RS232 × 1
• Network Interface

  LAN (1000 Mbps) × 2

  WIFI AP&Station，2.4G/5G

  WIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2×2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

• Data Transmission Interface USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

• Power
• Power Supply100 to 240 VAC, 50/60 Hz
• Standby Consumption≤ 0.5 W
• Average Consumption< 150W

• General
• VESA800 mm × 400 mm （4 × M8-25 mm）
• Product Dimensions1713.2 mm × 1034.5 mm × 82.5 mm
• AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
• Package Dimensions (W × H × D)1937 mm × 264 mm × 1222 mm
• Net Weight51.23 kg
• Gross Weight67.62 kg

Working Environment

• Working Temperature 0 °C to 40 °C (32 °F to 104°F)
• Working Humidity10%~90% RH
