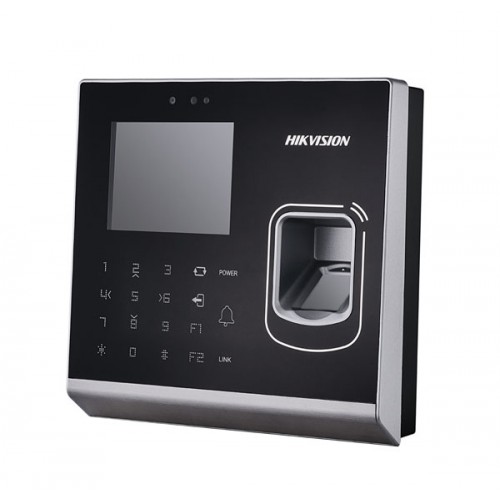

Hikvision DS-K1T201MF-CN Single Door Stand Alone Access Control Terminal with Fingerprint Reader
$630.00 inc GST +3 Year Warranty & Support
“Stand Alone Access Control Terminal with Fingerprint Reader”
DS-K1T201 series are optical IP-based fingerprint access control terminal with multiple advanced technologies including fingerprint recognition, face detection, Wi-Fi, smart card recognition, LCD display screen, and picture capturing technology. It is designed with a 2.8-inch LCD display screen, and 2MP HD camera. It is equipped with optical fingerprint recognition module (supporting 1:1 mode and 1:N mode), and supports offline operation.
* Supports Local activation
* Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
* Gets offline events: Avoids events losing
* Touch mode and blue light display technique for keypad
* Stand-alone settings for the terminal
* 2.8-inch LCD display screen to display the time, the date, etc
* Max. 100,000 valid card No., and Max. 300,000 access control events storage
* Communication via wired network (TCP/TP) or Wi-Fi
* Face detection and picture capturing function implemented by built-in 2MP camera
* Supports multiple authentication modes (card, fingerprint, card + fingerprint, card + password, fingerprint + password,
card + fingerprint + password, and so on)
* Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
* Supports Mifare card reading
* 2.8-inch LCD display screen to display the time, the date, etc
* Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
* Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
* Gets offline events: Avoids events losing
* Touch mode and blue light display technique for keypad
* Stand-alone settings for the terminal
* 2.8-inch LCD display screen to display the time, the date, etc
* Max. 100,000 valid card No., and Max. 300,000 access control events storage
* Communication via wired network (TCP/TP) or Wi-Fi
* Face detection and picture capturing function implemented by built-in 2MP camera
* Supports multiple authentication modes (card, fingerprint, card + fingerprint, card + password, fingerprint + password,
card + fingerprint + password, and so on)
* Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
* Supports Mifare card reading
* 2.8-inch LCD display screen to display the time, the date, etc
* Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
Supplied with 12VDC Power supply
Can be programmed via keypad on the terminal or programmed and managed by iVMS4200 Software.
| System Parameters | ||
|---|---|---|
| Card Reading Frequency: | Mifare Card (DS-K1T105M/M-C): 13.56MHz | |
| Valid Card/ Swiping Record: | 100,000 Cards and 300,000 Swiping Card Records | |
| Operation System: | Linux | |
| Storage: | 256M Storage | |
| Card Reading Mode: | Supports Mifare card reading, including card No. reading & writing function (DS-K1T105M/M-C) | |
| Built-in Micro SD Card: | Max.32G | |
| Camera: | 2MP | |
| Processor: | ≥1GHz, 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Accessible Card Reader: | Card Reader | |
| Communication Mode: | TCP/IP, Wi-Fi, RS-485, and Wigand 26/34 (under the card reader mode only) | |
| Output Interface: | Lock Relay × 1, Alarm Relay × 1 | |
| Transmission Rate: | TCP/IP, WIFI: 10/100Mbps Self-adaptive, RS-485: 19200 bps-N-8-1 |
|
| Input Interface: | Tamper Alarm × 1, Exit Button × 1, Door Sensor × 1, Alarm Input × 2 | |
|
General |
||
|---|---|---|
| LCD Screen: | 320×240 LCD-TFT Display Screen | |
| Working Current: | 500mA ( without Locks) | |
| Key Board: | Keyboard (Back light) | |
| Power Supply: | 12VDC | |
| Audio: | Loudspeaker | |
| LED Indicator: | Power/Status | |
| Certification: | CE, FCC | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 122mm × 82mm × 23mm (4.8” × 3.2” × 0.9″) | |
| Weight: | 280g (9.88lb) | |
